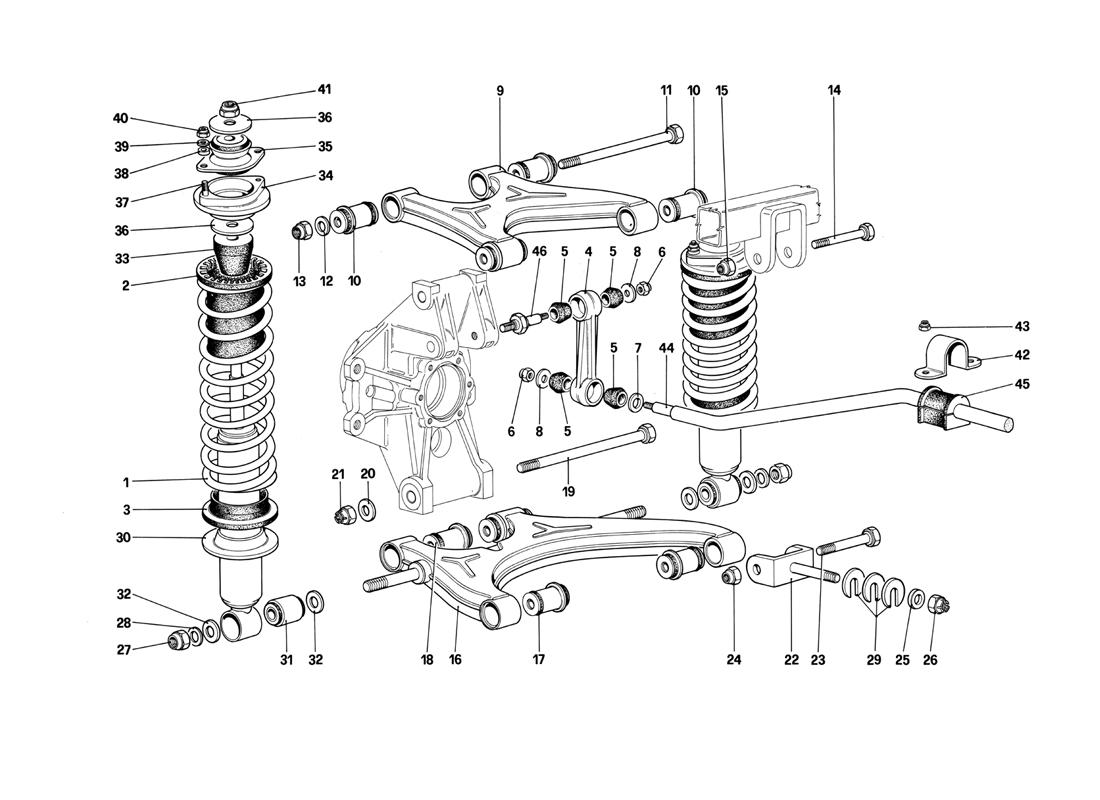

REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (STARTING FROM CAR NO.75997)

Go to Split View

REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (STARTING FROM CAR NO.75997)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124982 *Qty: 4 Suspension spring Call
Location: 2 Prev | Next Part: 103263 *Qty: 4 Upper spacer $34.33
Location: 3 Prev | Next Part: 103264 *Qty: 4 Lower spacer $50.11
Location: 4 Prev | Next Part: 134862 *Qty: 2 Rod link $19.48
Location: 5 Prev | Next Part: 125061 *Qty: 8 Grommet $6.80
Location: 6 Prev | Next Part: 16104421 *Qty: 4 Selflocking nut Superseded
Location: 7 Prev | Next Part: 10520021 *Qty: 2 Washer Superseded
Location: 8 Prev | Next Part: 124338 *Qty: 4 Washer $3.69
Location: 9 Prev | Next Part: 134814 *Qty: 2 Upper lever $401.58
Location: 10 Prev | Next Part: 111616 *Qty: 8 Flamblock Superseded
Location: 11 Prev | Next Part: 134897 *Qty: 2 Screw $92.61
Location: 12 Prev | Next Part: 12601579 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 16105121 *Qty: 2 Selflocking nut Superseded
Location: 14 Prev | Next Part: 106419 *Qty: 4 Screw $23.46
Location: 15 Prev | Next Part: 16105121 *Qty: 4 Selflocking nut Superseded
Location: 16 Prev | Next Part: 134835 *Qty: 2 Lower lever Superseded
Location: 17 Prev | Next Part: 134883 *Qty: 4 Flamblock Superseded
Location: 18 Prev | Next Part: 120813 *Qty: 4 Flamblock Superseded
Location: 19 Prev | Next Part: 120815 *Qty: 2 Screw $77.74
Location: 20 Prev | Next Part: 105434 *Qty: 2 Washer $27.37
Location: 21 Prev | Next Part: 101040 *Qty: 2 Selfcking nut $4.42
Location: 22 Prev | Next Part: 116690 *Qty: 2 Lower fork
Not for B1
Superseded
Location: 22 Prev | Next Part: 116690 *Qty: 4 Lower fork
For B1
Superseded
Location: 22 Prev | Next Part: 125889 *Qty: 2 Lower fork
Not for B1
$112.07
Location: 23 Prev | Next Part: 106422 *Qty: 4 Screw $37.06
Location: 24 Prev | Next Part: 12575821 *Qty: 4 Selflocking nut Superseded
Location: 25 Prev | Next Part: 101040 *Qty: 4 Nut $4.42
Location: 26 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 27 Prev | Next Part: 12575821 *Qty: 4 Selflocking nut Superseded
Location: 28 Prev | Next Part: 106856 *Qty: 4 Washer Superseded
Location: 29 Prev | Next Part: 101039 *Qty: 4 Shim 1 mm. thick $2.00
Location: 29 Prev | Next Part: 107338 *Qty: 4 Shim 1,5 mm. thick $2.00
Location: 29 Prev | Next Part: 107339 *Qty: 4 Shim 2 mm. thick $2.00
Location: 29 Prev | Next Part: 107340 *Qty: 4 Shim 2,5 mm. thick $2.00
Location: 29 Prev | Next Part: 107341 *Qty: 4 Shim 3 mm. thickness $2.00
Location: 29 Prev | Next Part: 107342 *Qty: 4 Shim 3,25 mm. thickness $1.18
Location: 30 Prev | Next Part: 128430 *Qty: 4 Shock absorber Call
Location: 31 Prev | Next Part: 125926 *Qty: 4 Estendblock $128.71
Location: 32 Prev | Next Part: 128509 *Qty: 8 Washer $10.51
Location: 33 Prev | Next Part: 116358 *Qty: 4 Pad $58.94
Location: 34 Prev | Next Part: 116861 *Qty: 4 Securing cup $92.21
Location: 35 Prev | Next Part: 116864 *Qty: 4 Hyperblock $287.77
Location: 36 Prev | Next Part: 116862 *Qty: 8 Washer $6.33
Location: 37 Prev | Next Part: 13543521 *Qty: 8 Stud Superseded
Location: 38 Prev | Next Part: 113113 *Qty: 4 Spacer $1.71
Location: 39 Prev | Next Part: 12646721 *Qty: 4 Washer Superseded
Location: 40 Prev | Next Part: 16104121 *Qty: 8 Selflocking nut Superseded
Location: 41 Prev | Next Part: 16105121 *Qty: 4 Selflocking nut Superseded
Location: 42 Prev | Next Part: 104417 *Qty: 2 Rod retaining U bolt $26.52
Location: 43 Prev | Next Part: 12575621 *Qty: 4 Selflocking nut Superseded
Location: 44 Prev | Next Part: 136965 *Qty: 1 Rod link $1,188.58
Location: 45 Prev | Next Part: 118276 *Qty: 2 Rod retaining pad $21.81
Location: 46 Prev | Next Part: 136437 *Qty: 2 Pin $30.23

* Quantity shown indicates the number of pieces used in the diagram.
