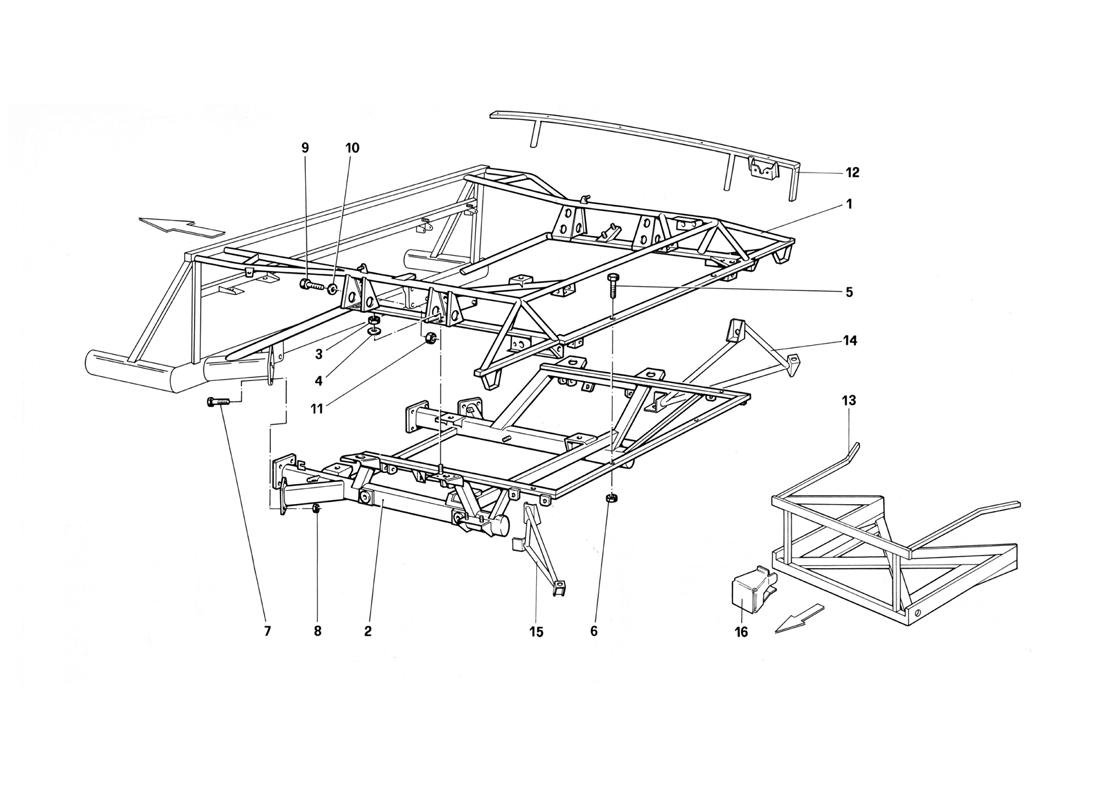

REAR FRAME

Go to Split View

REAR FRAME

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 130841 *Qty: 1 Rear frame
For B1 and GD1
$2,127.53
Location: 1 Prev | Next Part: 127912 *Qty: 1 Rear frame
For US
$2,985.88
Location: 1 Prev | Next Part: 131704 *Qty: 1 Rear frame
For CDN
$1,581.66
Location: 1 Prev | Next Part: 143215 *Qty: 1 Rear frame
For CAT. - CH - GDE
$4,049.26
Location: 2 Prev | Next Part: 144156 *Qty: 1 Removable frame
For GDE
$5,193.22
Location: 2 Prev | Next Part: 124578 *Qty: 1 Removable frame
For GD1
$4,043.41
Location: 2 Prev | Next Part: 132510 *Qty: 1 Removable frame
For CAT. - BE and CH
$7,107.46
Location: 2 Prev | Next Part: 131703 *Qty: 1 Removable frame
For CDN
$2,963.82
Location: 2 Prev | Next Part: 127911 *Qty: 1 Removable frame
For US
$3,895.98
Location: 2 Prev | Next Part: 124576 *Qty: 1 Removable frame
For B1
$3,307.48
Location: 3 Prev | Next Part: 12574511 *Qty: 8 Nut Superseded
Location: 4 Prev | Next Part: 10730521 *Qty: 8 Washer $2.92
Location: 5 Prev | Next Part: 15541211 *Qty: 4 Screw Call
Location: 6 Prev | Next Part: 16105011 *Qty: 4 Selflocking nut Superseded
Location: 7 Prev | Next Part: 15540621 *Qty: 8 Screw $2.26
Location: 8 Prev | Next Part: 16105011 *Qty: 8 Selflocking nut Superseded
Location: 9 Prev | Next Part: 15540521 *Qty: 8 Screw $0.90
Location: 10 Prev | Next Part: 12646921 *Qty: 8 Washer $0.90
Location: 11 Prev | Next Part: 16105011 *Qty: 8 Nut Superseded
Location: 12 Prev | Next Part: 61543300 *Qty: 1 Rear mudguard support
RH
$1,287.91
Location: 12 Prev | Next Part: 61543400 *Qty: 1 Rear mudguard support
LH
$1,287.91
Location: 13 Prev | Next Part: 131665 *Qty: 1 Front frame
For CDN
$1,086.53
Location: 13 Prev | Next Part: 131239 *Qty: 1 Front frame
Not for CDN
$1,523.07
Location: 14 Prev | Next Part: 130962 *Qty: 1 RH pad support
For CDN
$598.36
Location: 15 Prev | Next Part: 130963 *Qty: 1 LH pad support
For CDN
$598.36
Location: 16 Prev | Next Part: 61565700 *Qty: 1 Bracket for LH pad
For CDN
$45.83
Location: 16 Prev | Next Part: 61565600 *Qty: 1 Bracket for RH pad
For CDN
$130.92

* Quantity shown indicates the number of pieces used in the diagram.
