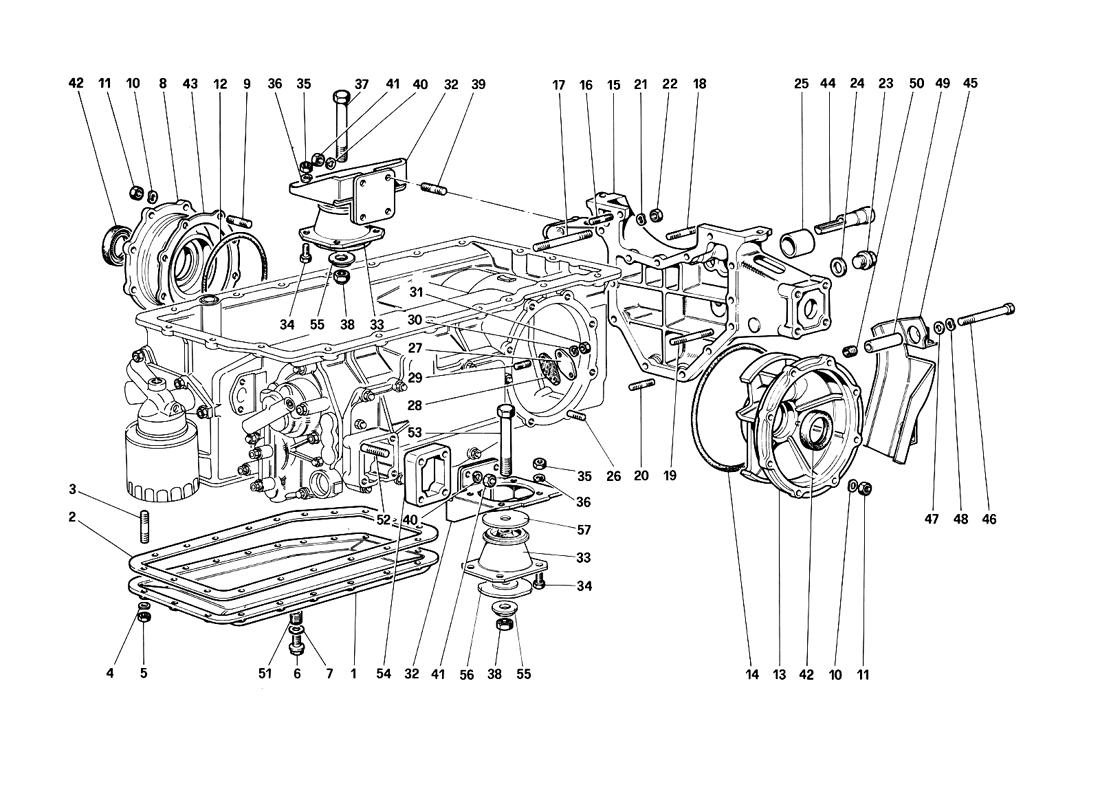

GEARBOX - MOUNTING AND COVERS

Go to Split View

GEARBOX - MOUNTING AND COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109436 *Qty: 1 Oil sump cover Superseded
Location: 2 Prev | Next Part: 146189 *Qty: 1 Gasket
Without Amianthus
$26.58
Location: 2 Prev | Next Part: 104674 *Qty: 1 Gasket
With Amianthus
Superseded
Location: 3 Prev | Next Part: 13541121 *Qty: 18 Stud Superseded
Location: 4 Prev | Next Part: 11197771 *Qty: 18 Washer Superseded
Location: 5 Prev | Next Part: 15896221 *Qty: 18 Nut Superseded
Location: 6 Prev | Next Part: 103974 *Qty: 1 Engine oil drain plug $34.68
Location: 7 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 8 Prev | Next Part: 125459 *Qty: 1 Differential R.H. side cover $2,451.43
Location: 9 Prev | Next Part: 13546521 *Qty: 8 Stud Call
Location: 10 Prev | Next Part: 12601471 *Qty: 16 Washer Superseded
Location: 11 Prev | Next Part: 12164721 *Qty: 16 Nut Superseded
Location: 12 Prev | Next Part: 103017 *Qty: 1 Seal ring $17.86
Location: 13 Prev | Next Part: 109629 *Qty: 1 Differential R.H. side cover Superseded
Location: 14 Prev | Next Part: 109640 *Qty: 1 Seal ring $11.06
Location: 15 Prev | Next Part: 109603 *Qty: 1 Intermediate cover $491.17
Location: 16 Prev | Next Part: 13543321 *Qty: 5 Stud Superseded
Location: 17 Prev | Next Part: 13970821 *Qty: 2 Stud $0.90
Location: 18 Prev | Next Part: 13544141 *Qty: 2 Stud Call
Location: 19 Prev | Next Part: 13544421 *Qty: 3 Stud $0.90
Location: 20 Prev | Next Part: 13543421 *Qty: 4 Stud Superseded
Location: 21 Prev | Next Part: 12601371 *Qty: 16 Washer Superseded
Location: 22 Prev | Next Part: 16100821 *Qty: 16 Nut $3.57
Location: 23 Prev | Next Part: 10275001 *Qty: 1 Oil level inspection plug Superseded
Location: 24 Prev | Next Part: 10213400 *Qty: 1 Gasket Call
Location: 25 Prev | Next Part: 109335 *Qty: 1 Bushing between interm. body and clutch housing $20.30
Location: 26 Prev | Next Part: 13546321 *Qty: 8 Stud Superseded
Location: 27 Prev | Next Part: 104772 *Qty: 1 Range for oil ports $11.56
Location: 28 Prev | Next Part: 146190 *Qty: 1 Gasket
Without Amianthus
$1.38
Location: 28 Prev | Next Part: 104773 *Qty: 1 Gasket
With Amianthus
Superseded
Location: 29 Prev | Next Part: 11500121 *Qty: 2 Stud Superseded
Location: 30 Prev | Next Part: 10516471 *Qty: 2 Washer Superseded
Location: 31 Prev | Next Part: 15896221 *Qty: 2 Nut Superseded
Location: 32 Prev | Next Part: 105642 *Qty: 4 Engine support $38.88
Location: 33 Prev | Next Part: 125485 *Qty: 4 Rubber pad complete Superseded
Location: 34 Prev | Next Part: 15970621 *Qty: 16 Bolt Call
Location: 35 Prev | Next Part: 12164711 *Qty: 16 Nut Superseded
Location: 36 Prev | Next Part: 106853 *Qty: 16 Washer Superseded
Location: 37 Prev | Next Part: 11369621 *Qty: 2 Rear pads security bolt $5.88
Location: 38 Prev | Next Part: 12575911 *Qty: 4 Nut Call
Location: 39 Prev | Next Part: 13546321 *Qty: 8 Stud Superseded
Location: 40 Prev | Next Part: 10516871 *Qty: 16 Washer $0.90
Location: 41 Prev | Next Part: 12164721 *Qty: 16 Nut Superseded
Location: 42 Prev | Next Part: 141509 *Qty: 1 L.H. seal ring on side covers
After exhaustion no. 125077
$50.49
Location: 42 Prev | Next Part: 133628 *Qty: 1 R.H. seal ring on side covers
After exhaustion no. 125077
$124.99
Location: 42 Prev | Next Part: 125077 *Qty: 2 R.H. and LH. seal ring on side covers
Until exhaustion
Call
Location: 43 Prev | Next Part: 130991 *Qty: 1 Spacer on R.H. side cover, thickness 1,9 mm. $119.86
Location: 43 Prev | Next Part: 130988 *Qty: 1 Spacer on R.H. side cover, thickness 1,3 mm. $321.47
Location: 43 Prev | Next Part: 130989 *Qty: 1 Spacer on R.H. side cover, thickness 1,5 mm. $163.87
Location: 43 Prev | Next Part: 103232 *Qty: 1 Spacer on R.H. side cover, thickness 1,638 mm. Superseded
Location: 43 Prev | Next Part: 103430 *Qty: 1 Spacer on R.H. side cover, thickness 1,8 mm. Call
Location: 43 Prev | Next Part: 103431 *Qty: 1 Spacer on R.H. side cover, thickness 2,0 mm. $64.27
Location: 43 Prev | Next Part: 103429 *Qty: 1 Spacer on R.H. side cover, thickness 1,6 mm. $51.72
Location: 43 Prev | Next Part: 103428 *Qty: 1 Spacer on R.H. side cover, thickness 1,4 mm. $176.91
Location: 43 Prev | Next Part: 103427 *Qty: 1 Spacer on R.H. side cover, thickness 1,2 mm. $179.13
Location: 43 Prev | Next Part: 130990 *Qty: 1 Spacer on R.H. side cover, thickness 1,7 mm. $68.19
Location: 44 Prev | Next Part: 109339 *Qty: 1 Oil pipe $30.12
Location: 45 Prev | Next Part: 109683 *Qty: 1 Oil conveyor $55.88
Location: 46 Prev | Next Part: 11032321 *Qty: 2 Screw $0.90
Location: 47 Prev | Next Part: 109684 *Qty: 2 Washer Superseded
Location: 48 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 49 Prev | Next Part: 109682 *Qty: 2 Conveyor supporting stud $7.36
Location: 50 Prev | Next Part: 13524170 *Qty: 2 Heli-coil Superseded
Location: 51 Prev | Next Part: 111352 *Qty: 1 Heli-coil $15.45
Location: 52 Prev | Next Part: 13546921 *Qty: 8 Stud $0.90
Location: 53 Prev | Next Part: 11369621 *Qty: 2 Front pads securing bolt $5.88
Location: 54 Prev | Next Part: 107530 *Qty: 2 Spacer for pads support $264.40
Location: 55 Prev | Next Part: 124731 *Qty: 4 Washer securing front rubber pads $4.47
Location: 56 Prev | Next Part: 130972 *Qty: 4 Lower plate Superseded
Location: 57 Prev | Next Part: 130973 *Qty: 4 Upper plate $90.59

* Quantity shown indicates the number of pieces used in the diagram.
