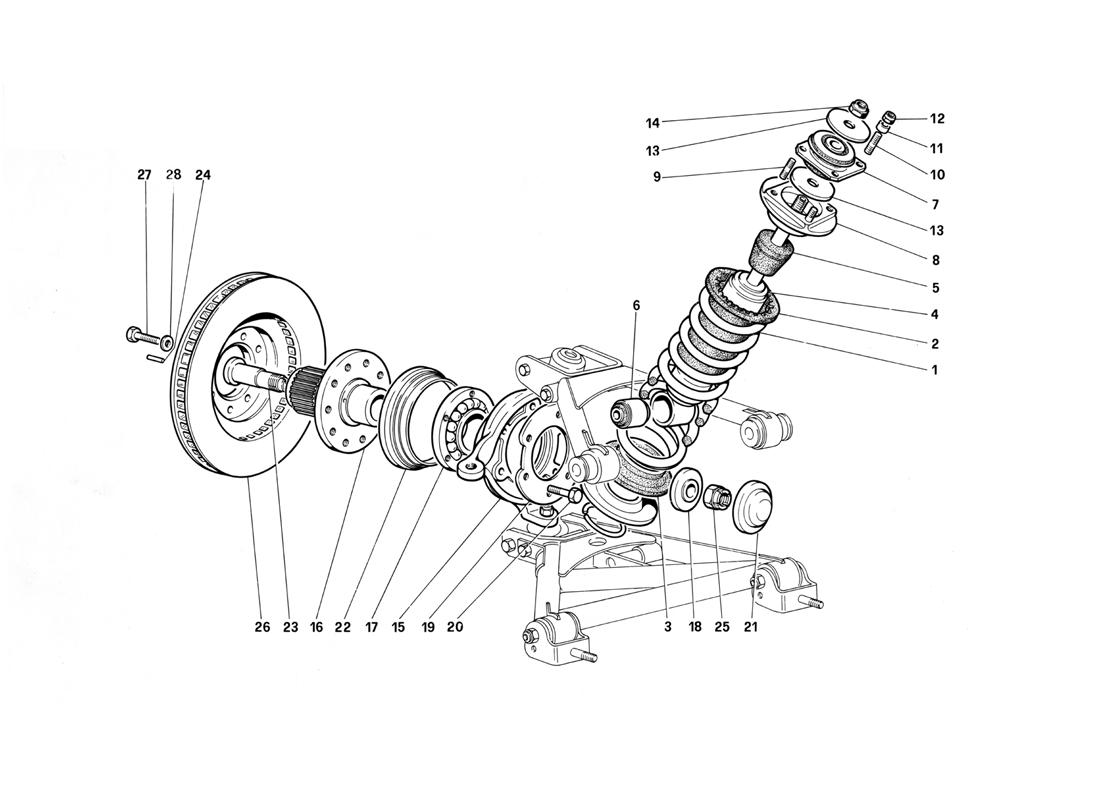

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75995)

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75995)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124981 *Qty: 2 Suspension spring $572.06
Location: 2 Prev | Next Part: 113582 *Qty: 2 Upper spacer $114.97
Location: 3 Prev | Next Part: 113581 *Qty: 2 Lower spacer $12.86
Location: 4 Prev | Next Part: 125048 *Qty: 2 Shock absorber Call
Location: 5 Prev | Next Part: 116358 *Qty: 2 Rubber rebound bumper $58.94
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estendblock $19.46
Location: 7 Prev | Next Part: 114812 *Qty: 2 Hyperblock $136.09
Location: 8 Prev | Next Part: 114809 *Qty: 2 Spring retaining cup Superseded
Location: 9 Prev | Next Part: 13543321 *Qty: 4 Stud Superseded
Location: 10 Prev | Next Part: 13543621 *Qty: 4 Stud Superseded
Location: 11 Prev | Next Part: 13605811 *Qty: 4 Spacer $1.16
Location: 12 Prev | Next Part: 16104121 *Qty: 8 Selflocking nut Superseded
Location: 13 Prev | Next Part: 114815 *Qty: 4 Washer $1.87
Location: 14 Prev | Next Part: 16105121 *Qty: 2 Selflocking nut Superseded
Location: 15 Prev | Next Part: 116721 *Qty: 1 Right stub axle $4,957.00
Location: 15 Prev | Next Part: 116722 *Qty: 1 Left stub axle $1,535.55
Location: 16 Prev | Next Part: 125723 *Qty: 1 Left front wheel hub $372.71
Location: 16 Prev | Next Part: 125724 *Qty: 1 Right front wheel hub $923.93
Location: 17 Prev | Next Part: 112799 *Qty: 2 Bearing Call
Location: 18 Prev | Next Part: 124510 *Qty: 2 Washer $11.04
Location: 19 Prev | Next Part: 118522 *Qty: 2 Washer $10.37
Location: 20 Prev | Next Part: 14238731 *Qty: 12 Screw $0.90
Location: 21 Prev | Next Part: 124511 *Qty: 2 Bearing cover $58.39
Location: 22 Prev | Next Part: 120066 *Qty: 2 Bearing cover $57.39
Location: 23 Prev | Next Part: 125725 *Qty: 2 Stay bolt for bearing $142.87
Location: 24 Prev | Next Part: 13909870 *Qty: 2 Pin $0.90
Location: 25 Prev | Next Part: 124642 *Qty: 2 Nut $29.92
Location: 26 Prev | Next Part: 125734 *Qty: 2 Brake disc $337.61
Location: 27 Prev | Next Part: 125736 *Qty: 20 Screw $3.90
Location: 28 Prev | Next Part: 106853 *Qty: 20 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
