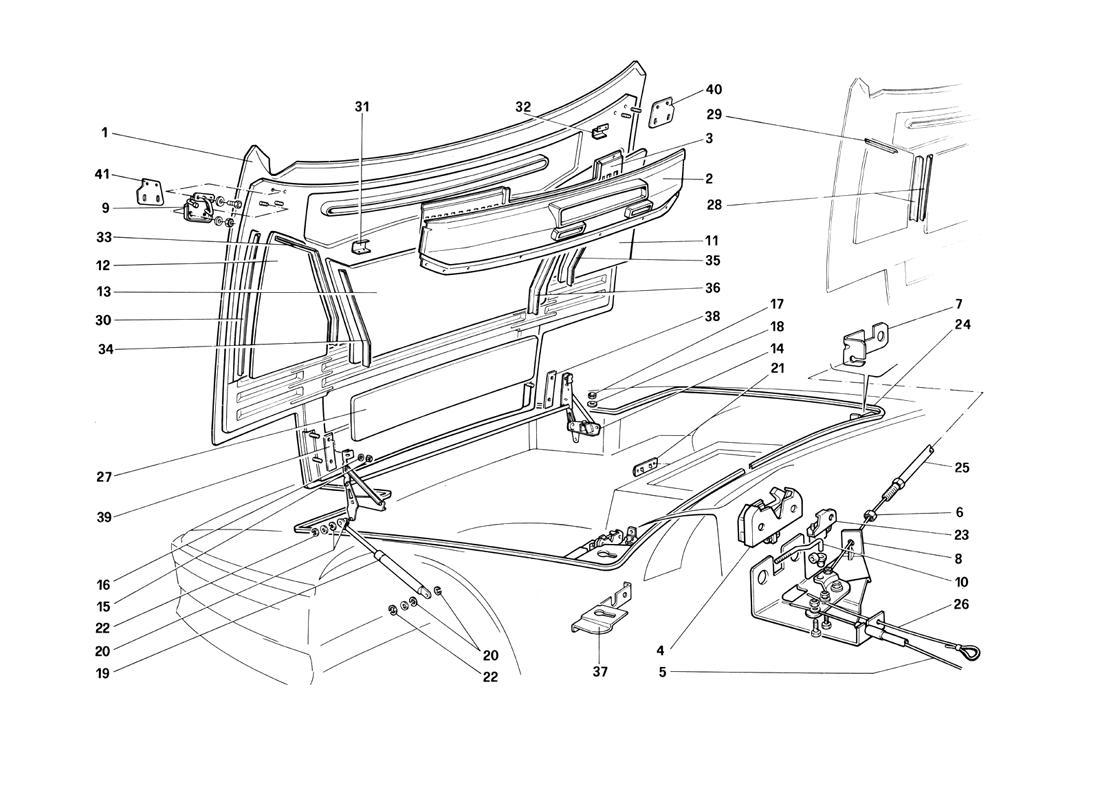

FRONT HOOD

Go to Split View

FRONT HOOD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61495400 *Qty: 1 Front bonnet RHD $6,557.57
Location: 1 Prev | Next Part: 61495500 *Qty: 1 Front bonnet LHD $7,753.87
Location: 2 Prev | Next Part: 61544000 *Qty: 1 Water shield panel, LHD
Until car no. 75133
Call
Location: 2 Prev | Next Part: 61570000 *Qty: 1 Water shield panel, LHD
From car no. 75134
Call
Location: 2 Prev | Next Part: 61546000 *Qty: 1 Water shield panel, RHD
Until car no. 75133
$158.83
Location: 2 Prev | Next Part: 61570800 *Qty: 1 Water shield panel, RHD
From car no. 75134
Superseded
Location: 3 Prev | Next Part: 61558500 *Qty: 1 Grill
With protection net - After exhaustion P.N. 61495700
$84.59
Location: 3 Prev | Next Part: 61495700 *Qty: 1 Grill
Until exhausted
Superseded
Location: 4 Prev | Next Part: 61497600 *Qty: 2 Bonnetlock Superseded
Location: 5 Prev | Next Part: 61497300 *Qty: 1 Cable for opening bonnet $60.27
Location: 6 Prev | Next Part: 14084211 *Qty: 1 Nut $0.90
Location: 7 Prev | Next Part: 61495900 *Qty: 1 R.H. sheath support plate $64.27
Location: 8 Prev | Next Part: 61496000 *Qty: 1 L.H. sheath support plate $59.03
Location: 9 Prev | Next Part: 61496100 *Qty: 1 Lock striker left
Until car no. 75133 (75447 for US version)
$93.85
Location: 9 Prev | Next Part: 61571800 *Qty: 1 Lock striker left
From car no. 75134 (75448 for US version)
$86.23
Location: 9 Prev | Next Part: 61541400 *Qty: 1 Lock striker right
Until car no. 75133 (75447 for US version)
Superseded
Location: 9 Prev | Next Part: 61571700 *Qty: 1 Lock striker right
From car no. 75134 (75448 for US version)
$84.75
Location: 10 Prev | Next Part: 61532900 *Qty: 1 R.H. striker rod (RHD) $10.87
Location: 10 Prev | Next Part: 61496200 *Qty: 1 L.H. striker rod (LHD) $14.00
Location: 11 Prev | Next Part: 61496300 *Qty: 1 Right sound insulation
Until car no. 75133 (75447 for US version)
Call
Location: 11 Prev | Next Part: 61570200 *Qty: 1 Right sound insulation
From car no. 75134 (75448 for US version)
Call
Location: 12 Prev | Next Part: 61496500 *Qty: 1 Left sound insulation
Until car no. 75133 (75447 for US version)
Superseded
Location: 12 Prev | Next Part: 61570300 *Qty: 1 Left sound insulation
From car no. 75134 (75448 for US version)
Call
Location: 13 Prev | Next Part: 61548700 *Qty: 1 Central sound insulation
Until car no. 75133 (75447 for US version)
Superseded
Location: 13 Prev | Next Part: 61570100 *Qty: 1 Central sound insulation
From car N. 75134 (75448 for US version)
Call
Location: 14 Prev | Next Part: 61496600 *Qty: 1 Complete hinge $2,363.02
Location: 15 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 17 Prev | Next Part: 14084411 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12647001 *Qty: 4 Washer Superseded
Location: 19 Prev | Next Part: 61496700 *Qty: 2 Support
Until car no. 76000
Superseded
Location: 19 Prev | Next Part: 61571600 *Qty: 2 Support
From car no. 76001
Call
Location: 20 Prev | Next Part: 12601371 *Qty: 8 Spring washer Superseded
Location: 21 Prev | Next Part: 61647200 *Qty: 1 Lamp $78.40
Location: 22 Prev | Next Part: 11087976 *Qty: 4 Circlip Superseded
Location: 23 Prev | Next Part: 61496900 *Qty: 2 Warning light control Superseded
Location: 24 Prev | Next Part: 61497000 *Qty: 1 Bonnet gasket Call
Location: 25 Prev | Next Part: 61497100 *Qty: 1 Right lock cable $46.30
Location: 26 Prev | Next Part: 61497200 *Qty: 1 Emergency cable $13.66
Location: 27 Prev | Next Part: 61548800 *Qty: 1 Sound insulation, central lower $174.04
Location: 28 Prev | Next Part: 61563400 *Qty: 4 Central angular (1 st type) $27.31
Location: 29 Prev | Next Part: 61563500 *Qty: 1 Angular, RH upper (1st type) $35.36
Location: 29 Prev | Next Part: 61563600 *Qty: 1 Angular, LH upper (1st type) $35.36
Location: 30 Prev | Next Part: 61563200 *Qty: 1 RH angular $84.59
Location: 30 Prev | Next Part: 61563300 *Qty: 1 LH angular $84.59
Location: 31 Prev | Next Part: 61546600 *Qty: 4 Clip for grille $3.50
Location: 32 Prev | Next Part: 61546500 *Qty: 4 Bracket for rear grille $35.56
Location: 33 Prev | Next Part: 61572000 *Qty: 1 Angular (last type) $13.85
Location: 34 Prev | Next Part: 61572100 *Qty: 1 Angular (last type) Call
Location: 35 Prev | Next Part: 61572200 *Qty: 1 Angular (last type) $13.85
Location: 36 Prev | Next Part: 61572300 *Qty: 1 Angular (last type) $13.85
Location: 37 Prev | Next Part: 61577800 *Qty: 1 L.H. bracket for lock $49.73
Location: 37 Prev | Next Part: 61577700 *Qty: 1 R.H. bracket for lock $49.73
Location: 38 Prev | Next Part: 61579800 *Qty: 1 Zincfoit, R.H. Call
Location: 39 Prev | Next Part: 61579900 *Qty: 1 Zincfoil, L.H. Call
Location: 40 Prev | Next Part: 61580000 *Qty: 1 Zincfoil, R.H. Call
Location: 41 Prev | Next Part: 61580100 *Qty: 1 Zincfoil, L.H. Call

* Quantity shown indicates the number of pieces used in the diagram.
