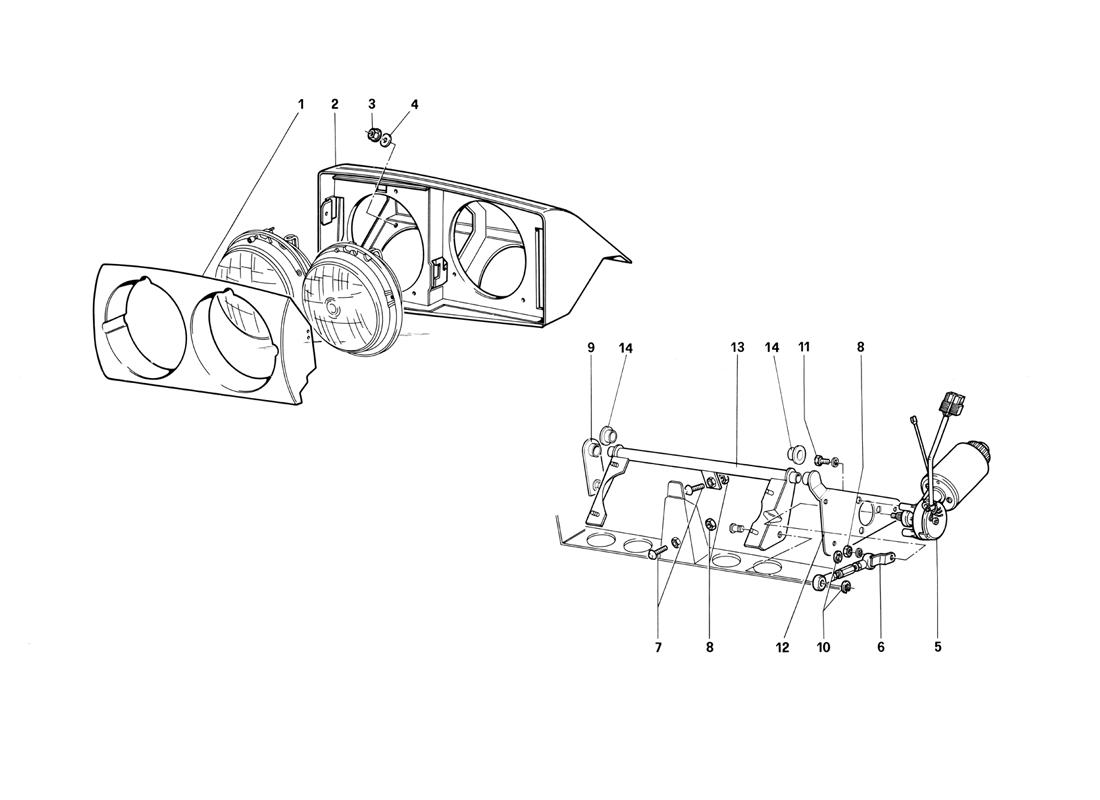

FRONT HEADLIGHT LIFTING DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61527300 *Qty: 1 Left headlamp frame Call
Location: 1 Prev | Next Part: 61527200 *Qty: 1 Right headlamp frame Call
Location: 2 Prev | Next Part: 61527400 *Qty: 1 Housing for right headlamp flap Call
Location: 2 Prev | Next Part: 61527500 *Qty: 1 Housingfor left headlamp flap Call
Location: 3 Prev | Next Part: 14084011 *Qty: 8 Nut $0.90
Location: 4 Prev | Next Part: 10520101 *Qty: 8 Washer Superseded
Location: 5 Prev | Next Part: 60727500 *Qty: 1 Lifting motor for right headlamp Superseded
Location: 5 Prev | Next Part: 60727600 *Qty: 1 Lifting motor for left headlamp Superseded
Location: 6 Prev | Next Part: 61268600 *Qty: 2 Connecting rod Call
Location: 7 Prev | Next Part: 61566800 *Qty: 6 Pin Superseded
Location: 8 Prev | Next Part: 15896211 *Qty: 10 Nut Superseded
Location: 9 Prev | Next Part: 61556100 *Qty: 1 Left bracket $8.59
Location: 9 Prev | Next Part: 61556000 *Qty: 1 Right bracket $14.71
Location: 10 Prev | Next Part: 16160976 *Qty: 6 Spring ring $0.90
Location: 11 Prev | Next Part: 15908306 *Qty: 2 Screw $0.90
Location: 12 Prev | Next Part: 61531300 *Qty: 1 L.H. support bracket $19.95
Location: 12 Prev | Next Part: 61531200 *Qty: 1 R.H. support bracket $15.51
Location: 13 Prev | Next Part: 61531000 *Qty: 1 Lifting linkage for right lamp $113.12
Location: 13 Prev | Next Part: 61531100 *Qty: 1 Lifting linkage for left lamp $174.04
Location: 14 Prev | Next Part: 61575500 *Qty: 2 Bushing $39.22

* Quantity shown indicates the number of pieces used in the diagram.
