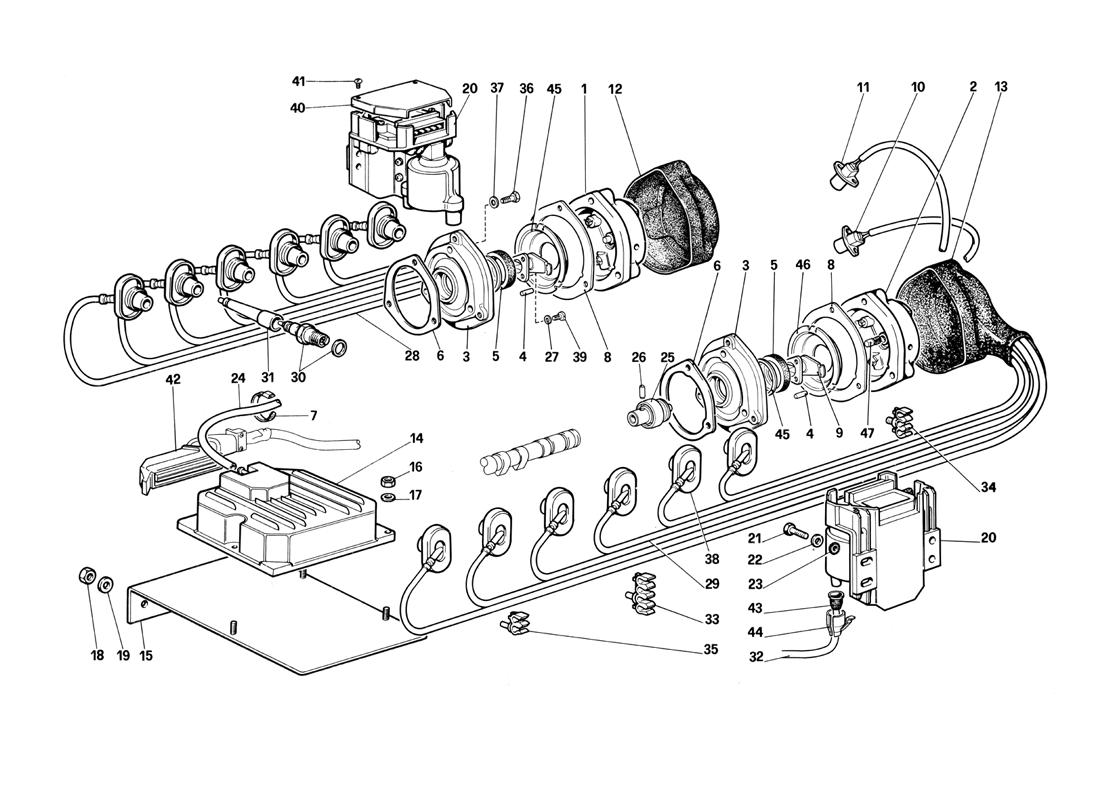

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: HT008 *Qty: 1 Complete HT Leads Set Call
Location: 1 Prev | Next Part: 144637 *Qty: 1 RH Distributor Cap
Use on Exhaustion of 121552
$569.81
Location: 1 Prev | Next Part: 121552 *Qty: 1 R.H. distributor cap
After exhaustion and for CAT. use no. 144637
Superseded
Location: 2 Prev | Next Part: 144638 *Qty: 1 LH Distributor Cap
Use on Exhaustion of 124575
$745.42
Location: 2 Prev | Next Part: 124575 *Qty: 1 L.H. distributor cap
After exhaustion and for CAT. use no. 144638
Superseded
Location: 3 Prev | Next Part: 126115 *Qty: 2 Distributor cap support
Until exhaustion
Superseded
Location: 3 Prev | Next Part: 133347 *Qty: 1 L.H. distributor cap support
After exhaustion no. 126115
$59.28
Location: 3 Prev | Next Part: 133346 *Qty: 1 R.H. distributor cap support
After exhaustion no. 126115
$59.28
Location: 4 Prev | Next Part: 10331111 *Qty: 2 Dowel $0.90
Location: 5 Prev | Next Part: 132452 *Qty: 2 Oil seal ring $45.00
Location: 6 Prev | Next Part: 134956 *Qty: 2 Gasket
Without Amianthus
Superseded
Location: 6 Prev | Next Part: 117261 *Qty: 2 Gasket
With Amianthus
Superseded
Location: 7 Prev | Next Part: 110381 *Qty: 3 Clamp $0.90
Location: 8 Prev | Next Part: 119409 *Qty: 2 Gasket $5.17
Location: 9 Prev | Next Part: 126139 *Qty: 2 Rotor arm $96.92
Location: 10 Prev | Next Part: 119052 *Qty: 1 Angular speed sensor $145.00
Location: 11 Prev | Next Part: 124241 *Qty: 1 Dead center pick-up sensor $55.89
Location: 12 Prev | Next Part: 124581 *Qty: 1 R.H. distributor cap boot
After exhaustion and for CAT. use no. 139540
Superseded
Location: 13 Prev | Next Part: 124582 *Qty: 1 L.H. distributor cap boot
After exhaustion and for CAT.use no. 139541
Superseded
Location: 14 Prev | Next Part: 125828 *Qty: 1 Ignition module
For C7 - After exhaustion and for CAT. use no. 144242
Call
Location: 15 Prev | Next Part: 124391 *Qty: 1 Ignition module securing plate $21.24
Location: 16 Prev | Next Part: 12574211 *Qty: 3 Nut Superseded
Location: 17 Prev | Next Part: 12639701 *Qty: 3 Washer Call
Location: 18 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 19 Prev | Next Part: 12639701 *Qty: 2 Washer Call
Location: 20 Prev | Next Part: 143413 *Qty: 2 Power module with coil
For CAT.
$607.99
Location: 20 Prev | Next Part: 124273 *Qty: 2 Power module with coil
Not for CAT.
$544.41
Location: 21 Prev | Next Part: 10902327 *Qty: 4 Screw $0.90
Location: 22 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 23 Prev | Next Part: 10615471 *Qty: 4 Tab washer $0.90
Location: 24 Prev | Next Part: 122762 *Qty: 1 Ignition module depression hose $12.79
Location: 25 Prev | Next Part: 133063 *Qty: 2 Coupling on camshaft $845.42
Location: 26 Prev | Next Part: 132355 *Qty: 2 Spring pin $61.35
Location: 27 Prev | Next Part: 12544071 *Qty: 6 Washer $0.90
Location: 28 Prev | Next Part: 124171 *Qty: 1 Set of R.H. ignition cables $457.96
Location: 29 Prev | Next Part: 124172 *Qty: 1 Set of L.H. ignition cables $457.96
Location: 30 Prev | Next Part: 139425 *Qty: 12 Spark plug Bosch X R4CS
In alternative
$13.74
Location: 30 Prev | Next Part: 124274 *Qty: 12 Spark plug CHAMPION A-6G
After exhaustion and for CAT. use no. 131922
Superseded
Location: 31 Prev | Next Part: 124792 *Qty: 12 Extension for spark plugs cables $13.00
Location: 32 Prev | Next Part: 124179 *Qty: 2 Cable from coil to distributor cap $102.31
Location: 33 Prev | Next Part: 121788 *Qty: 2 4 - cable support clip $10.91
Location: 34 Prev | Next Part: 121789 *Qty: 8 3 - cable support clip $7.20
Location: 35 Prev | Next Part: 121790 *Qty: 4 2 - cables upport clip $11.57
Location: 36 Prev | Next Part: 10902321 *Qty: 2 Screw Superseded
Location: 37 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 121527 *Qty: 12 Spark plug cap $40.07
Location: 39 Prev | Next Part: 10444521 *Qty: 6 Screw $0.90
Location: 40 Prev | Next Part: 128169 *Qty: 2 Protection for power module $187.34
Location: 41 Prev | Next Part: 15921807 *Qty: 4 Screw Call
Location: 42 Prev | Next Part: 61916900 *Qty: 1 25 way connector Call
Location: 43 Prev | Next Part: 122970 *Qty: 2 Cap $27.02
Location: 44 Prev | Next Part: 129620 *Qty: 2 Protection Call
Location: 45 Prev | Next Part: 133066 *Qty: 2 Spacer
For distributor cap support no. 126115
$28.04
Location: 46 Prev | Next Part: 132907 *Qty: 2 Cover
Startirig from engine no. 15098 - 15269 US
$6.19
Location: 47 Prev | Next Part: 140567 *Qty: 2 Solid carbon with spring
For distributor cap no. 121552 and 124575
$24.95
Location: 47 Prev | Next Part: 144740 *Qty: 2 Solid carbon with spring
For distributor cap no. 144637 and 144638
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
