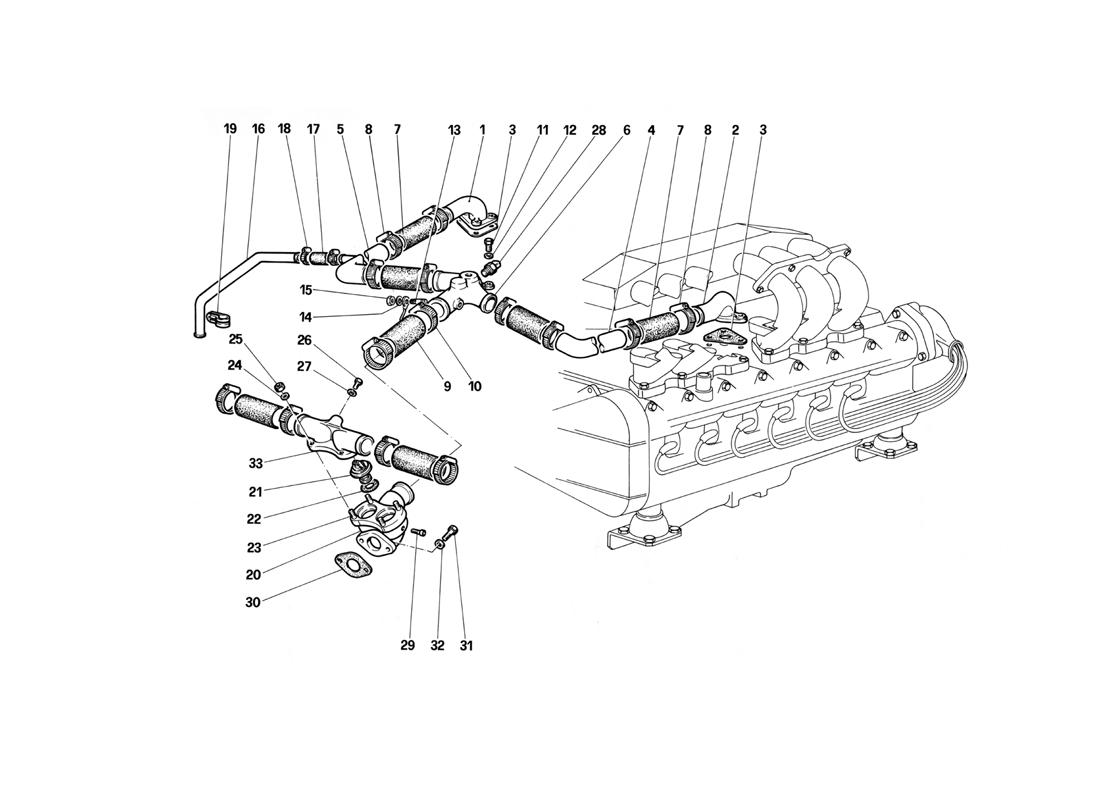

ENGINE COOLING

Go to Split View

ENGINE COOLING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121030 *Qty: 1 Water outlet from R.H. cyl. head $116.49
Location: 2 Prev | Next Part: 121031 *Qty: 1 Water outlet form L.H. cyl. head $113.94
Location: 3 Prev | Next Part: 121032 *Qty: 2 Gasket
With Amianthus
Superseded
Location: 3 Prev | Next Part: 134952 *Qty: 2 Gasket
Without Amianthus
$4.91
Location: 4 Prev | Next Part: 121122 *Qty: 1 L.H. pipe $38.71
Location: 5 Prev | Next Part: 121121 *Qty: 1 R.H. pipe $46.03
Location: 6 Prev | Next Part: 121471 *Qty: 1 Manifold for water delivery to thermostat $331.10
Location: 7 Prev | Next Part: 121166 *Qty: 1 Sleeve $16.68
Location: 8 Prev | Next Part: 12173890 *Qty: 8 Clamp $2.54
Location: 9 Prev | Next Part: 122938 *Qty: 1 Sleeve Call
Location: 10 Prev | Next Part: 12174090 *Qty: 2 Clamp Superseded
Location: 11 Prev | Next Part: 10902421 *Qty: 2 Screw Superseded
Location: 12 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 11499921 *Qty: 1 Stud Superseded
Location: 14 Prev | Next Part: 10615479 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 16 Prev | Next Part: 124960 *Qty: 1 Heater water delivery pipe Superseded
Location: 17 Prev | Next Part: 124961 *Qty: 1 Sleeve $12.76
Location: 18 Prev | Next Part: 12179590 *Qty: 2 Clamp Superseded
Location: 19 Prev | Next Part: 10450490 *Qty: 1 Bracket $0.90
Location: 20 Prev | Next Part: 124145 *Qty: 1 Thermostat body $296.31
Location: 21 Prev | Next Part: 109671 *Qty: 2 Thermostat $217.80
Location: 22 Prev | Next Part: 105192 *Qty: 2 Gasket $20.77
Location: 23 Prev | Next Part: 13540921 *Qty: 4 Stud Call
Location: 24 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 25 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 26 Prev | Next Part: 10300240 *Qty: 1 Drain plug
After exhaustion use no. 130282
$5.78
Location: 27 Prev | Next Part: 10297760 *Qty: 1 Gasket $0.90
Location: 28 Prev | Next Part: 104628 *Qty: 1 Thermistor $76.14
Location: 29 Prev | Next Part: 112030 *Qty: 1 Union for reservoir breather $8.97
Location: 30 Prev | Next Part: 134963 *Qty: 1 Gasket - Without Amianthus $9.19
Location: 30 Prev | Next Part: 123184 *Qty: 1 Gasket - With Amianthus Superseded
Location: 31 Prev | Next Part: 10903421 *Qty: 2 Screw $0.90
Location: 32 Prev | Next Part: 11193279 *Qty: 2 Washer $0.90
Location: 33 Prev | Next Part: 124144 *Qty: 1 Thermostat body cover $193.55

* Quantity shown indicates the number of pieces used in the diagram.
