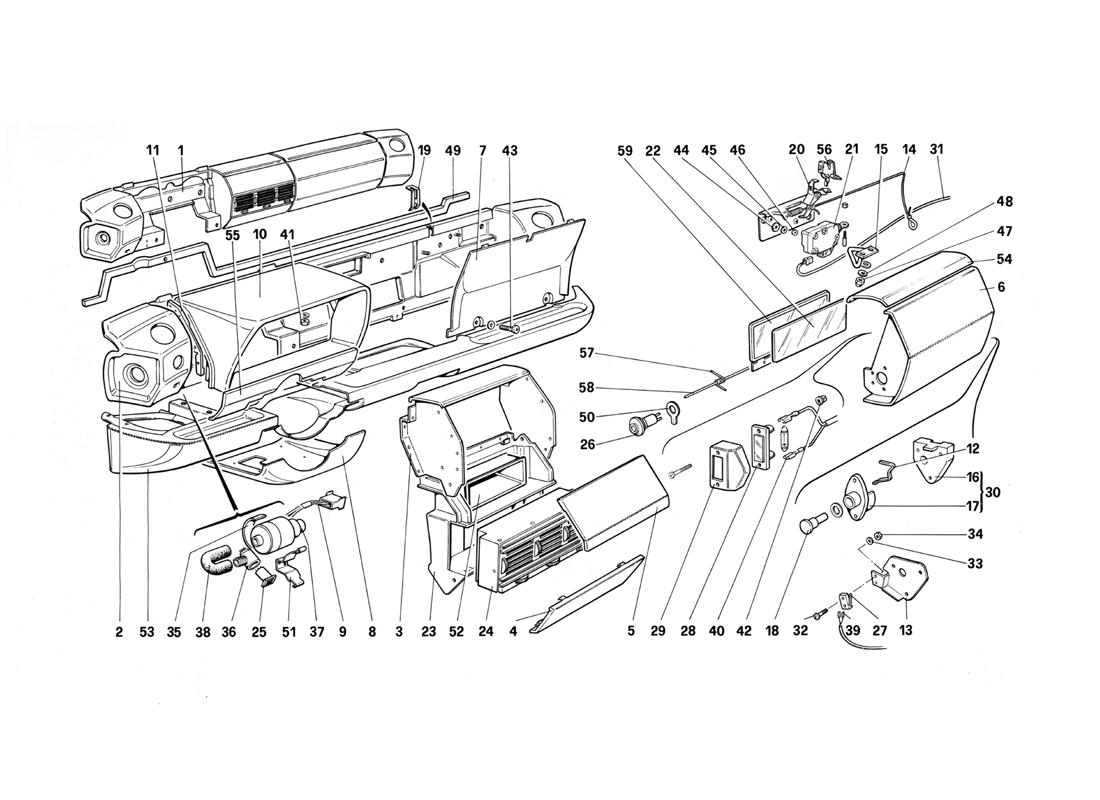

DASHBOARD (FOR US VERSION)

Go to Split View

DASHBOARD (FOR US VERSION)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61553666 *Qty: 1 Dash board assembly
With instruments seat
Call
Location: 1 Prev | Next Part: 61553700 *Qty: 1 Dash board assembly
Without instruments seat
$8,215.10
Location: 2 Prev | Next Part: 61553866 *Qty: 1 Dash board frame Call
Location: 3 Prev | Next Part: 61520866 *Qty: 1 Dash board central section Call
Location: 4 Prev | Next Part: 61553968 *Qty: 1 Dash board central panel Call
Location: 5 Prev | Next Part: 61521166 *Qty: 1 Dash board central cover Call
Location: 6 Prev | Next Part: 61554166 *Qty: 1 Dash board box Call
Location: 7 Prev | Next Part: 61554200 *Qty: 1 Dash board box panel $332.88
Location: 8 Prev | Next Part: 61578466 *Qty: 1 Steering column cover
From car No 82830
Call
Location: 8 Prev | Next Part: 61554966 *Qty: 1 Steering column cover
Until car No 82829
Call
Location: 9 Prev | Next Part: 119436 *Qty: 1 Sensor cable for internal temperature Call
Location: 11 Prev | Next Part: 61521866 *Qty: 1 Right angle piece Call
Location: 11 Prev | Next Part: 61521966 *Qty: 1 Left angle piece Call
Location: 12 Prev | Next Part: 61522660 *Qty: 2 Clip Call
Location: 13 Prev | Next Part: 61554500 *Qty: 1 Bracket $17.69
Location: 14 Prev | Next Part: 61554466 *Qty: 1 Safety cable Call
Location: 15 Prev | Next Part: 61554666 *Qty: 1 Lock striker Call
Location: 16 Prev | Next Part: 61522466 *Qty: 1 Right fixed hinge Call
Location: 16 Prev | Next Part: 61522500 *Qty: 1 Left fixed hinge Call
Location: 16 Prev | Next Part: 61558966 *Qty: 1 Housing instruments Call
Location: 17 Prev | Next Part: 61522600 *Qty: 1 Right mobile hinge Call
Location: 17 Prev | Next Part: 61522766 *Qty: 1 Left mobile hinge Call
Location: 18 Prev | Next Part: 61522866 *Qty: 2 Pin Call
Location: 19 Prev | Next Part: 61554760 *Qty: 1 Frame Call
Location: 21 Prev | Next Part: 61523100 *Qty: 1 Lock magnet Call
Location: 22 Prev | Next Part: 61523200 *Qty: 1 Courtesy mirror $28.54
Location: 23 Prev | Next Part: 61523360 *Qty: 1 Frame work Call
Location: 24 Prev | Next Part: 61523566 *Qty: 1 Central air outlet Call
Location: 25 Prev | Next Part: 61879168 *Qty: 1 Sensor for internal temperature Call
Location: 26 Prev | Next Part: 61523600 *Qty: 1 Socket $24.78
Location: 26 Prev | Next Part: 61545800 *Qty: 1 Lock bracket $147.79
Location: 27 Prev | Next Part: 61523766 *Qty: 1 Switch Call
Location: 28 Prev | Next Part: 61647260 *Qty: 2 Dash board box lamp Call
Location: 29 Prev | Next Part: 61523866 *Qty: 2 Dash board box lamp frame Call
Location: 31 Prev | Next Part: 124410 *Qty: 1 Socket cables $12.06
Location: 32 Prev | Next Part: 61524180 *Qty: 2 Screw Call
Location: 33 Prev | Next Part: 61524200 *Qty: 2 Washer $0.90
Location: 34 Prev | Next Part: 61524300 *Qty: 2 Nut $0.90
Location: 35 Prev | Next Part: 120065 *Qty: 1 Sensor ring $1.83
Location: 36 Prev | Next Part: 61679266 *Qty: 1 Box sensor Call
Location: 37 Prev | Next Part: 61679366 *Qty: 1 Suction fan for sensor Call
Location: 38 Prev | Next Part: 61523966 *Qty: 1 Right dashboard box hinge Call
Location: 38 Prev | Next Part: 61524000 *Qty: 1 Left dashboard box hinge $15.80
Location: 38 Prev | Next Part: 124839 *Qty: 1 Tube from suction fan to sensor Call
Location: 39 Prev | Next Part: 124469 *Qty: 1 Switch cables $3.99
Location: 40 Prev | Next Part: 124411 *Qty: 1 Lamp cables $12.23
Location: 41 Prev | Next Part: 14684111 *Qty: 4 Nut Call
Location: 42 Prev | Next Part: 12611342 *Qty: 4 Female screw $0.90
Location: 43 Prev | Next Part: 15688361 *Qty: 2 Screw Call
Location: 44 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 45 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 46 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 47 Prev | Next Part: 14651811 *Qty: 2 Nut Call
Location: 48 Prev | Next Part: 16519201 *Qty: 4 Washer Call
Location: 49 Prev | Next Part: 61554300 *Qty: 1 Dashboard support structure $591.84
Location: 51 Prev | Next Part: 61689566 *Qty: 1 Bracket Call
Location: 52 Prev | Next Part: 61541666 *Qty: 1 Radio box Call
Location: 53 Prev | Next Part: 61578366 *Qty: 1 Knee protection
From car No 82838
Call
Location: 53 Prev | Next Part: 61554860 *Qty: 1 Knee protection
Until car No 82829
Call
Location: 54 Prev | Next Part: 61554860 *Qty: 1 Box cover Call
Location: 55 Prev | Next Part: 61561960 *Qty: 1 Lower cover Call
Location: 56 Prev | Next Part: 61545666 *Qty: 1 Glove box lock Call
Location: 57 Prev | Next Part: 61577500 *Qty: 1 Clip $1.49
Location: 58 Prev | Next Part: 66761466 *Qty: 1 Negative terminal Call
Location: 58 Prev | Next Part: 61577686 *Qty: 1 Pin Call
Location: 59 Prev | Next Part: 61577466 *Qty: 1 Mirror, complete Call

* Quantity shown indicates the number of pieces used in the diagram.
