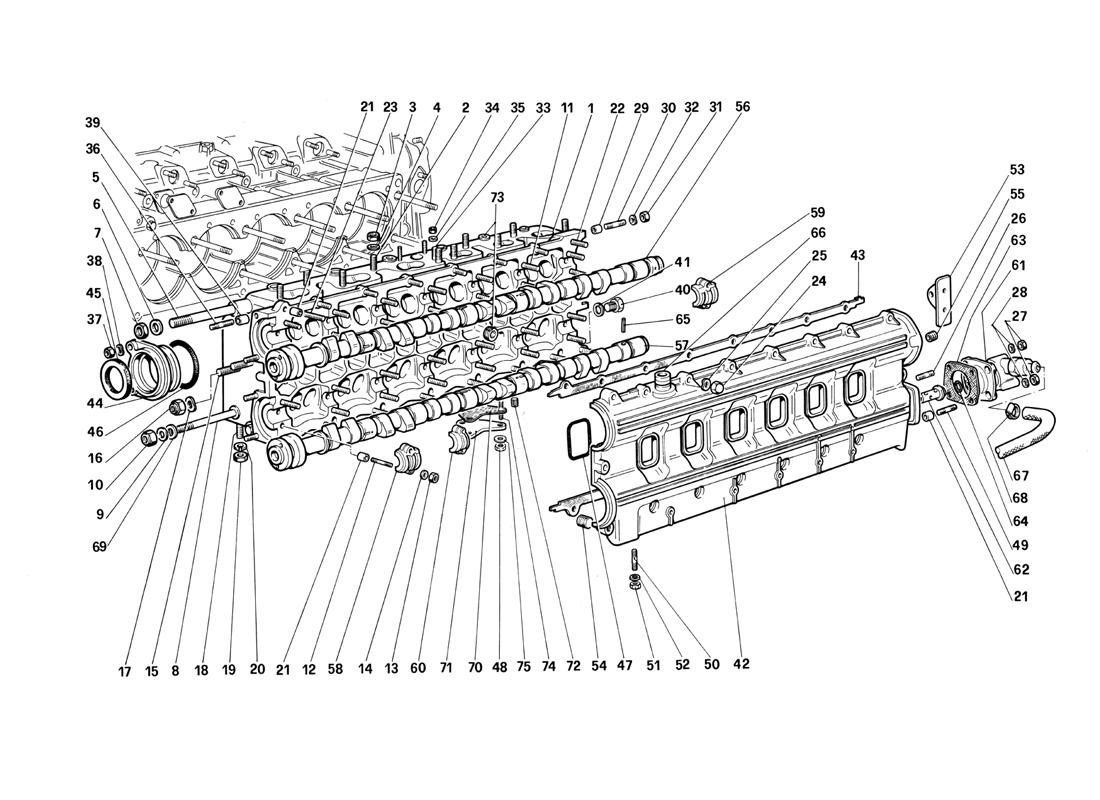

CYLINDER HEAD (LEFT)

Go to Split View

CYLINDER HEAD (LEFT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123055 *Qty: 1 Left cylinder head
With cylinder head no. 123065
Call
Location: 1 Prev | Next Part: 123065 *Qty: 1 Left cylinder head, complete $3,733.82
Location: 2 Prev | Next Part: 12354521 *Qty: 10 Stud Superseded
Location: 3 Prev | Next Part: 16100811 *Qty: 10 Nut Superseded
Location: 4 Prev | Next Part: 11194071 *Qty: 10 Washer $0.90
Location: 5 Prev | Next Part: 13953121 *Qty: 1 Stud $3.06
Location: 6 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 7 Prev | Next Part: 12575611 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 13970321 *Qty: 1 Stud $3.75
Location: 9 Prev | Next Part: 12604471 *Qty: 1 Washer $0.90
Location: 10 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 11 Prev | Next Part: 102735 *Qty: 24 Stud (inner caps) $23.76
Location: 12 Prev | Next Part: 102754 *Qty: 4 Stud (outer caps) $6.11
Location: 13 Prev | Next Part: 15896211 *Qty: 28 Nut Superseded
Location: 14 Prev | Next Part: 11197773 *Qty: 28 Washer Superseded
Location: 15 Prev | Next Part: 13543421 *Qty: 2 Stud (belt stretcher) Superseded
Location: 16 Prev | Next Part: 101139 *Qty: 2 Nut $0.90
Location: 17 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 18 Prev | Next Part: 13543521 *Qty: 12 Stud Superseded
Location: 19 Prev | Next Part: 105938 *Qty: 12 Nut
In alternative use no. 124525
Superseded
Location: 20 Prev | Next Part: 106851 *Qty: 12 Washer
For nut 105938
$0.90
Location: 21 Prev | Next Part: 102725 *Qty: 30 Dowel $0.90
Location: 22 Prev | Next Part: 13541321 *Qty: 16 Stud for covers Superseded
Location: 23 Prev | Next Part: 13541421 *Qty: 2 Stud on dowel Superseded
Location: 24 Prev | Next Part: 100044 *Qty: 18 Cap nut $0.90
Location: 25 Prev | Next Part: 12601271 *Qty: 18 Washer Superseded
Location: 26 Prev | Next Part: 11500521 *Qty: 2 Vacuum pump securing stud $2.54
Location: 27 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 28 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 29 Prev | Next Part: 102725 *Qty: 2 Dowel for distributor cap support $0.90
Location: 30 Prev | Next Part: 13541121 *Qty: 2 Stud Superseded
Location: 31 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 32 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 13541021 *Qty: 3 Stud Superseded
Location: 34 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 35 Prev | Next Part: 12601271 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 13541121 *Qty: 4 Stud Superseded
Location: 37 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 38 Prev | Next Part: 12601271 *Qty: 4 Washer Superseded
Location: 39 Prev | Next Part: 102725 *Qty: 4 Dowel $0.90
Location: 40 Prev | Next Part: 10300740 *Qty: 1 Water drain plug $16.09
Location: 41 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 42 Prev | Next Part: 128796 *Qty: 1 Left cylinder head cover
With complete cylinder head
Call
Location: 43 Prev | Next Part: 127228 *Qty: 1 Gasket - With Amianthus Superseded
Location: 43 Prev | Next Part: 134949 *Qty: 1 Gasket - Without Amianthus Superseded
Location: 44 Prev | Next Part: 121116 *Qty: 2 Front cover $172.35
Location: 45 Prev | Next Part: 114639 *Qty: 2 Sealing ring
In alternative use no. 128260
$17.69
Location: 46 Prev | Next Part: 117036 *Qty: 2 Sealing ring $6.43
Location: 47 Prev | Next Part: 127649 *Qty: 6 Sealing ring $6.51
Location: 48 Prev | Next Part: 115201 *Qty: 6 Nut $16.89
Location: 49 Prev | Next Part: 11500421 *Qty: 2 Vacuum pump securing stud Superseded
Location: 50 Prev | Next Part: 11500121 *Qty: 2 Stud Superseded
Location: 51 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 52 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 53 Prev | Next Part: 124594 *Qty: 1 Bracket $179.98
Location: 54 Prev | Next Part: 10269750 *Qty: 3 Plug $2.01
Location: 55 Prev | Next Part: 13525470 *Qty: 1 Heli-coil $0.90
Location: 56 Prev | Next Part: 124033 *Qty: 1 Left intake camshaft, complete
After exhaustion use no. 143958
Call
Location: 57 Prev | Next Part: 123107 *Qty: 1 Left exhaust camshaft, complete $2,093.57
Location: 58 Prev | Next Part: 114499 *Qty: 2 Front cap
With complete cylinder head
Call
Location: 59 Prev | Next Part: 114497 *Qty: 2 Rear cap
With complete cylinder head
Call
Location: 60 Prev | Next Part: 126811 *Qty: 10 Intermediate cap
With complete cylinder head
Call
Location: 61 Prev | Next Part: 122737 *Qty: 1 Vacuum pump Superseded
Location: 62 Prev | Next Part: 121054 *Qty: 1 Coupling Call
Location: 63 Prev | Next Part: 134954 *Qty: 1 Gasket - Without Amianthus Superseded
Location: 63 Prev | Next Part: 122781 *Qty: 1 Gasket - With Amianthus Superseded
Location: 64 Prev | Next Part: 105661 *Qty: 1 OR-ring $1.68
Location: 65 Prev | Next Part: 13940270 *Qty: 1 Pin (0 5) $0.90
Location: 65 Prev | Next Part: 13938070 *Qty: 1 Pin (04) $0.90
Location: 66 Prev | Next Part: 102705 *Qty: 1 Union $32.95
Location: 67 Prev | Next Part: 125031 *Qty: 1 3-way union $15.44
Location: 68 Prev | Next Part: 12179590 *Qty: 1 Clamp Superseded
Location: 69 Prev | Next Part: 112761 *Qty: 1 Washer Superseded
Location: 70 Prev | Next Part: 146193 *Qty: 2 Gasket
For B1
Call
Location: 71 Prev | Next Part: 127834 *Qty: 2 Cover.
For B1
$30.76
Location: 72 Prev | Next Part: 14326150 *Qty: 3 Plug (8 x1,25) $0.90
Location: 73 Prev | Next Part: 127635 *Qty: 2 Plug $4.35
Location: 74 Prev | Next Part: 13541021 *Qty: 6 Stud Superseded
Location: 75 Prev | Next Part: 106850 *Qty: 6 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
