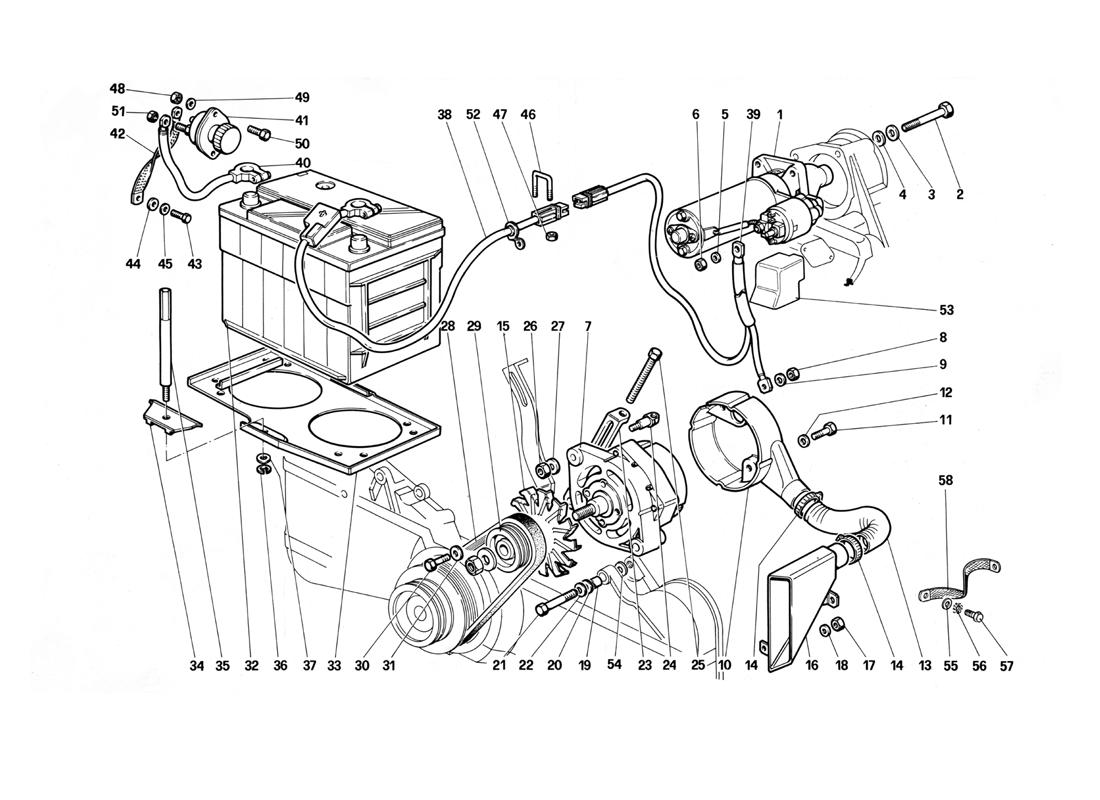

CURRENT GENERATION

Go to Split View

CURRENT GENERATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120967 *Qty: 1 Starter motor $2,022.79
Location: 2 Prev | Next Part: 104189 *Qty: 3 Starter securing screw $10.71
Location: 3 Prev | Next Part: 11198071 *Qty: 3 Washer Superseded
Location: 4 Prev | Next Part: 10519621 *Qty: 3 Flat washer $0.90
Location: 5 Prev | Next Part: 102683 *Qty: 1 Spacer $13.65
Location: 6 Prev | Next Part: - *Qty: 1 Nut Call
Location: 7 Prev | Next Part: 125891 *Qty: 1 Alternator 120A
Until car no. 84951
Superseded
Location: 7 Prev | Next Part: 144096 *Qty: 1 Alternator 120A
Starting car no. 84952 and for CAT.
Call
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Alternator cables securing nut Superseded
Location: 9 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded
Location: 10 Prev | Next Part: 125574 *Qty: 1 Air conveyor
Not for CAT. - Until car no. 84951
Call
Location: 10 Prev | Next Part: 144772 *Qty: 1 Air conveyor
Starting car no. 84952
$108.85
Location: 10 Prev | Next Part: 143081 *Qty: 1 Air conveyor
For CAT. - Until car no. 84951
$131.10
Location: 11 Prev | Next Part: 123295 *Qty: 1 Screw $0.90
Location: 12 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 13 Prev | Next Part: 123296 *Qty: 1 Conveyor flexible hose
Until engine no.
$76.06
Location: 13 Prev | Next Part: 144770 *Qty: 1 Conveyor flexible hose
Starting engine no.
$433.17
Location: 14 Prev | Next Part: 12177090 *Qty: 2 Clamp Superseded
Location: 15 Prev | Next Part: 121282 *Qty: 1 Fan. $67.58
Location: 16 Prev | Next Part: 144771 *Qty: 1 Air-delivery hose
Starting engine no.
$194.42
Location: 16 Prev | Next Part: 124178 *Qty: 1 Air-delivery hose
Until engine no.
$144.67
Location: 17 Prev | Next Part: 12575411 *Qty: 1 Nut Superseded
Location: 18 Prev | Next Part: 10615476 *Qty: 1 Washer $0.90
Location: 19 Prev | Next Part: 123172 *Qty: 1 Bushing on R.H. crankcase cover $2.61
Location: 20 Prev | Next Part: 12638601 *Qty: 1 Washer $0.90
Location: 21 Prev | Next Part: 15971821 *Qty: 1 Screw $1.65
Location: 22 Prev | Next Part: 106853 *Qty: 1 Washer Superseded
Location: 23 Prev | Next Part: 123173 *Qty: 1 Alternator bracket $24.45
Location: 24 Prev | Next Part: 123193 *Qty: 1 Threaded pin $164.84
Location: 25 Prev | Next Part: 125668 *Qty: 1 Voltage regulating screw $1.81
Location: 26 Prev | Next Part: 16104111 *Qty: 1 Self-locking nut Superseded
Location: 27 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 28 Prev | Next Part: 133294 *Qty: 1 Alternator belt "Poly V" (Continental)
In alternative use no. 133262 - For damper no. 134145
Superseded
Location: 28 Prev | Next Part: 127132 *Qty: 1 Alternator control belt (Continental)
For damper no. 125194
$25.91
Location: 28 Prev | Next Part: 133262 *Qty: 1 Alternator belt "Poly V" (Pirelli)
In alternative use no. 133294 - For damper no. 134145
Superseded
Location: 29 Prev | Next Part: 125910 *Qty: 1 Pulley
For control belt no. 127132
$283.36
Location: 29 Prev | Next Part: 134147 *Qty: 1 Pulley
For control belt no. 133294 - 133262
$91.70
Location: 30 Prev | Next Part: 15970921 *Qty: 1 Bracket securing screw $0.90
Location: 31 Prev | Next Part: 106853 *Qty: 1 Washer Superseded
Location: 32 Prev | Next Part: 118060 *Qty: 1 1 2 V - 66 Ah - 300 A battery Superseded
Location: 33 Prev | Next Part: 125333 *Qty: 1 Battery support plate $225.23
Location: 34 Prev | Next Part: 100839 *Qty: 1 Battery securing bracket Call
Location: 35 Prev | Next Part: 125330 *Qty: 1 Pin $247.60
Location: 36 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 37 Prev | Next Part: 12642721 *Qty: 1 Washer $2.98
Location: 38 Prev | Next Part: 144474 *Qty: 1 Battery positive cable
For CAT. and starting from car no. 84952
$214.40
Location: 38 Prev | Next Part: 123674 *Qty: 1 Battery positive cable
Not for CAT. and until car no. 84951
Call
Location: 39 Prev | Next Part: 131162 *Qty: 1 Starter and alternator positive cable
Not for CAT. and until car no. 84951
Call
Location: 39 Prev | Next Part: 144468 *Qty: 1 Starter and alternator positive cable
For CAT. and starting from car no. 84952
$416.86
Location: 40 Prev | Next Part: 123676 *Qty: 1 Plait from battery to switch $44.15
Location: 41 Prev | Next Part: 123677 *Qty: 1 Battery disconnecting switch
After exhaustion use no. 139607
Call
Location: 42 Prev | Next Part: 123678 *Qty: 1 Earthing plait for batt. disconn. $68.78
Location: 43 Prev | Next Part: 16043121 *Qty: 1 Screw $0.90
Location: 44 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 45 Prev | Next Part: 10615679 *Qty: 1 Tab washer Call
Location: 46 Prev | Next Part: 116591 *Qty: 1 Pos. cable fastening U bolt $9.51
Location: 47 Prev | Next Part: 12574011 *Qty: 2 Nut Superseded
Location: 48 Prev | Next Part: 12574011 *Qty: 2 Nut securing batt. disconn. switch Superseded
Location: 49 Prev | Next Part: 14497701 *Qty: 2 Washer $0.90
Location: 50 Prev | Next Part: 14476078 *Qty: 2 Nut Call
Location: 51 Prev | Next Part: 12575411 *Qty: 1 Nut Superseded
Location: 52 Prev | Next Part: 10441490 *Qty: 2 Cable support bracket $0.90
Location: 53 Prev | Next Part: 126505 *Qty: 1 Protection $2.39
Location: 54 Prev | Next Part: 121678 *Qty: 1 Washer $8.81
Location: 55 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 56 Prev | Next Part: 10615679 *Qty: 1 Washer Call
Location: 57 Prev | Next Part: 16043121 *Qty: 1 Screw $0.90
Location: 58 Prev | Next Part: 115668 *Qty: 1 Earthing plait for engine Superseded

* Quantity shown indicates the number of pieces used in the diagram.
