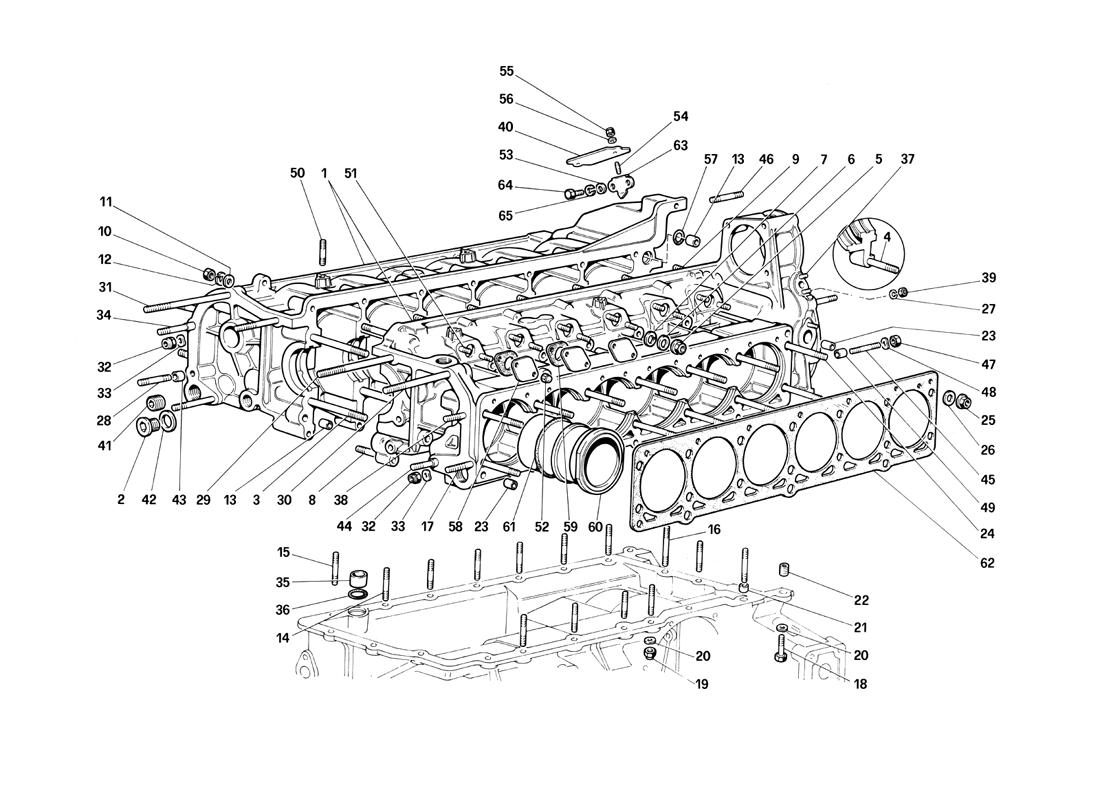

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: GSET001 *Qty: 1 Set of Gaskets Call
Location: 1 Prev | Next Part: 130541 *Qty: 1 Crankcase, complete
Until engine No 20820
$3,515.65
Location: 1 Prev | Next Part: 147254 *Qty: 1 Crankcase, complete
From engine No 20821
Call
Location: 2 Prev | Next Part: 10304611 *Qty: 2 Plug $3.50
Location: 3 Prev | Next Part: 102687 *Qty: 14 Semi-crankcase securing stud $47.12
Location: 4 Prev | Next Part: 109539 *Qty: 1 Semi-crankcase securing stud $18.75
Location: 5 Prev | Next Part: 102693 *Qty: 15 Nut $30.73
Location: 6 Prev | Next Part: 102694 *Qty: 15 Washer $2.00
Location: 7 Prev | Next Part: 106855 *Qty: 15 Washer Superseded
Location: 8 Prev | Next Part: 13546630 *Qty: 3 Semi-crankcase securing stud Superseded
Location: 9 Prev | Next Part: 102689 *Qty: 9 Semi-crankcase securing, stud $14.71
Location: 9 Prev | Next Part: 102690 *Qty: 1 Semi-crankcase securing stud $13.66
Location: 10 Prev | Next Part: 12164721 *Qty: 13 Nut Superseded
Location: 11 Prev | Next Part: 102695 *Qty: 13 Washer $0.84
Location: 12 Prev | Next Part: 106853 *Qty: 13 Washer Superseded
Location: 13 Prev | Next Part: 102692 *Qty: 2 Semi-crankcase securing stud $6.65
Location: 14 Prev | Next Part: 13449621 *Qty: 12 Stud securing crankcase to gearbox Superseded
Location: 15 Prev | Next Part: 13449821 *Qty: 1 Stud $1.10
Location: 16 Prev | Next Part: 13450121 *Qty: 2 Stud Superseded
Location: 17 Prev | Next Part: 13543821 *Qty: 1 Stud Call
Location: 18 Prev | Next Part: 11306921 *Qty: 2 Bolt $0.90
Location: 19 Prev | Next Part: 12575621 *Qty: 13 Nut Superseded
Location: 19 Prev | Next Part: 107314 *Qty: 2 Nut $6.77
Location: 20 Prev | Next Part: 12604579 *Qty: 2 Washer $1.56
Location: 20 Prev | Next Part: 12601471 *Qty: 18 Washer Superseded
Location: 21 Prev | Next Part: 100052 *Qty: 1 Dowel $4.55
Location: 22 Prev | Next Part: 13526070 *Qty: 3 Threaded insert $4.58
Location: 23 Prev | Next Part: 124382 *Qty: 4 Dowel Superseded
Location: 24 Prev | Next Part: 102691 *Qty: 28 Cyl. heads securing $tuds $60.22
Location: 25 Prev | Next Part: 100101 *Qty: 28 Nut $75.08
Location: 26 Prev | Next Part: 100100 *Qty: 28 Washer $2.11
Location: 27 Prev | Next Part: 106849 *Qty: 4 Washer Superseded
Location: 28 Prev | Next Part: 13543621 *Qty: 1 Stud on RH dowel Superseded
Location: 29 Prev | Next Part: 13970921 *Qty: 1 Stud $0.97
Location: 30 Prev | Next Part: 13970421 *Qty: 1 Stud Superseded
Location: 31 Prev | Next Part: 13970521 *Qty: 1 Stud Call
Location: 32 Prev | Next Part: 101139 *Qty: 10 Nut $0.46
Location: 33 Prev | Next Part: 12601371 *Qty: 10 Washer Superseded
Location: 34 Prev | Next Part: 13544321 *Qty: 3 Stud Superseded
Location: 35 Prev | Next Part: 121201 *Qty: 1 Dowel $4.90
Location: 36 Prev | Next Part: 123263 *Qty: 1 Seal ring $5.76
Location: 37 Prev | Next Part: 13539021 *Qty: 4 Probes securing stud Superseded
Location: 38 Prev | Next Part: 13543421 *Qty: 1 Stud Superseded
Location: 39 Prev | Next Part: 15896411 *Qty: 4 Nut Superseded
Location: 40 Prev | Next Part: 102697 *Qty: 1 Cover for flywheel inspection slot Call
Location: 41 Prev | Next Part: 14326050 *Qty: 2 Plug for lubricating ports (8x 1,25) $1.77
Location: 41 Prev | Next Part: 10269850 *Qty: 1 Plug for lubricating ports $2.37
Location: 41 Prev | Next Part: 14326150 *Qty: 1 Plug for lubricating ports (10x 1,25) $0.90
Location: 42 Prev | Next Part: 10264560 *Qty: 2 Gasket $0.90
Location: 43 Prev | Next Part: 102704 *Qty: 2 Dowel $19.74
Location: 44 Prev | Next Part: 13543721 *Qty: 1 Stud on LH dowel $0.90
Location: 45 Prev | Next Part: 13544221 *Qty: 2 Stud on dowel Superseded
Location: 46 Prev | Next Part: 13544121 *Qty: 3 Stud Superseded
Location: 47 Prev | Next Part: 16100811 *Qty: 5 Nut Superseded
Location: 48 Prev | Next Part: 12601371 *Qty: 5 Washer Superseded
Location: 49 Prev | Next Part: 102704 *Qty: 2 Dowel $19.74
Location: 50 Prev | Next Part: 13541821 *Qty: 4 Stud for metering devices support $0.90
Location: 51 Prev | Next Part: 11500021 *Qty: 24 Stud Superseded
Location: 52 Prev | Next Part: 100044 *Qty: 24 Nut $0.90
Location: 53 Prev | Next Part: 10519301 *Qty: 2 Washer $0.90
Location: 54 Prev | Next Part: 11500021 *Qty: 2 Stud for cover of flywheel inspectionslot Superseded
Location: 55 Prev | Next Part: 100044 *Qty: 2 Nut $0.90
Location: 56 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 57 Prev | Next Part: 102743 *Qty: 1 Seal ringjj| $1.32
Location: 58 Prev | Next Part: 102698 *Qty: 12 Cover $28.33
Location: 59 Prev | Next Part: 102699 *Qty: 12 Gasket - With Amianthus Superseded
Location: 59 Prev | Next Part: 134951 *Qty: 12 Gasket - Without Amianthus Superseded
Location: 60 Prev | Next Part: 119853 *Qty: 12 Cylinder liner
After exhaustion use no 138519
Superseded
Location: 61 Prev | Next Part: 110021 *Qty: 12 Seal ring $9.46
Location: 62 Prev | Next Part: 125045 *Qty: 2 Gasket Superseded
Location: 63 Prev | Next Part: 124676 *Qty: 1 Plate with timing mark $3.86
Location: 64 Prev | Next Part: 10977621 *Qty: 2 Bolt Superseded
Location: 65 Prev | Next Part: 106849 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
