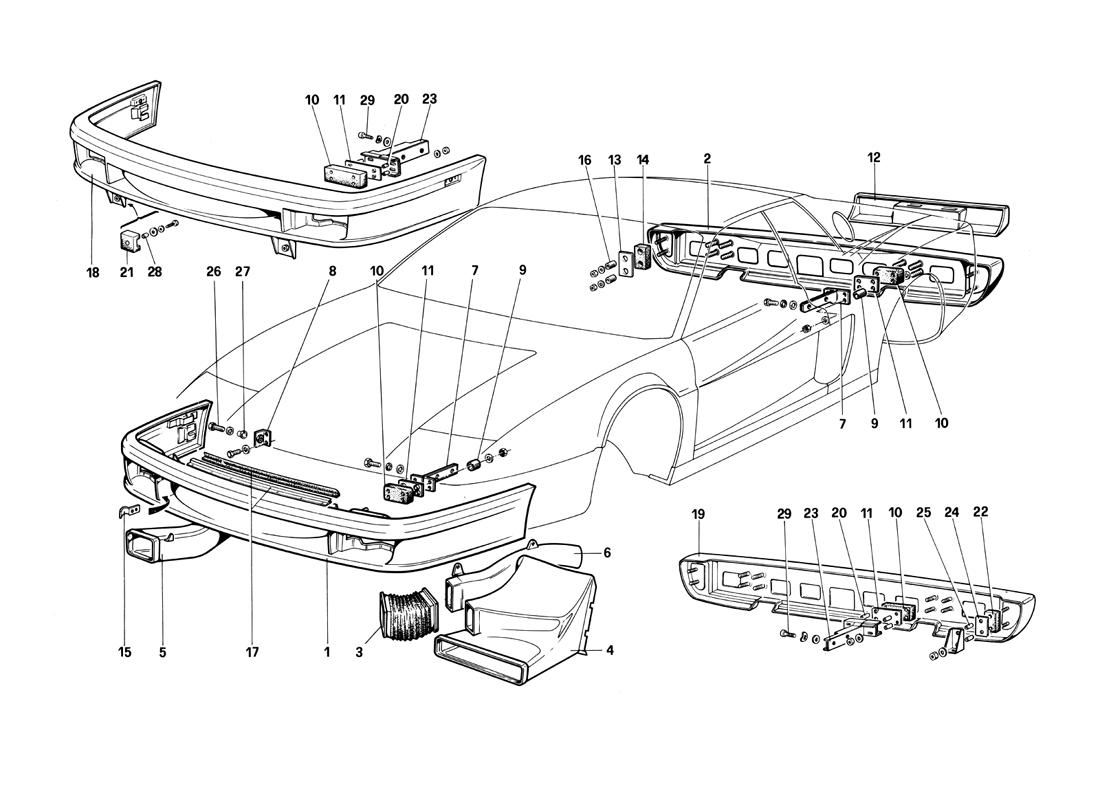

BUMPERS

Go to Split View

BUMPERS

Location Part # Quantity* Description Price Add To Cart
1 61544700 1 Front bumper
For SA 		$3,560.21
1 61532100 1 Front bumper
For US 		$7,243.95
1 61491200 1 Front bumper
For J 		$4,608.30
1 61491200 1 Front bumper
Not for US - SA - CDN 		$4,608.30
2 61559500 1 Rear bumper
For CH and CAT 		$3,871.74
2 61491300 1 Rear bumper
Not for US - SA - CDN - CH 		Superseded
2 61532200 1 Rear bumper
For US - SA 		$4,033.14
3 61491400 2 Bellow for air conveyor Unavailable
4 61491500 1 Air conveyor for condenser $444.71
5 61491600 1 Air conveyor for right front brake $647.73
6 61491700 1 Air conveyor for left front brake $391.71
7 61491900 2 Left support for front and rear bumper
Not for CDN 		Unavailable
7 61491800 2 Right support for front and rear bumper
Not for CDN 		Unavailable
8 61492000 2 Sliding support braket Unavailable
9 61492100 16 Spacer
Not for CDN 		$5.68
10 61492200 4 Pad $164.25
11 61492300 4 Plate Unavailable
12 61532700 1 Rear bumper central part
For US - SA 		$1,541.14
13 61532500 2 Plate
For US - SA 		$8.12
14 61532400 2 Pad
For US - SA 		Unavailable
15 61532800 2 Retainer spring $23.41
16 61532300 4 Spacer
For US - SA 		$1.99
17 61537400 1 Front bumper gasket $95.73
18 61547300 1 Front bumper
For CDN 		$7,267.36
19 61555800 1 Rear bumper
For CDN 		$6,228.75
20 61547600 16 Spacer
For CDN 		$2.35
21 61547700 2 Pad
For CDN 		$57.12
22 61532400 2 Pad
For CDN 		Unavailable
23 61547400 2 Right support
For CDN 		$229.09
23 61547500 2 Left support
For CDN 		$229.09
24 61532500 2 Plate
For CDN 		$8.12
25 61532300 4 Spacer
For CDN 		$1.99
26 61556200 2 Bolt $15.29
27 61543900 2 Bushing $61.59
28 61564900 2 Bushing
For CDN 		$1.10
29 61565000 8 Bolt
For CDN 		$10.47

* Quantity shown indicates the number of pieces used in the diagram.
