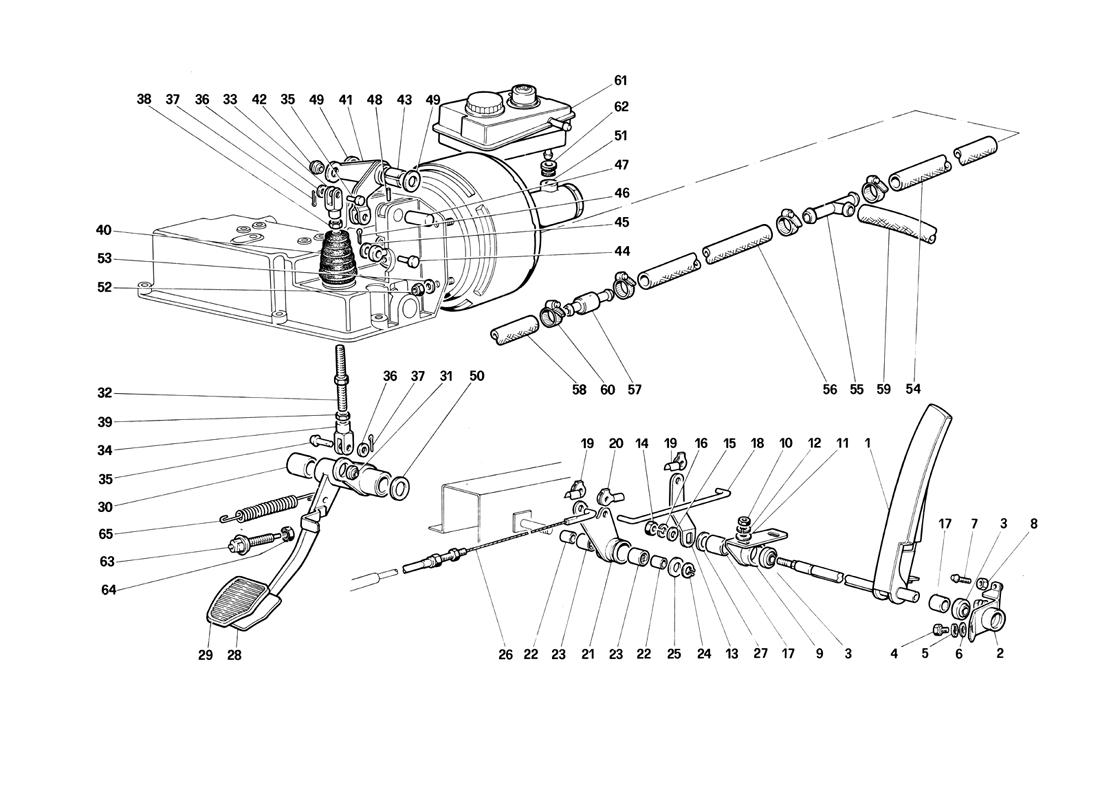

BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL

Go to Split View

BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124996 *Qty: 1 Accelerator pedal $467.52
Location: 2 Prev | Next Part: 116526 *Qty: 1 Pedal support $115.58
Location: 3 Prev | Next Part: 122430 *Qty: 2 Ball joint $207.51
Location: 4 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 106852 *Qty: 2 Sping washer Superseded
Location: 6 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 7 Prev | Next Part: 100640 *Qty: 1 Adjusting screw $7.70
Location: 8 Prev | Next Part: 16102311 *Qty: 1 Lock nut Superseded
Location: 9 Prev | Next Part: 116528 *Qty: 9 Support for relay lever $111.37
Location: 10 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 11 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 12 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 124997 *Qty: 1 Accelerator control lever $9.45
Location: 14 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 15 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 16 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 17 Prev | Next Part: 117991 *Qty: 2 Spacer $3.34
Location: 18 Prev | Next Part: 124998 *Qty: 1 Tie rod $11.56
Location: 19 Prev | Next Part: 119550 *Qty: 2 Fastened $1.01
Location: 20 Prev | Next Part: 119551 *Qty: 1 Fastened $1.01
Location: 21 Prev | Next Part: 124999 *Qty: 1 Relay lever $92.64
Location: 22 Prev | Next Part: 125001 *Qty: 2 Inner ring $9.97
Location: 23 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.74
Location: 24 Prev | Next Part: 11065676 *Qty: 1 Circlip $0.90
Location: 25 Prev | Next Part: 117311 *Qty: 1 Washer $0.90
Location: 26 Prev | Next Part: 125002 *Qty: 1 Accelerator control cable $133.88
Location: 27 Prev | Next Part: 105929 *Qty: 1 Shim 0,3 mm. thick $0.95
Location: 27 Prev | Next Part: 105931 *Qty: 1 Shim 0,7 mm. Thick $1.00
Location: 27 Prev | Next Part: 105930 *Qty: 1 Shim 0,5 mm. thick $2.29
Location: 28 Prev | Next Part: 119460 *Qty: 1 Brake pedal $317.82
Location: 29 Prev | Next Part: 106950 *Qty: 1 Pedal cover $32.46
Location: 30 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 31 Prev | Next Part: 100424 *Qty: 1 Ball joint Call
Location: 32 Prev | Next Part: 119164 *Qty: 1 Tie rod $132.92
Location: 33 Prev | Next Part: 104910 *Qty: 1 Fork, R.H. thread $10.85
Location: 34 Prev | Next Part: 104911 *Qty: 1 Fork, L.H. thread $26.62
Location: 35 Prev | Next Part: 10033411 *Qty: 2 Pin Superseded
Location: 36 Prev | Next Part: 103167 *Qty: 2 Washer $5.08
Location: 37 Prev | Next Part: 10796401 *Qty: 2 Cotter pin Superseded
Location: 38 Prev | Next Part: 103160 *Qty: 1 Nut, L.H. thread
After exhaustion use no. 11690911
Superseded
Location: 39 Prev | Next Part: 103157 *Qty: 1 Nut, R.H. thread
After exhaustion use no. 10788711
Superseded
Location: 40 Prev | Next Part: 112157 *Qty: 1 Bellows $13.14
Location: 41 Prev | Next Part: 121248 *Qty: 1 Brake booster control lever $135.01
Location: 42 Prev | Next Part: 100424 *Qty: 1 Ball joint Call
Location: 43 Prev | Next Part: 112161 *Qty: 1 Bush $39.23
Location: 44 Prev | Next Part: 10033411 *Qty: 1 Pin Superseded
Location: 45 Prev | Next Part: 10730521 *Qty: 1 Washer $3.01
Location: 46 Prev | Next Part: 10796401 *Qty: 1 Cotter pin Superseded
Location: 47 Prev | Next Part: 112165 *Qty: 1 Lever supporting pin $14.20
Location: 48 Prev | Next Part: 114623 *Qty: 1 Lock pin $0.90
Location: 49 Prev | Next Part: 112126 *Qty: 2 Shim $0.90
Location: 50 Prev | Next Part: 106083 *Qty: 1 Shim $1.14
Location: 51 Prev | Next Part: 121556 *Qty: 1 Brake booster Call
Location: 52 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 53 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 54 Prev | Next Part: 125761 *Qty: 1 Pipe to 3 way union $210.12
Location: 55 Prev | Next Part: 100881 *Qty: 1 3 way union $6.46
Location: 56 Prev | Next Part: 120232 *Qty: 1 Pipe from 3 way union to valve Call
Location: 57 Prev | Next Part: 101538 *Qty: 1 No return valve
After exhaustion use no. 128435
Superseded
Location: 58 Prev | Next Part: 127213 *Qty: 1 Pipe from valve to manifold $19.52
Location: 59 Prev | Next Part: 125031 *Qty: 1 Pipe from 3 way union to vacuum pump $15.92
Location: 60 Prev | Next Part: 12179590 *Qty: 8 Clamp Superseded
Location: 61 Prev | Next Part: 119566 *Qty: 1 Oil reservoir Superseded
Location: 62 Prev | Next Part: 106625 *Qty: 2 Seal ring Superseded
Location: 63 Prev | Next Part: 101663 *Qty: 1 Stop light control switch $14.98
Location: 64 Prev | Next Part: 101662 *Qty: 1 Shoch absorbing nut $3.73
Location: 65 Prev | Next Part: 141531 *Qty: 1 Clutch pedal return spring $20.15

* Quantity shown indicates the number of pieces used in the diagram.
