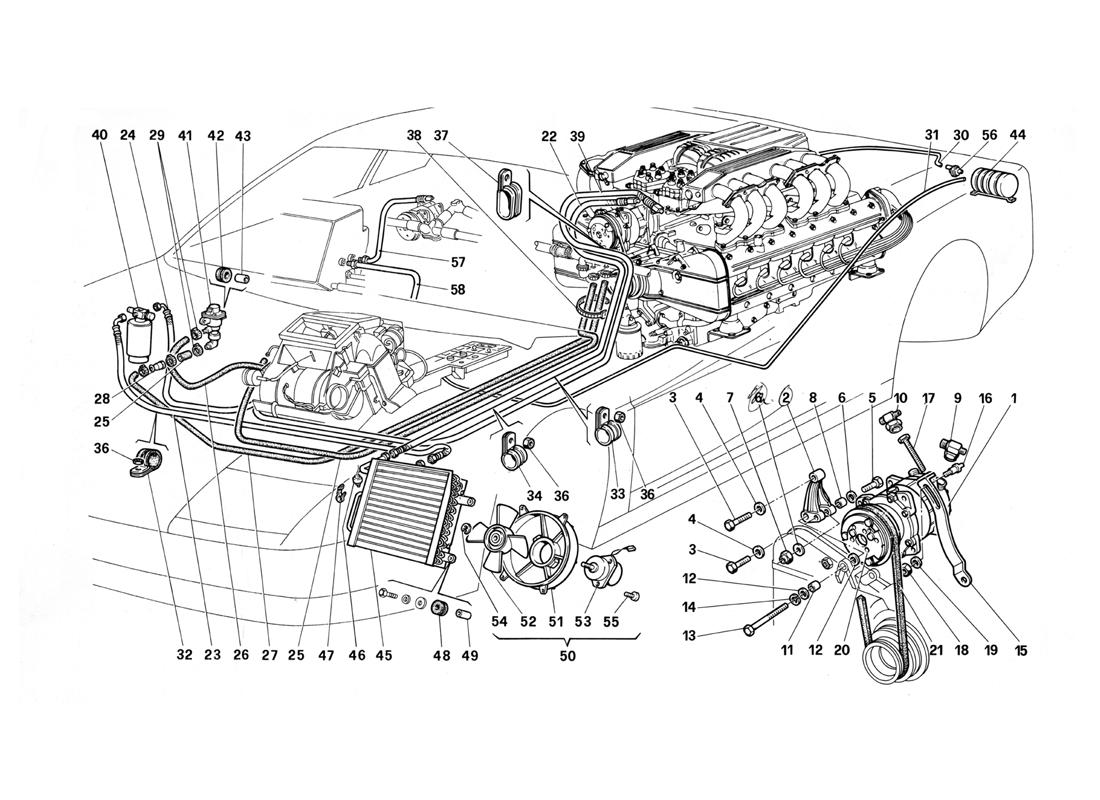

AIR CONDITIONING SYSTEM

AIR CONDITIONING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 123205 1 Compressor $2,629.13
2 122963 1 Compressor support $126.43
3 121573 2 Screw Unavailable
4 12601471 2 Washer Superseded
5 11288021 1 Screw $0.90
6 14496601 2 Washer Superseded
7 12574511 1 Nut Superseded
8 123180 1 Spacer Unavailable
9 127786 1 Intake union - Not for US Unavailable
9 124333 1 Intake union - For US $321.65
10 126298 1 Outlet union $2,030.39
11 121100 1 Bushing union $3.63
12 103025 2 Washer Unavailable
13 15541721 1 Screw $1.56
14 106854 1 Washer Superseded
15 123181 1 Tension adjusting bracket $143.87
16 123188 1 Pin for adjusting bracket $120.00
17 125668 1 Tension adjusting screw $1.58
18 16104111 1 Nut Superseded
19 14496501 1 Washer Unavailable
20 123813 1 Electromagnetic joint $1,169.71
21 122973 1 Compressor belt $175.96
22 124022 1 Hose from compress/or to condeser Unavailable
23 124023 1 Hose from condeser to filter
For LHD
Unavailable
23 125441 1 Hose from condeser to filter
For RHD
$119.57
24 124024 1 Hose from filter to cooler
For LHD
$162.18
24 130918 1 Hose from filter to cooler
For RHD
$59.15
25 124027 1 Hose from engine to, heater Unavailable
26 125445 1 Hose from heater to valve
For RHD
$106.17
26 61615000 1 Hose from heater to valve
For LHD
$104.97
27 124029 1 Hose from valve to engine $200.28
28 124030 1 Metal undersize to engine $17.95
29 12179990 5 Clamp Superseded
30 127455 1 Hose from engine to vacuum reservoir
For US and CAT.
Unavailable
30 124031 1 Hose from engine to vacuum reservoir
Not for US and CAT.
$23.77
31 124032 1 Hose from reservoir to push-button panel Unavailable
32 10441490 2 Hose fastening bracket Unavailable
33 10441890 2 Hose fastening bracket $0.90
34 119463 1 Hose fastening bracket $51.50
35 125003 1 Sleeve $30.25
36 12574211 4 Nut Superseded
37 61712500 1 Hose fastening bracket $2.05
38 125727 2 Hose supporting clamp $1,267.71
39 127787 1 Hose from evaporator to compressor
Not for US - C8 - SA and CAT
$643.31
40 129102 1 Pressostat
For filter - no. 129101
$116.93
40 129101 1 Dryer filter
After exhaustion no. 114730
$279.62
40 114730 1 Dryer filter
Until exhaustion
Superseded
41 61079000 1 Electromagnetic valve Unavailable
42 103549 2 Vibration - damping bushing $1.50
43 103550 2 Spacer $6.82
44 61642700 1 Vacuum reservoir complete with valve $759.93
45 61400300 1 Condenser $2,809.56
46 61047900 1 Bimetallic thermocontact Unavailable
47 60815000 1 Clip $3.45
48 103549 4 Vibration-damping bushing $1.50
49 113550 4 Spacer $131.30
50 131647 1 Fan assembly Superseded
51 60870300 1 Air conveyor Unavailable
52 122953 1 Fan Unavailable
53 117546 1 Motor Unavailable
54 11087876 1 Stop ring Unavailable
55 123298 3 Screw Unavailable
56 62507200 1 Single-action valve $25.25
57 125851 1 Hose from exchanger to compressor
For US - C8 - SA and CAT.
Unavailable
58 145539 1 Hose from evaporator to exchanger RHDE $288.28
58 125852 1 Hose from evaporator to exchanger
For US - C8 - SA and CAT
$795.33

* Quantity shown indicates the number of pieces used in the diagram.
