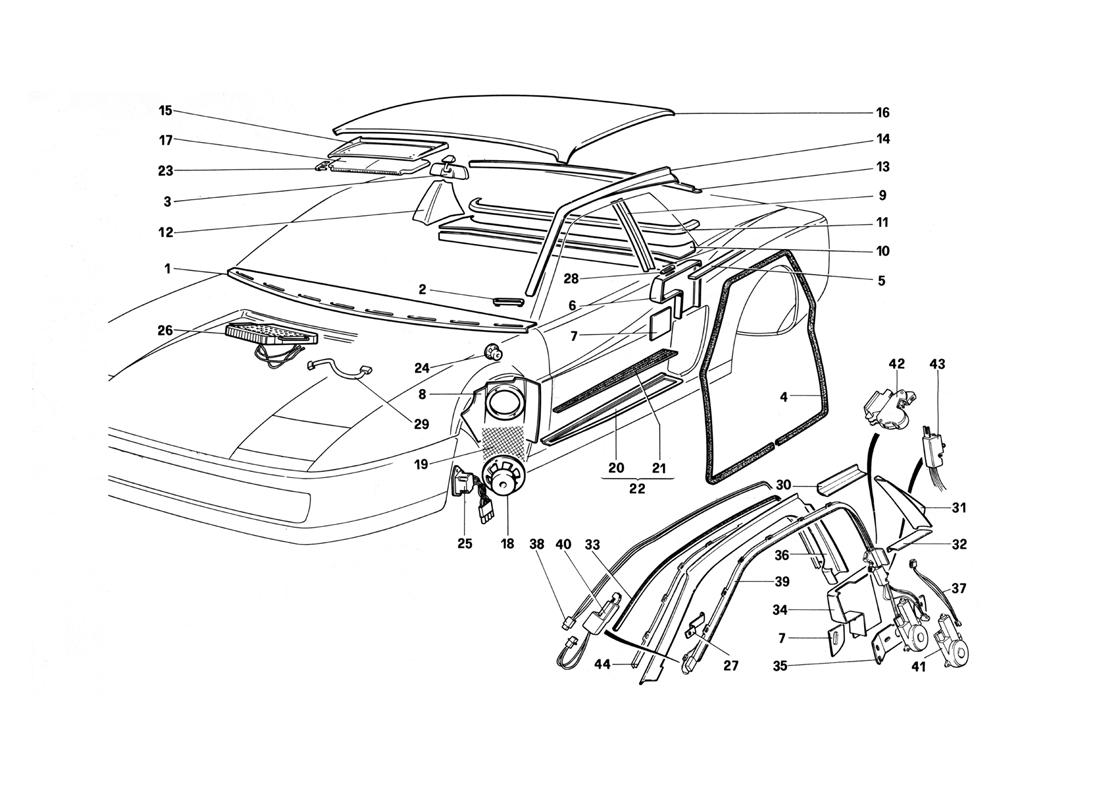

ACCESSORIES AND TRIMS

Go to Split View

ACCESSORIES AND TRIMS

Location Part # Quantity* Description Price Add To Cart
1 61512100 1 Windshield lower trim $692.98
2 61512200 7 Air outlet $42.08
3 61548200 1 Inner rear view mirror Superseded
4 61528200 2 Door gasket $233.73
5 61512500 1 Left side trim
Not for US 		$171.27
5 61512400 1 Right side trim
Not for US 		$146.85
6 61512700 1 Left side rear panel
Not for US 		$799.47
6 61512600 1 Right side rear panel
Not for US 		$799.47
7 61558600 1 Right side panel
For US 		$54.22
7 61512800 1 Right side panel
Not for US 		$114.25
7 61558700 1 Left side panel
For US 		$54.40
7 61512900 1 Left side panel
Not for US 		$114.25
8 61550700 1 L.H. side front panel
For US 		$426.14
8 61513100 1 Left side front panel LHD
Not for US 		$315.38
8 61534200 1 Left side front panel RHD $575.28
8 61534300 1 Right side front panel RHD $575.28
8 61513000 1 Right side front panel LHD
Not for US 		Unavailable
8 61550600 1 R.H. side front panel
For US 		$428.19
9 61556600 1 Trim for left central fender
For US 		Unavailable
9 61513300 1 Trim for left central fender
Not for US 		Superseded
9 61556500 1 Trim for right central fender
For US 		$197.11
9 61513200 1 Trim for right central fender
Not for US 		$97.12
10 61513400 1 Rear window plane $1,100.08
11 61513500 1 Rear window lower trim $587.44
12 61513700 1 Trim for rear left fender
Not for US 		$402.29
12 61513600 1 Trim for rear right fender
Not for US 		$571.22
13 61513800 1 Rear window upper trim
Not for US 		$945.57
13 61556700 1 Rear window upper trim
For US 		$497.31
14 61513900 1 Trim for roof right side
Not for US 		Unavailable
14 61514000 1 Trim for roof left side
Not for US 		Unavailable
15 61514300 1 Right windshield upper trim Unavailable
15 61514400 1 Left windshield upper trim $1,806.72
16 61514500 1 Inner roof $1,690.28
17 61514700 1 Left sun visor $1,324.05
17 61514600 1 Right sun visor $974.64
18 61643800 2 Loudspeaker
Until exhaustion 		Superseded
18 146217 2 Loudspeaker
From car No 85012 		$86.88
18 62433000 2 Loudspeaker
After exhaustion PN 61643800 - Until car No 85011 		$225.09
19 61514800 2 Loudspeaker grill Unavailable
20 61514900 1 Frame for right underdoor moulding Unavailable
20 61515000 1 Frame for left underdoor moulding $468.93
21 61515100 1 Rubber insert for right underdoor moulc $193.89
21 61515200 1 Rubber insert for left underdoor mouldmg Unavailable
22 61515300 1 Right underdoor moulding, complete Superseded
22 61515400 1 Left underdoor moulding, complete Superseded
23 61515500 2 Right sun visor support $34.04
23 61515600 2 Left sun visor support $34.04
24 62462700 2 Tweeter
After exhaustion PN 61643900 - Until car No 85011 		$106.82
24 61643900 2 Tweeter
Until exhaustion 		Superseded
24 146216 2 Tweeter
From car No 85012 		Unavailable
25 61644000 2 Loudspeaker filter
Until car No 850111 		$571.40
26 62515600 2 Amplifer
Not for US - SA - J - CH 		$502.04
26 62368000 2 Amplifer
For SA - CH 		Unavailable
27 61571200 3 Clip for L.H. moulding
For US 		$21.74
27 61571100 3 Clip for R.H. moulding
For US 		$21.74
28 61547200 2 Seat belts frame $22.17
29 62368100 1 Radio - amplifer cable $172.83
30 61556400 1 L.H. moulding
For US 		$172.61
30 61556300 1 R.H. moulding
For US 		$163.98
31 61551700 1 L.H. moulding
For US 		Unavailable
31 61551600 1 R.H. moulding
For US 		$390.31
32 61551000 1 R.H. moulding
For US 		$133.17
32 61551100 1 L.H. moulding
For US 		$98.64
33 61561200 2 Lower gasket
For US 		$47.56
33 61561100 2 Upper gasket
For US 		$47.99
34 61550900 1 L.H. moulding
For US 		$1,335.66
34 61550800 1 R.H. moulding
For US 		$1,335.66
35 61557100 1 L.H. bracket
For US 		$15.57
35 61557000 1 R.H. bracket
For US 		$15.57
36 61551500 1 L.H. bracket
For US 		$1,255.23
36 61551400 1 R.H. bracket
For US 		$762.81
37 61562900 2 Cables for motor
For US 		Unavailable
38 61569000 1 Passive belts, assy. Unavailable
38 61563000 2 Cables for guide
For US 		Unavailable
39 61560400 1 L.H. passive belt, complete Superseded
39 61560300 1 R.H. passive belt, complete Superseded
40 61560500 2 A station
For US 		$169.18
41 61555200 1 L.H. drive motor
For US 		Superseded
41 61555100 1 R.H. drive motor
For US 		Superseded
42 61561300 2 Slider
For US 		$564.46
43 61560700 2 B station
For US 		Unavailable
44 61561000 1 L.H. guide for passive belt
For US 		$1,142.40
44 61560900 1 R.H. guide for passive belt
For US 		$1,142.40

* Quantity shown indicates the number of pieces used in the diagram.
