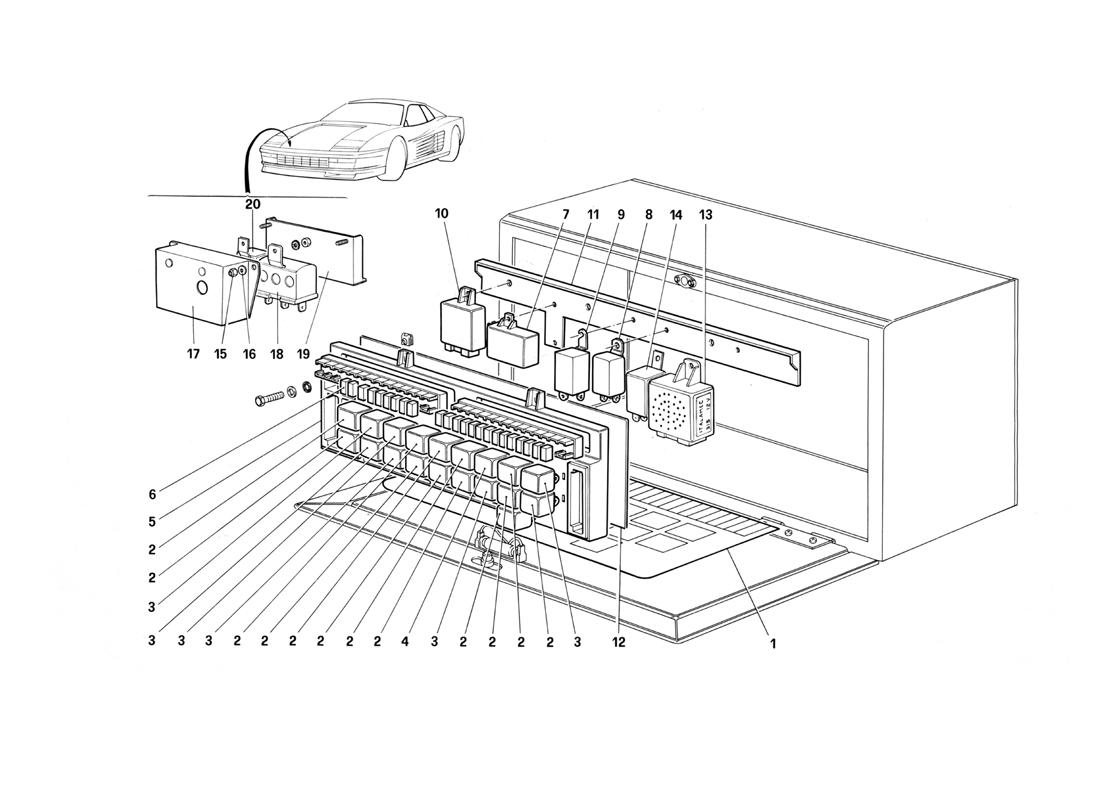

VALVES AND ELECTROMAGNETIC SWITCHES

Go to Split View

VALVES AND ELECTROMAGNETIC SWITCHES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 129575 *Qty: 1 Indication sheet $16.84
Location: 2 Prev | Next Part: 40130007 *Qty: 12 Relay $36.71
Location: 3 Prev | Next Part: 40130106 *Qty: 6 Relay $27.66
Location: 4 Prev | Next Part: 40293905 *Qty: 1 Relay Call
Location: 5 Prev | Next Part: 129108 *Qty: 1 Control unit, assy. Call
Location: 5 Prev | Next Part: 132204 *Qty: 1 Control unit, assy.
For GB from car No. 67883
Call
Location: 6 Prev | Next Part: 125241 *Qty: 3 10A Fuse $0.90
Location: 6 Prev | Next Part: 115549 *Qty: 1 Bridge
For control unit No. 132204
Call
Location: 6 Prev | Next Part: 125243 *Qty: 6 20A Fuse $0.90
Location: 6 Prev | Next Part: 125242 *Qty: 11 15A Fuse $0.90
Location: 6 Prev | Next Part: 125240 *Qty: 4 7,5A Fuse $0.90
Location: 7 Prev | Next Part: 61079400 *Qty: 1 A.C. control unit Call
Location: 8 Prev | Next Part: 124717 *Qty: 1 Tachometric relay $402.07
Location: 9 Prev | Next Part: 61651800 *Qty: 1 Intermittence for direction and hazard
For U.S. version
$101.92
Location: 9 Prev | Next Part: 61048000 *Qty: 1 Intermittence for direction and hazard for J
Not for U.S.
$100.23
Location: 10 Prev | Next Part: 119660 *Qty: 1 Wiper intermittence Call
Location: 11 Prev | Next Part: 124092 *Qty: 1 Control unit fixing plate $8.76
Location: 12 Prev | Next Part: 116055 *Qty: 1 Rear cover Call
Location: 13 Prev | Next Part: 61830700 *Qty: 1 Seal belts control unit
For U6 and SA
$85.41
Location: 13 Prev | Next Part: 133198 *Qty: 1 Seat belts control unit
For U7
$129.54
Location: 14 Prev | Next Part: 62346400 *Qty: 1 Dim-Dip, device, assy.
For GB from car 67883
$92.81
Location: 14 Prev | Next Part: 131486 *Qty: 1 Buzzer for lower oil pressure and exhaust hight temperature
For C7
$65.30
Location: 15 Prev | Next Part: 12574111 *Qty: 4 Nut
For GB
Superseded
Location: 16 Prev | Next Part: 10519301 *Qty: 4 Washer
For GB
$0.90
Location: 17 Prev | Next Part: 62342800 *Qty: 1 Protection cover
For GB
$49.38
Location: 18 Prev | Next Part: 62342000 *Qty: 1 Resistor
For GB
$15.25
Location: 19 Prev | Next Part: 132128 *Qty: 1 Support
For GB
$23.29
Location: 20 Prev | Next Part: 62342100 *Qty: 1 Relay
For GB
$29.77

* Quantity shown indicates the number of pieces used in the diagram.
