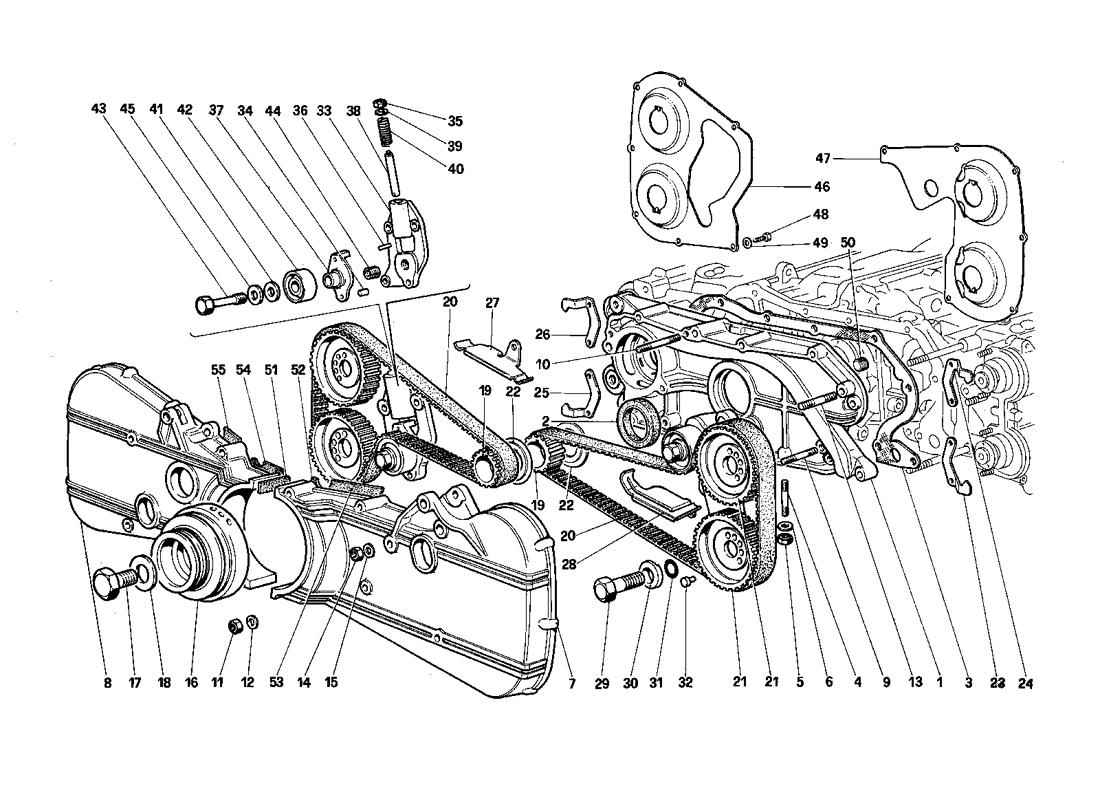

TIMING SYSTEM - CONTROLS

TIMING SYSTEM - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 122171 1 Front cover
Not available as spare part
Unavailable
1 121433 1 Front cover, complete
With complete crankcase
Unavailable
2 121094 1 Seal ring $40.46
3 122172 1 Gasket Superseded
4 13449621 3 Stud Superseded
5 12575621 3 Nut Superseded
6 12601471 1 Washer Superseded
7 126068 1 L.H. cover Unavailable
8 125778 1 R.H. cover $1,410.42
9 13544421 1 Stud
For A1
Unavailable
10 13544321 3 Stud
For A1 q.ty = 2
Superseded
11 101139 3 Nut $0.90
12 12601371 3 Washer Superseded
13 13450421 1 Stud Unavailable
14 12575611 1 Nut Superseded
15 12601471 1 Washer Superseded
16 125194 1 Damper
For A1, starting engine no. 456, US - CH - SA - B1
$6,304.98
16 122955 1 Damper
For A1 until engine no. 455
Unavailable
17 100476 1 Screw Superseded
18 102775 1 Washer $35.74
19 123112 2 Belt control gear $316.82
20 120731 2 Timing belt Superseded
21 123108 4 Timing belt pulley $751.51
22 120733 2 Timing belt lock ring $208.32
23 125309 1 Timing mark plate
L.H. exhaust, for A1 (Until engine No. 304)
$9.18
24 125310 1 Timing mark plate
L.H. intake, for A1 (Until engine no. 304)
$9.18
25 125176 1 Timing mark plate
R.H. exhaust, for A1 (Until engine no. 304)
$6.31
26 125177 1 Timing mark plate
R.H. intake, for A1 (Until engine no. 304)
$9.18
27 125248 1 R.H. belt protection plate
For A1 (Until engine no. 181)
$116.91
28 125249 1 LH. belt protection plate
For A1 (Until engine no. 181)
$82.28
29 16326431 4 Screw Unavailable
30 114802 4 Gear retaining washer $11.35
31 114808 4 Garter spring $5.24
32 114803 4 Drive pin $19.51
33 121044 2 Dowel Unavailable
34 125717 2 Dowel $3.88
35 102948 2 Self-locking nut Superseded
36 13933570 2 Spring pin Unavailable
37 121045 2 Belt stretcher support plate Unavailable
38 121047 2 Spring control pin $10.05
39 121558 2 Spring retaining washer Unavailable
40 121249 2 Spring $15.29
41 111460 2 Spacer Unavailable
42 PT512TR 1 Cambelt Tensioner (PAIR) $196.00
43 111458 2 Screw $69.34
44 13524670 2 Heli-coil Unavailable
45 102824 2 Washer $15.18
46 123705 1 R.H. belt protection plate
For A1 (Starting engine no. 305), US-CH-SA-B1
$661.31
47 123706 11 LH. belt protection plate
For A1 (Starting engine no. 305), US-CH-SA-B1
Unavailable
48 10977711 13 Screw Superseded
49 12601171 13 Washer Superseded
50 127635 1 Plug $4.16
51 128029 1 Protection $2.78
52 128030 1 Protection $8.57
53 128031 1 Protection $3.88
54 128032 1 Protection Unavailable
55 128033 1 Protection $3.19

* Quantity shown indicates the number of pieces used in the diagram.
