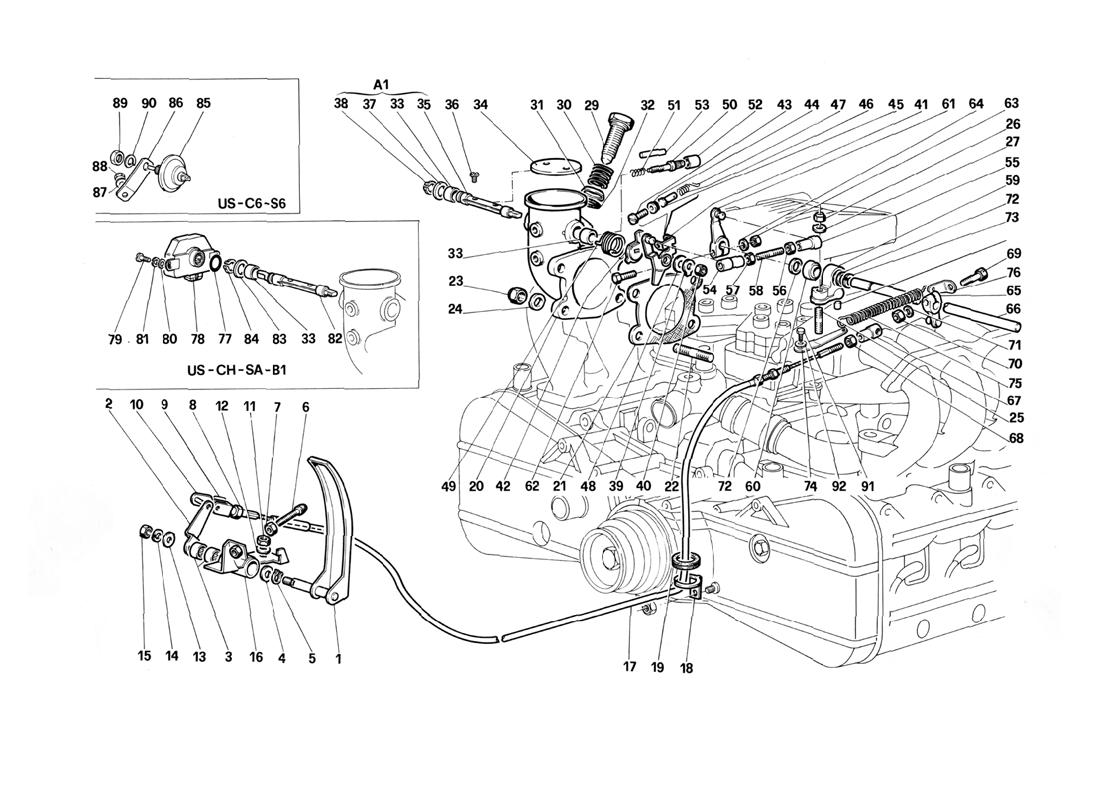

THROTTLE CONTROL

Go to Split View

THROTTLE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115393 *Qty: 1 Accelerator pedal $343.85
Location: 2 Prev | Next Part: 122184 *Qty: 1 Lever $8.49
Location: 3 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.44
Location: 4 Prev | Next Part: 108576 *Qty: 1 Shim $1.72
Location: 5 Prev | Next Part: 11066076 *Qty: 1 Seeger ring Superseded
Location: 6 Prev | Next Part: 105232 *Qty: 1 Adjusting screw $4.94
Location: 7 Prev | Next Part: 16102311 *Qty: 2 Nut Superseded
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Locknut Superseded
Location: 9 Prev | Next Part: 100655 *Qty: 1 Fork $140.78
Location: 10 Prev | Next Part: 100656 *Qty: 1 Pin with strap $2.71
Location: 11 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 12 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 13 Prev | Next Part: 10519601 *Qty: 1 Spacer Superseded
Location: 14 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 16 Prev | Next Part: 115396 *Qty: 1 Accelerator pedal support $54.20
Location: 17 Prev | Next Part: 123190 *Qty: 1 Cable
On exhaustion use no. 127445
Superseded
Location: 18 Prev | Next Part: 124220 *Qty: 1 Cable supporting bracket $143.31
Location: 19 Prev | Next Part: 10396680 *Qty: 1 Wire carrier $0.90
Location: 20 Prev | Next Part: 122892 *Qty: 1 RH throttle body, complete
For US
$916.91
Location: 20 Prev | Next Part: 123017 *Qty: 1 LH throttle body, complete
For US
$937.28
Location: 20 Prev | Next Part: 127140 *Qty: 1 LH throttle body, complete
For B1 - CH - SA
$937.28
Location: 20 Prev | Next Part: 122893 *Qty: 1 LH throttle body, complete
For A1
$864.27
Location: 20 Prev | Next Part: 127139 *Qty: 1 RH throttle body, complete
For B1 - CH - SA
$937.28
Location: 20 Prev | Next Part: 122891 *Qty: 1 RH throttle body, complete
For A1
$864.27
Location: 21 Prev | Next Part: 121123 *Qty: 2 Gasket Superseded
Location: 22 Prev | Next Part: 13541121 *Qty: 8 Stud Superseded
Location: 23 Prev | Next Part: 12575411 *Qty: 8 Nut Superseded
Location: 24 Prev | Next Part: 12601271 *Qty: 8 Washer Superseded
Location: 25 Prev | Next Part: 13543421 *Qty: 2 Stud Superseded
Location: 26 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 29 Prev | Next Part: 125716 *Qty: 2 Dowel $3.67
Location: 29 Prev | Next Part: 119308 *Qty: 2 Air adjusting screw $3.06
Location: 30 Prev | Next Part: 113571 *Qty: 2 Spring Call
Location: 31 Prev | Next Part: 115204 *Qty: 2 Cap $13.48
Location: 32 Prev | Next Part: 114919 *Qty: 2 Grommet $1.23
Location: 33 Prev | Next Part: 118128 *Qty: 4 Bushing (Not supplied) $11.60
Location: 34 Prev | Next Part: 113563 *Qty: 2 Throttle (Not supplied) $229.22
Location: 35 Prev | Next Part: 122894 *Qty: 2 Throttle shaft (Not supplied) Call
Location: 36 Prev | Next Part: 115361 *Qty: 4 Screw $0.90
Location: 37 Prev | Next Part: 128944 *Qty: 2 Spring washer $2.71
Location: 38 Prev | Next Part: 11065976 *Qty: 2 Seeger ring $0.90
Location: 39 Prev | Next Part: 113566 *Qty: 2 Lock washer $2.55
Location: 40 Prev | Next Part: 122897 *Qty: 2 Nut $0.90
Location: 41 Prev | Next Part: 122906 *Qty: 1 L.H. throttle control lever $51.60
Location: 41 Prev | Next Part: 122903 *Qty: 1 R.H. throttle control lever $52.48
Location: 42 Prev | Next Part: 122902 *Qty: 1 R.H. driven lever $34.48
Location: 42 Prev | Next Part: 122905 *Qty: 1 L.H. driven lever $33.45
Location: 43 Prev | Next Part: 122909 *Qty: 2 Screw $4.94
Location: 44 Prev | Next Part: 122910 *Qty: 2 Nut $9.16
Location: 45 Prev | Next Part: 122913 *Qty: 2 Pin $13.94
Location: 46 Prev | Next Part: 122914 *Qty: 2 Spring $11.55
Location: 47 Prev | Next Part: 122915 *Qty: 2 Cotter pin $0.90
Location: 48 Prev | Next Part: 122900 *Qty: 2 Spacer $48.05
Location: 49 Prev | Next Part: 122911 *Qty: 1 L.H. throttle return spring $306.50
Location: 49 Prev | Next Part: 122912 *Qty: 1 R.H. throttle return spring Call
Location: 50 Prev | Next Part: 114366 *Qty: 2 Adjusting screw $3.11
Location: 51 Prev | Next Part: 107824 *Qty: 2 Spring $1.18
Location: 52 Prev | Next Part: 111182 *Qty: 2 Protection cup $11.67
Location: 53 Prev | Next Part: 114367 *Qty: 2 Check pin $0.90
Location: 54 Prev | Next Part: 105617 *Qty: 2 Head
R.H. thread
Superseded
Location: 55 Prev | Next Part: 105619 *Qty: 2 Head
L.H. thread
$104.19
Location: 56 Prev | Next Part: 105586 *Qty: 2 Nut
L.H. thread
$5.54
Location: 57 Prev | Next Part: 15896411 *Qty: 2 Nut
R.H. thread
Superseded
Location: 58 Prev | Next Part: 121091 *Qty: 2 Tie rod $6.45
Location: 59 Prev | Next Part: 121053 *Qty: 2 Support for accelerator control rod Call
Location: 60 Prev | Next Part: 107620 *Qty: 2 Bail joint $322.62
Location: 61 Prev | Next Part: 126029 *Qty: 1 L.H. lever on accelerator control rod $94.42
Location: 61 Prev | Next Part: 121081 *Qty: 1 R.H. lever on accelerator control rod $121.92
Location: 62 Prev | Next Part: 125506 *Qty: 2 Screw $1.53
Location: 63 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 64 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 65 Prev | Next Part: 121475 *Qty: 1 Lever for cable accelerator $658.81
Location: 66 Prev | Next Part: 121474 *Qty: 1 Relay shaft $46.19
Location: 67 Prev | Next Part: 105617 *Qty: 1 Head
R.H. thread
Superseded
Location: 68 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 69 Prev | Next Part: 16043821 *Qty: 1 Screw Superseded
Location: 70 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 71 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 72 Prev | Next Part: 121477 *Qty: 2 Spacer $3.11
Location: 73 Prev | Next Part: 11066076 *Qty: 1 Seeger ring
For A1
Superseded
Location: 74 Prev | Next Part: 122818 *Qty: 1 Fixing spring plate
For B1 - US - CH - SA
$3.11
Location: 74 Prev | Next Part: 102952 *Qty: 1 Fixing spring plate $23.43
Location: 75 Prev | Next Part: 102951 *Qty: 1 Spring for lever $79.81
Location: 76 Prev | Next Part: 125044 *Qty: 1 Fixing spring plate $2.39
Location: 77 Prev | Next Part: 116736 *Qty: 1 Seal ring $1.07
Location: 78 Prev | Next Part: 131403 *Qty: 1 Microswitch
For B1 - S7
$258.08
Location: 78 Prev | Next Part: 121517 *Qty: 1 Microswitch
For US - CH - S6
$203.74
Location: 79 Prev | Next Part: 10444521 *Qty: 2 Screw $0.90
Location: 80 Prev | Next Part: 10519201 *Qty: 2 Washer Superseded
Location: 81 Prev | Next Part: 106848 *Qty: 2 Washer $0.90
Location: 82 Prev | Next Part: 122895 *Qty: 1 L.H. throttle shaft Call
Location: 83 Prev | Next Part: 121835 *Qty: 1 L.H. spring washer $1.67
Location: 84 Prev | Next Part: 104182 *Qty: 1 L.H. seeger ring $1.07
Location: 85 Prev | Next Part: 121748 *Qty: 1 Differential pressure switch $410.90
Location: 86 Prev | Next Part: 125845 *Qty: 1 Bracket $5.59
Location: 87 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 88 Prev | Next Part: 10725911 *Qty: 1 Nut Superseded
Location: 89 Prev | Next Part: 10791211 *Qty: 1 Nut $0.90
Location: 90 Prev | Next Part: 106854 *Qty: 1 Washer Superseded
Location: 91 Prev | Next Part: 10979411 *Qty: 1 Screw Superseded
Location: 92 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
