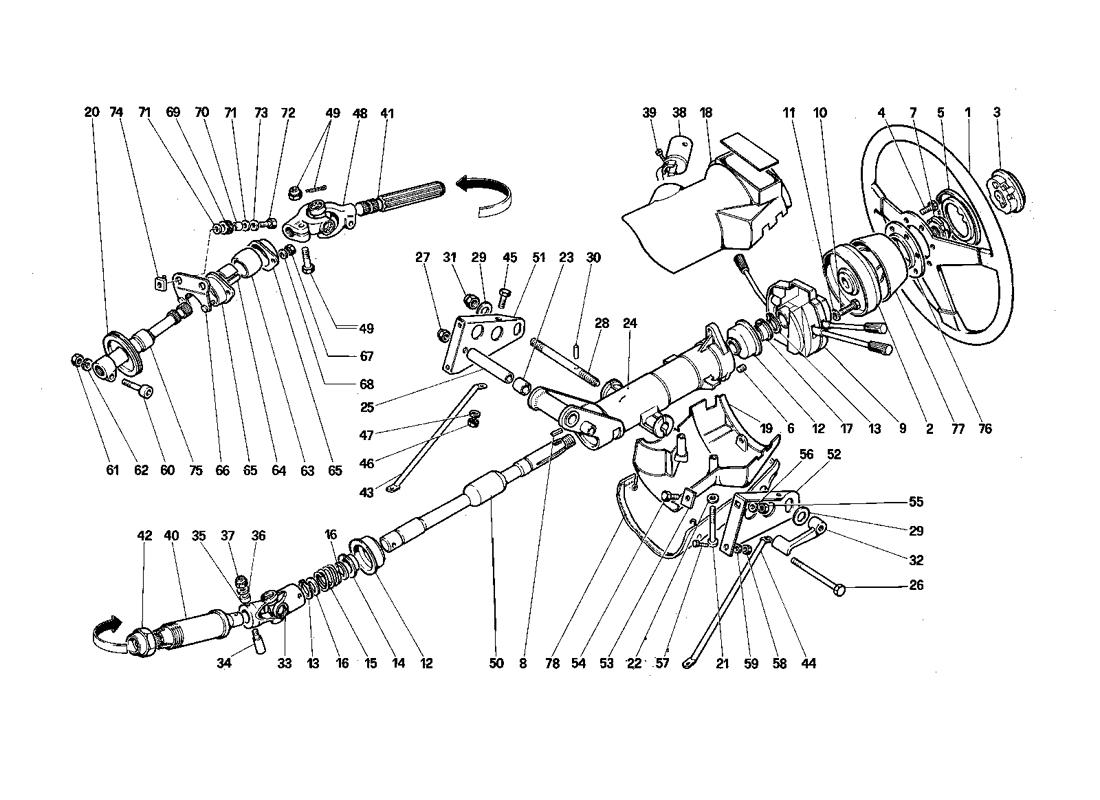

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119036 *Qty: 1 Steering wheel Call
Location: 2 Prev | Next Part: 122244 *Qty: 1 Steering wheel hub, complete Call
Location: 3 Prev | Next Part: 101071 *Qty: 1 Horn push button with holder Superseded
Location: 4 Prev | Next Part: 111189 *Qty: 6 Steering wheel securing screw $6.68
Location: 5 Prev | Next Part: 119040 *Qty: 1 Ring nut to cover screws $32.58
Location: 6 Prev | Next Part: 13525170 *Qty: 2 Heli-coil $0.90
Location: 7 Prev | Next Part: 106082 *Qty: 1 Upper shaft securing ring nut Call
Location: 8 Prev | Next Part: 101106 *Qty: 1 Key $0.90
Location: 9 Prev | Next Part: 121561 *Qty: 1 Main switching unit $1,041.35
Location: 10 Prev | Next Part: 10390211 *Qty: 2 Screw $0.90
Location: 11 Prev | Next Part: 12601171 *Qty: 2 Washer Superseded
Location: 12 Prev | Next Part: 121576 *Qty: 2 Bearing $1,444.60
Location: 13 Prev | Next Part: 11066876 *Qty: 2 Seeger ring $0.90
Location: 14 Prev | Next Part: 121577 *Qty: 1 Bearing retaining ring $2.80
Location: 15 Prev | Next Part: 121578 *Qty: 1 Bearing rataining spring $2.63
Location: 16 Prev | Next Part: 121579 *Qty: 2 Washer $2.09
Location: 17 Prev | Next Part: 125361 *Qty: 1 Bearing retaining ring $36.07
Location: 18 Prev | Next Part: 121580 *Qty: 1 Upper steering column cover $94.73
Location: 19 Prev | Next Part: 121581 *Qty: 1 Lower steering column cover Call
Location: 20 Prev | Next Part: 112466 *Qty: 1 Extension wire holder $23.30
Location: 21 Prev | Next Part: 13275217 *Qty: 2 Screw $0.90
Location: 22 Prev | Next Part: 12601171 *Qty: 2 Washer Superseded
Location: 23 Prev | Next Part: 121588 *Qty: 2 Bushing $3.00
Location: 24 Prev | Next Part: 122193 *Qty: 1 Steering columm support $555.07
Location: 25 Prev | Next Part: 121589 *Qty: 1 Pipe for steering wheel adjusting pivot $19.61
Location: 26 Prev | Next Part: 16045021 *Qty: 1 Screw $0.90
Location: 27 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 28 Prev | Next Part: 120988 *Qty: 1 Spindle for level $13.85
Location: 29 Prev | Next Part: 114865 *Qty: 2 Washer $2.12
Location: 30 Prev | Next Part: 10333610 *Qty: 1 Pin $0.90
Location: 31 Prev | Next Part: 16105111 *Qty: 1 Self-locking nut Superseded
Location: 32 Prev | Next Part: 131487 *Qty: 1 Shaft locking lever
For U7
Call
Location: 32 Prev | Next Part: 121590 *Qty: 1 Shaft locking lever
Not for U7
$430.76
Location: 33 Prev | Next Part: 112572 *Qty: 1 Upper joint $480.28
Location: 34 Prev | Next Part: 112573 *Qty: 1 Taper pin $41.68
Location: 35 Prev | Next Part: 112571 *Qty: 2 Spacer $7.49
Location: 36 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 37 Prev | Next Part: 12574221 *Qty: 2 Nut Superseded
Location: 38 Prev | Next Part: 121776 *Qty: 1 Diode
For parts N. 121610 - 122470
$11.91
Location: 38 Prev | Next Part: 129116 *Qty: 1 Anti-theif device
Not for US - SA, after exhaustion of P,N. 121610
Call
Location: 38 Prev | Next Part: 129115 *Qty: 1 Anti-thelf device
For US and SA, after exhaustion of P.N. 122470
Superseded
Location: 38 Prev | Next Part: 122470 *Qty: 1 Anti-thelf device
For US and SA, until exhausted
Superseded
Location: 38 Prev | Next Part: 121610 *Qty: 1 Anti-theif device
Not for US - SA, until exhausted
Call
Location: 39 Prev | Next Part: 121611 *Qty: 1 Screw $0.95
Location: 40 Prev | Next Part: 116484 *Qty: 1 Guide pipe $456.15
Location: 41 Prev | Next Part: 108557 *Qty: 1 Lower steering shaft $192.62
Location: 42 Prev | Next Part: 106870 *Qty: 1 Adjusting nut $13.48
Location: 43 Prev | Next Part: 123382 *Qty: 1 Right tie rod $43.26
Location: 44 Prev | Next Part: 123383 *Qty: 1 Left tie rod $354.60
Location: 45 Prev | Next Part: 10902121 *Qty: 4 Screw Superseded
Location: 46 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 47 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 48 Prev | Next Part: 103343 *Qty: 1 Lower joint
As alternate use PN 108362
Call
Location: 49 Prev | Next Part: 105032 *Qty: 1 Assy
For fitting of joint PN 103343
$13.48
Location: 50 Prev | Next Part: 125359 *Qty: 1 Upper steering shaft $449.14
Location: 51 Prev | Next Part: 120990 *Qty: 1 Right bracket $20.84
Location: 52 Prev | Next Part: 120991 *Qty: 1 Left bracket $20.84
Location: 53 Prev | Next Part: 124826 *Qty: 1 Safety plate $20.50
Location: 54 Prev | Next Part: 10922121 *Qty: 2 Screw Call
Location: 55 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 56 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 57 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 58 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 59 Prev | Next Part: 106852 *Qty: 2 Washer Superseded
Location: 60 Prev | Next Part: 125518 *Qty: 1 Screw $2.23
Location: 61 Prev | Next Part: 125519 *Qty: 1 Nut $1.04
Location: 62 Prev | Next Part: 12601271 *Qty: 1 Washer Superseded
Location: 63 Prev | Next Part: 103297 *Qty: 1 Ball $47.98
Location: 64 Prev | Next Part: 103370 *Qty: 1 Bushing Call
Location: 65 Prev | Next Part: 103292 *Qty: 2 Flange $12.79
Location: 66 Prev | Next Part: 123516 *Qty: 1 Extension support $9.82
Location: 67 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 68 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 69 Prev | Next Part: 103549 *Qty: 2 Pad $1.61
Location: 70 Prev | Next Part: 103550 *Qty: 2 Bushing $2.55
Location: 71 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 72 Prev | Next Part: 10902721 *Qty: 2 Screw $0.90
Location: 73 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 74 Prev | Next Part: 60659100 *Qty: 2 Caged nut Superseded
Location: 75 Prev | Next Part: 123517 *Qty: 1 Steering box extension $252.14
Location: 76 Prev | Next Part: 123099 *Qty: 1 Horn retaining plate $9.99
Location: 77 Prev | Next Part: 123098 *Qty: 1 Hub cover $50.27
Location: 78 Prev | Next Part: 61535700 *Qty: 1 Steering columm cover
Until car No. 67077
$172.84

* Quantity shown indicates the number of pieces used in the diagram.
