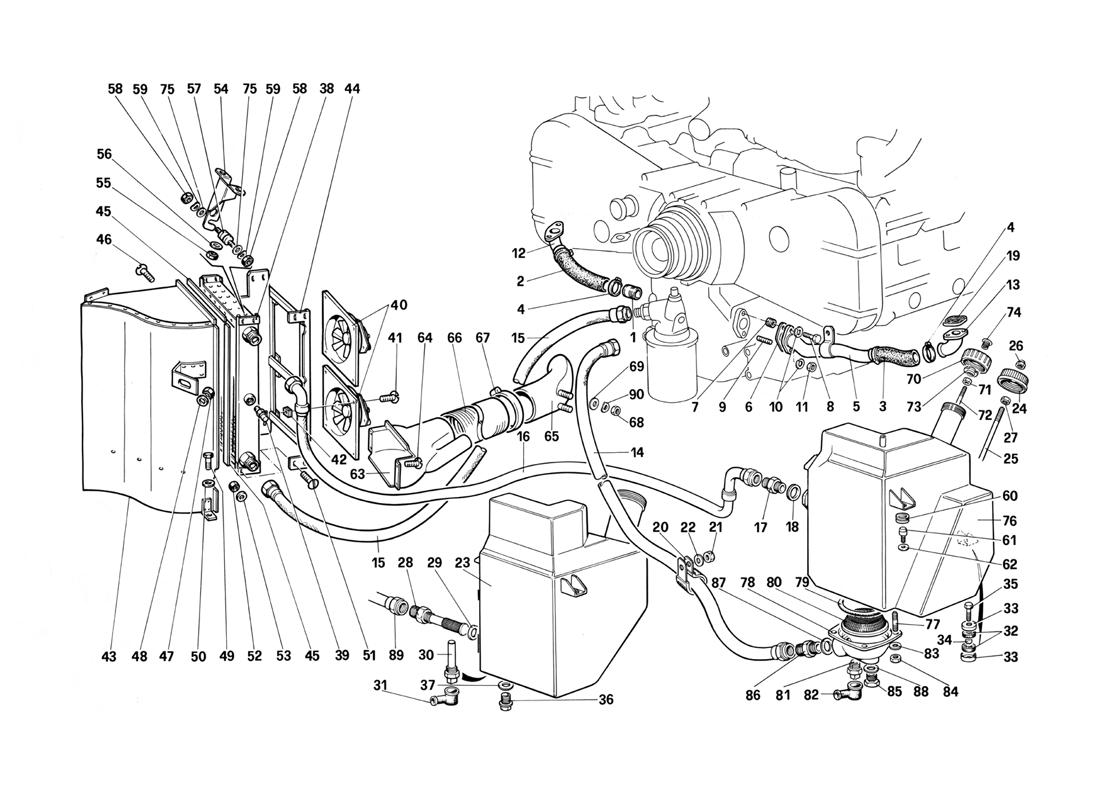

LUBRICATION

Go to Split View

LUBRICATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104561 *Qty: 1 Union $10.87
Location: 2 Prev | Next Part: 122828 *Qty: 1 Sleeve $32.89
Location: 3 Prev | Next Part: 122829 *Qty: 1 Sleeve $37.25
Location: 4 Prev | Next Part: 12173090 *Qty: 4 Clamp Superseded
Location: 5 Prev | Next Part: 125900 *Qty: 1 L.H. cyl. head oil exhaust pipe $57.92
Location: 6 Prev | Next Part: 104558 *Qty: 1 Gasket Superseded
Location: 7 Prev | Next Part: 13525570 *Qty: 1 Heli-coil on gearbox casing $3.27
Location: 8 Prev | Next Part: 10902321 *Qty: 1 Screw Superseded
Location: 9 Prev | Next Part: 11500221 *Qty: 1 Stud $0.90
Location: 10 Prev | Next Part: 10516471 *Qty: 2 Washer Superseded
Location: 11 Prev | Next Part: 15896221 *Qty: 1 Nut Superseded
Location: 12 Prev | Next Part: 122826 *Qty: 1 R.H. cy!. head oil exhaust port Call
Location: 13 Prev | Next Part: 122827 *Qty: 1 L.H. cyl. head oil exhaust port $23.43
Location: 14 Prev | Next Part: 124168 *Qty: 1 Hose, from reservoir fo pump $221.59
Location: 15 Prev | Next Part: 124169 *Qty: 1 Hose from pump to radiator $400.18
Location: 16 Prev | Next Part: 124170 *Qty: 1 Hose from radiator to reservoir
For reservoir no. 122860
$404.10
Location: 16 Prev | Next Part: 125903 *Qty: 1 Hose from radiator to reservoir
For reservoir no. 125517
$769.18
Location: 17 Prev | Next Part: 109371 *Qty: 1 Union $233.25
Location: 18 Prev | Next Part: 10264660 *Qty: 1 Gasket $5.90
Location: 19 Prev | Next Part: 122823 *Qty: 2 Gasket Superseded
Location: 20 Prev | Next Part: 106195 *Qty: 2 Clamp $45.54
Location: 21 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 22 Prev | Next Part: 14496401 *Qty: 1 Washer Superseded
Location: 23 Prev | Next Part: 122860 *Qty: 1 Oil reservoir
Not for US - CH - SA
$1,036.62
Location: 24 Prev | Next Part: 109719 *Qty: 1 Oil filler cap
Until exhausted
Superseded
Location: 25 Prev | Next Part: 124257 *Qty: 1 Oil dip stick
For cap 109719
Superseded
Location: 26 Prev | Next Part: 100044 *Qty: 1 Cap nut
For cap 109719
$0.90
Location: 27 Prev | Next Part: 15896211 *Qty: 1 Nut
For cap 169719
Superseded
Location: 28 Prev | Next Part: 122868 *Qty: 1 Filter on oil intake dust $161.66
Location: 29 Prev | Next Part: 109649 *Qty: 1 Seal ring $0.90
Location: 30 Prev | Next Part: 107576 *Qty: 1 Oil thermistor $135.30
Location: 31 Prev | Next Part: 107003 *Qty: 1 Protection cap $6.90
Location: 32 Prev | Next Part: 107978 *Qty: 4 Rubber bushing $1.46
Location: 33 Prev | Next Part: 107979 *Qty: 4 Cup $0.90
Location: 34 Prev | Next Part: 107980 *Qty: 2 Distance bushing $7.64
Location: 35 Prev | Next Part: 123029 *Qty: 2 Screw $0.90
Location: 36 Prev | Next Part: 10305171 *Qty: 1 Plug $2.39
Location: 37 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 38 Prev | Next Part: 123276 *Qty: 1 Oil radiator $1,112.15
Location: 39 Prev | Next Part: 123277 *Qty: 1 Thermal switch for fan $161.31
Location: 40 Prev | Next Part: 131510 *Qty: 2 Electric fan
Per B1 U7 - C7 - S7
$124.12
Location: 40 Prev | Next Part: 122961 *Qty: 2 Electric fan
Not for B1 - U7 - C7 - S7
$135.26
Location: 41 Prev | Next Part: 15688078 *Qty: 8 Screw Superseded
Location: 42 Prev | Next Part: 60674700 *Qty: 8 Clip $0.90
Location: 43 Prev | Next Part: 124181 *Qty: 1 Electric fan hood $79.12
Location: 44 Prev | Next Part: 124180 *Qty: 1 Air conveyor $340.45
Location: 45 Prev | Next Part: 124200 *Qty: 4 Self-adhesive gasket $1.58
Location: 46 Prev | Next Part: 15888078 *Qty: 2 Screw Call
Location: 47 Prev | Next Part: 15896221 *Qty: 1 Nut Superseded
Location: 48 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 49 Prev | Next Part: 10902321 *Qty: 1 Screw Superseded
Location: 50 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 51 Prev | Next Part: 10902121 *Qty: 1 Screw Superseded
Location: 52 Prev | Next Part: 15896221 *Qty: 1 Nut Superseded
Location: 53 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 54 Prev | Next Part: 123805 *Qty: 1 Radiator fastening upper bracket $114.30
Location: 55 Prev | Next Part: 12574221 *Qty: 2 Nut Superseded
Location: 56 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 57 Prev | Next Part: 102947 *Qty: 3 Vibration-damping pad $18.79
Location: 58 Prev | Next Part: 15896221 *Qty: 6 Nut Superseded
Location: 59 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 60 Prev | Next Part: 10397480 *Qty: 1 Wire carrier $2.05
Location: 61 Prev | Next Part: 125708 *Qty: 1 Pin Call
Location: 62 Prev | Next Part: 108242 *Qty: 1 Washer $1.72
Location: 63 Prev | Next Part: 124191 *Qty: 1 R.H. conveyor for brakes $268.27
Location: 63 Prev | Next Part: 124192 *Qty: 2 R.H. conveyor for brakes $268.27
Location: 64 Prev | Next Part: 15688007 *Qty: 3 Screw $0.90
Location: 65 Prev | Next Part: 124943 *Qty: 2 Rear conveyor $297.99
Location: 66 Prev | Next Part: 124940 *Qty: 1 R.H. hose $111.04
Location: 66 Prev | Next Part: 124941 *Qty: 1 L.H. hose $142.63
Location: 67 Prev | Next Part: 12174990 *Qty: 4 Clamp $1.12
Location: 68 Prev | Next Part: 15896221 *Qty: 4 Nut Superseded
Location: 69 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 70 Prev | Next Part: 126141 *Qty: 1 Cap
On exhaustion PN 109719
$39.74
Location: 71 Prev | Next Part: 15896211 *Qty: 1 Nut
For cap 126141
Superseded
Location: 72 Prev | Next Part: 126144 *Qty: 1 Oii dip stick
For cap 126141, for oil reservoir PN. 122860
$66.91
Location: 72 Prev | Next Part: 124691 *Qty: 1 Oil dip stick
For oil reservoir 125517
$42.63
Location: 73 Prev | Next Part: 101242 *Qty: 1 Ring nut
For cap 126141
$4.42
Location: 74 Prev | Next Part: 126142 *Qty: 1 Screw
For cap 126141
$50.44
Location: 75 Prev | Next Part: 12643701 *Qty: 8 Washer Superseded
Location: 76 Prev | Next Part: 125517 *Qty: 1 Oil reservoir
For US - CH - SA and for every car from 1 - 9 -85
$921.14
Location: 77 Prev | Next Part: 11500421 *Qty: 1 Stud Superseded
Location: 78 Prev | Next Part: 125473 *Qty: 1 Oil suction pan Call
Location: 79 Prev | Next Part: 125521 *Qty: 1 OR-ring $13.76
Location: 80 Prev | Next Part: 100332 *Qty: 1 Oil suction filter $14.40
Location: 81 Prev | Next Part: 104628 *Qty: 1 Oil thermistor $76.14
Location: 82 Prev | Next Part: 104628 *Qty: 1 Protection cap $76.14
Location: 83 Prev | Next Part: 12601271 *Qty: 4 Nut Superseded
Location: 84 Prev | Next Part: 12574211 *Qty: 4 Washer Superseded
Location: 85 Prev | Next Part: 10300711 *Qty: 1 Cap Superseded
Location: 86 Prev | Next Part: 110203 *Qty: 1 Nipple $123.96
Location: 87 Prev | Next Part: 10303460 *Qty: 1 Gasket Superseded
Location: 88 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 89 Prev | Next Part: 125475 *Qty: 1 Hose from reservoir the pump Call
Location: 90 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
