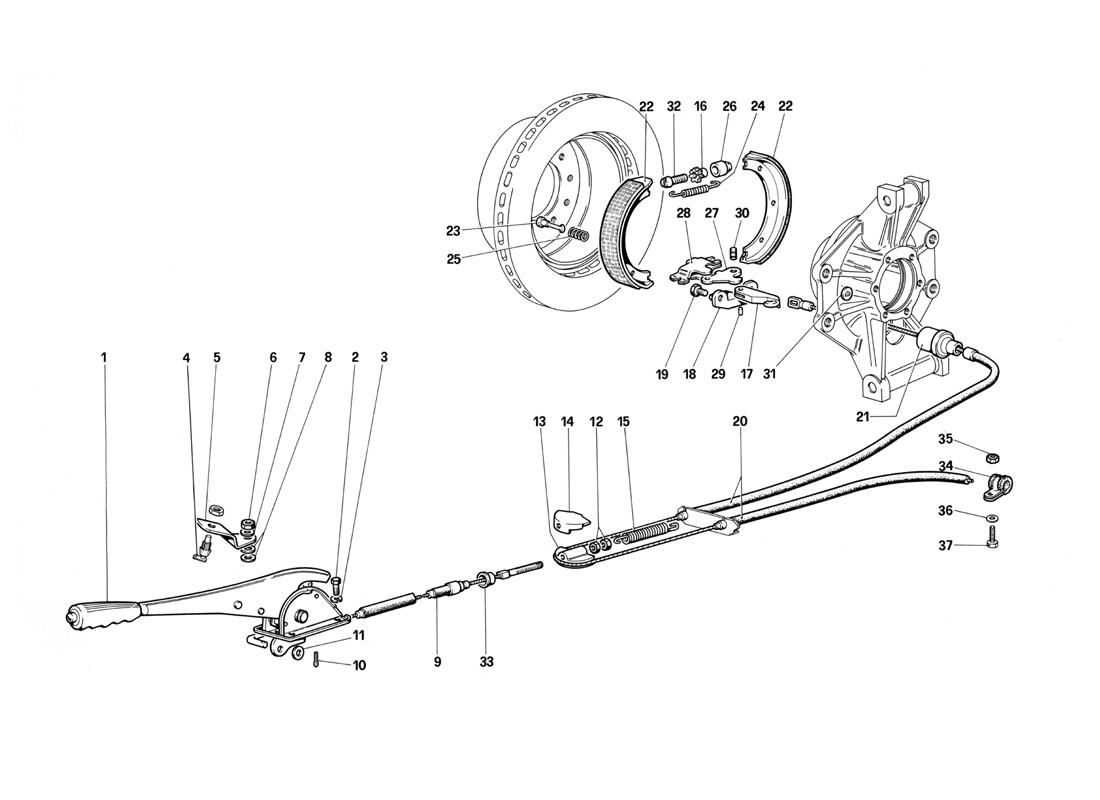

HAND-BRAKE CONTROL

Go to Split View

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118548 *Qty: 1 Hand-brake control lever $338.75
Location: 2 Prev | Next Part: 10902121 *Qty: 4 Screw Superseded
Location: 3 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 4 Prev | Next Part: 114318 *Qty: 1 Washer $27.12
Location: 5 Prev | Next Part: 114320 *Qty: 1 Bracket for switch $3.31
Location: 6 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 12605270 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 10519301 *Qty: 2 Flat washer (If required) $0.90
Location: 9 Prev | Next Part: 120960 *Qty: 1 Front cable $30.57
Location: 10 Prev | Next Part: 10796401 *Qty: 1 Cotter pin Superseded
Location: 11 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 12 Prev | Next Part: 16102311 *Qty: 2 Lock nut, R.H. thread Superseded
Location: 13 Prev | Next Part: 118552 *Qty: 1 Anchorage for rear cable $3.71
Location: 14 Prev | Next Part: 118553 *Qty: 1 Cable retaining plate $62.00
Location: 15 Prev | Next Part: 104895 *Qty: 1 Return spring $9.15
Location: 16 Prev | Next Part: 101286 *Qty: 2 Nut for adjusting screw $15.26
Location: 17 Prev | Next Part: 105270 *Qty: 2 Inner lever control fork $52.16
Location: 18 Prev | Next Part: 106243 *Qty: 2 Block on hub holder Call
Location: 19 Prev | Next Part: 106242 *Qty: 4 Screw securing block supporting hand-brake shoe control levers $4.24
Location: 20 Prev | Next Part: 120961 *Qty: 1 Rear cable
Until car no. 67077
Superseded
Location: 20 Prev | Next Part: 132397 *Qty: 1 Rear cable
From car no. 67079
Superseded
Location: 21 Prev | Next Part: 105735 *Qty: 2 Fork protective cap
After exhaustion use PN. 132129
Superseded
Location: 22 Prev | Next Part: 101270 *Qty: 4 Brake shoe Superseded
Location: 23 Prev | Next Part: 101275 *Qty: 4 Spring securing pin $18.56
Location: 24 Prev | Next Part: 101276 *Qty: 4 Return spring for shoe $14.02
Location: 25 Prev | Next Part: 101277 *Qty: 4 Spring $0.90
Location: 26 Prev | Next Part: 101279 *Qty: 2 Seat for adjusting screw $12.98
Location: 27 Prev | Next Part: 101280 *Qty: 2 Inner control lever $29.70
Location: 28 Prev | Next Part: 101281 *Qty: 2 Outer control lever $7.00
Location: 29 Prev | Next Part: 101282 *Qty: 2 Pin securing fork to inner lever $1.32
Location: 30 Prev | Next Part: 101283 *Qty: 2 Pin for joint $3.71
Location: 31 Prev | Next Part: 101284 *Qty: 4 Spring plate Call
Location: 32 Prev | Next Part: 101285 *Qty: 2 Screw $8.02
Location: 33 Prev | Next Part: 118554 *Qty: 1 Bushing $12.58
Location: 34 Prev | Next Part: 10441290 *Qty: 1 Clamp $0.90
Location: 35 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 36 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 37 Prev | Next Part: 10902121 *Qty: 1 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
