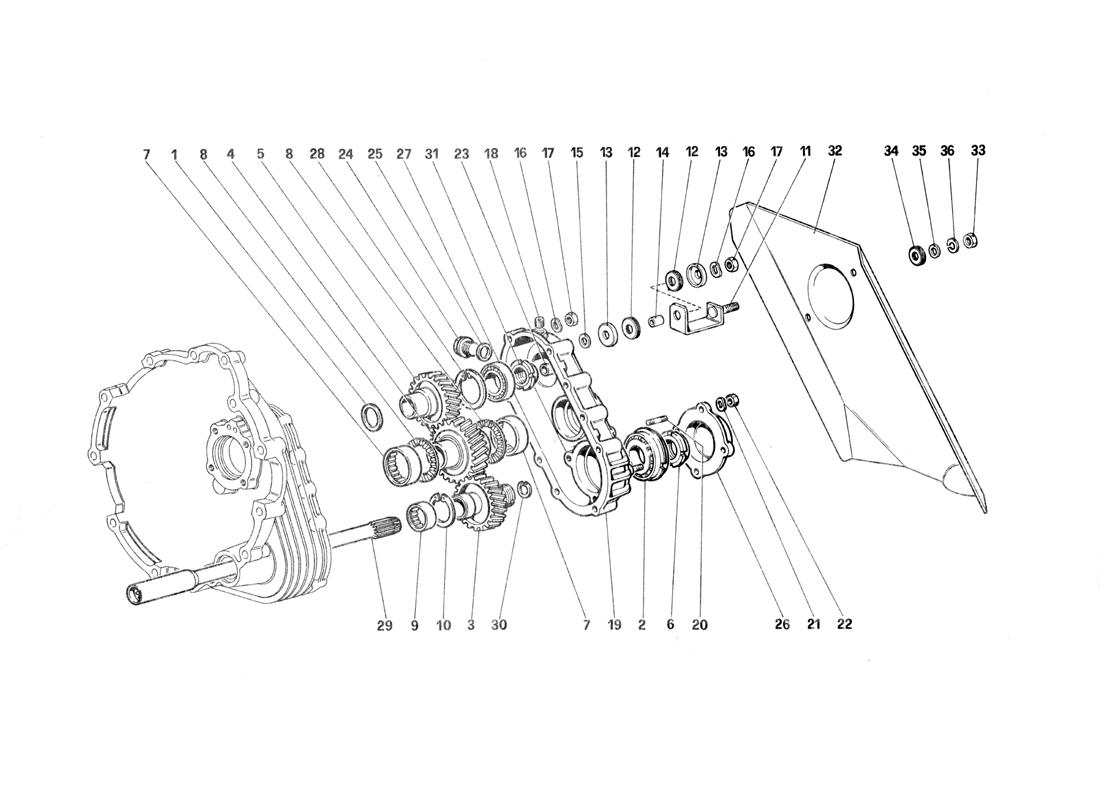

GEAR BOX TRANSMISSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124061 *Qty: 1 Spacer $5.09
Location: 2 Prev | Next Part: 116063 *Qty: 1 Bearing
After exhaustion use PN 126223
Superseded
Location: 3 Prev | Next Part: 126264 *Qty: 1 Driven gear
For CH and S6 use P.N. 124502
Call
Location: 4 Prev | Next Part: 125263 *Qty: 1 Intermediate gear
For CH and S6 use P.N. 124501
$780.10
Location: 5 Prev | Next Part: 125262 *Qty: 1 Drive gear
For CH and S6 use P.N. 124500
$830.86
Location: 6 Prev | Next Part: 100729 *Qty: 1 Ring nut Superseded
Location: 7 Prev | Next Part: 104840 *Qty: 2 Roller bearing $55.53
Location: 8 Prev | Next Part: 104841 *Qty: 2 Axial bearing $9.06
Location: 9 Prev | Next Part: 103095 *Qty: 1 Roller bearing $48.52
Location: 10 Prev | Next Part: 103096 *Qty: 1 Lock firm $2.92
Location: 11 Prev | Next Part: 124800 *Qty: 3 Bracket
For plate No, 124799
$42.91
Location: 11 Prev | Next Part: 128500 *Qty: 3 Bracket
For plate No. 128499
$16.81
Location: 12 Prev | Next Part: 107978 *Qty: 6 Rubber bushing $1.50
Location: 13 Prev | Next Part: 107979 *Qty: 6 Cup $0.90
Location: 14 Prev | Next Part: 107980 *Qty: 3 Distance tube $7.88
Location: 15 Prev | Next Part: 124801 *Qty: 3 Spacer $2.09
Location: 16 Prev | Next Part: 12601371 *Qty: 10 Washer Superseded
Location: 17 Prev | Next Part: 16100821 *Qty: 10 Nut $3.57
Location: 18 Prev | Next Part: 10269450 *Qty: 1 Plug $35.26
Location: 19 Prev | Next Part: 113114 *Qty: 1 Clutch housing cover $616.54
Location: 20 Prev | Next Part: 13543321 *Qty: 4 Stud Superseded
Location: 21 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 22 Prev | Next Part: 16100821 *Qty: 4 Nut $3.57
Location: 23 Prev | Next Part: 109336 *Qty: 1 Oil recovery pipe $73.72
Location: 24 Prev | Next Part: 10275001 *Qty: 1 Oil filler plug Superseded
Location: 25 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 26 Prev | Next Part: 102808 *Qty: 1 Small cover Superseded
Location: 27 Prev | Next Part: 112981 *Qty: 1 Bearing $251.99
Location: 29 Prev | Next Part: 11061076 *Qty: 1 Seeger ring $2.05
Location: 29 Prev | Next Part: 109343 *Qty: 1 Propeller shaft Superseded
Location: 30 Prev | Next Part: 11058275 *Qty: 1 Lock ring $0.90
Location: 31 Prev | Next Part: 125500 *Qty: 1 Ring nut Superseded
Location: 32 Prev | Next Part: 124799 *Qty: 1 Protection plate
Not for US-CH-SA, until exhausted
Superseded
Location: 32 Prev | Next Part: 128499 *Qty: 1 Protection plate
For US - CH - SA, after exhaustion P.N
$453.52
Location: 33 Prev | Next Part: 15896211 *Qty: 3 Nut Superseded
Location: 34 Prev | Next Part: 105924 *Qty: 3 Insulating washer Superseded
Location: 35 Prev | Next Part: 12643701 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 106850 *Qty: 3 Spring washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
