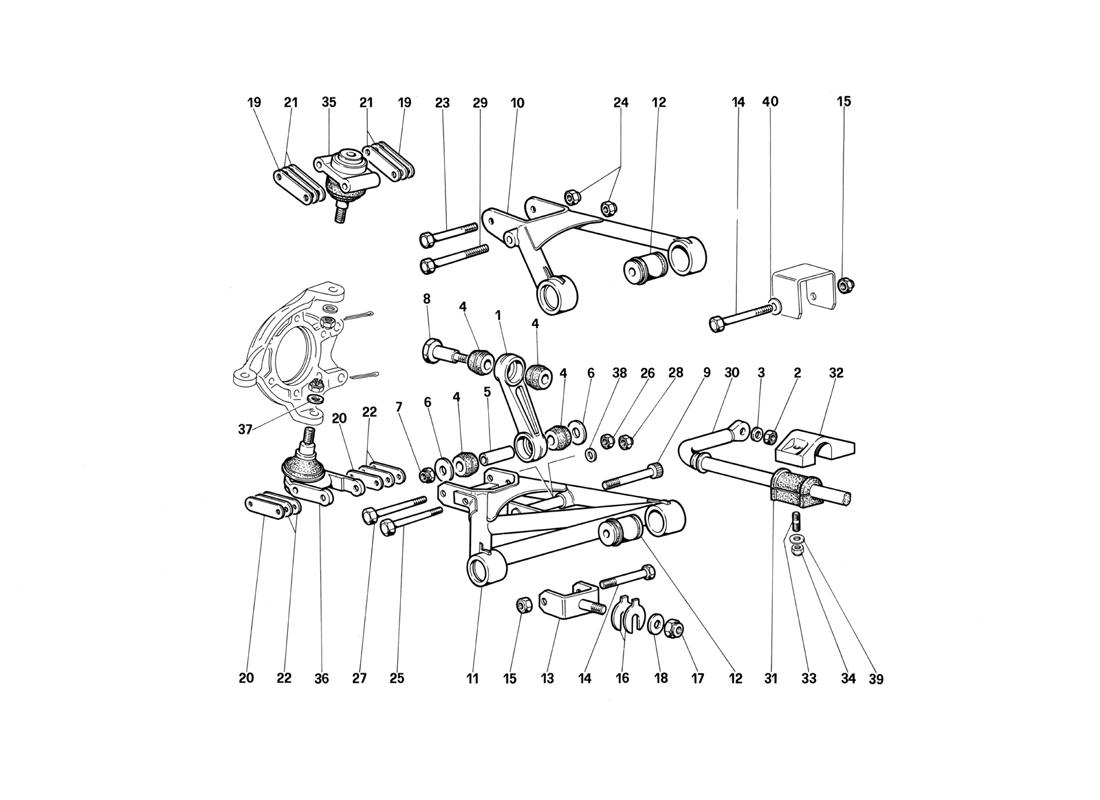

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 114691 *Qty: 2 Rod link $768.73
Location: 2 Prev | Next Part: 16103621 *Qty: 2 Nut $0.90
Location: 3 Prev | Next Part: 106854 *Qty: 2 Washer Superseded
Location: 4 Prev | Next Part: 100984 *Qty: 8 Grcmmet $15.95
Location: 5 Prev | Next Part: 100985 *Qty: 2 Distance tube $27.55
Location: 6 Prev | Next Part: 117730 *Qty: 4 Washer $7.65
Location: 7 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 8 Prev | Next Part: 121679 *Qty: 2 Pin $105.27
Location: 9 Prev | Next Part: 125396 *Qty: 2 Screw $66.06
Location: 10 Prev | Next Part: 121392 *Qty: 2 Right upper lever $1,812.58
Location: 10 Prev | Next Part: 121393 *Qty: 2 Left upper lever $1,812.58
Location: 11 Prev | Next Part: 121390 *Qty: 2 Right lower lever $1,787.11
Location: 11 Prev | Next Part: 121391 *Qty: 2 Left lower lever Call
Location: 12 Prev | Next Part: 111617 *Qty: 8 Flamblock Superseded
Location: 13 Prev | Next Part: 127639 *Qty: 4 Lower fork $178.92
Location: 14 Prev | Next Part: 106419 *Qty: 8 Screw
After exhaustion use P.N.1211693
$23.46
Location: 15 Prev | Next Part: 16105121 *Qty: 8 Nut Superseded
Location: 16 Prev | Next Part: 107025 *Qty: 8 Shim for lower fork, thickness 1 mm. (if required) Superseded
Location: 16 Prev | Next Part: 107418 *Qty: 8 Ditto thickness 1.5 mm. Superseded
Location: 16 Prev | Next Part: 107421 *Qty: 8 Ditto thickness 3 mm. Superseded
Location: 16 Prev | Next Part: 107419 *Qty: 8 Ditto thickness 2 mm. Superseded
Location: 16 Prev | Next Part: 107420 *Qty: 8 Ditto thickness 2.5 mm. Superseded
Location: 16 Prev | Next Part: 107422 *Qty: 8 Ditto thickness 3.25 mm. Superseded
Location: 17 Prev | Next Part: 12575821 *Qty: 4 Nut Superseded
Location: 18 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 19 Prev | Next Part: 115072 *Qty: 4 Upper adjusting plate for caster angle (if required) $28.40
Location: 20 Prev | Next Part: 124365 *Qty: 4 Lower adjusting plate for caster angle (if required) $6.96
Location: 21 Prev | Next Part: 103256 *Qty: 8 Clearance adjusting plate, upper $4.69
Location: 22 Prev | Next Part: 125397 *Qty: 8 Clearance adjusting plate, lower $0.91
Location: 23 Prev | Next Part: 109013 *Qty: 2 Screw $64.42
Location: 24 Prev | Next Part: 12574521 *Qty: 4 Nut $0.90
Location: 25 Prev | Next Part: 112441 *Qty: 2 Screw $110.02
Location: 26 Prev | Next Part: 12574521 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 15971621 *Qty: 2 Screw $0.90
Location: 28 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 29 Prev | Next Part: 114818 *Qty: 2 Screw $59.77
Location: 30 Prev | Next Part: 124985 *Qty: 1 Stabilizer rod $1,702.21
Location: 31 Prev | Next Part: 118120 *Qty: 2 Rod retaining pad
For support P.N. 114702
$75.90
Location: 31 Prev | Next Part: 130606 *Qty: 2 Rod retaining pad
For support P.N. 133227
$104.89
Location: 32 Prev | Next Part: 114702 *Qty: 2 Support
After exhaustion use P.N. 133227
Superseded
Location: 33 Prev | Next Part: 13543121 *Qty: 4 Stud Superseded
Location: 34 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 35 Prev | Next Part: 116280 *Qty: 2 Upper ball joint $163.79
Location: 36 Prev | Next Part: 114462 *Qty: 2 Lower ball joint Superseded
Location: 37 Prev | Next Part: 101445 *Qty: 2 Washer $0.90
Location: 38 Prev | Next Part: 106616 *Qty: 2 Washer $1.72
Location: 39 Prev | Next Part: 102683 *Qty: 4 Washer $13.65
Location: 40 Prev | Next Part: 106426 *Qty: 8 Washer
For screw P.N. 106419
$3.04

* Quantity shown indicates the number of pieces used in the diagram.
