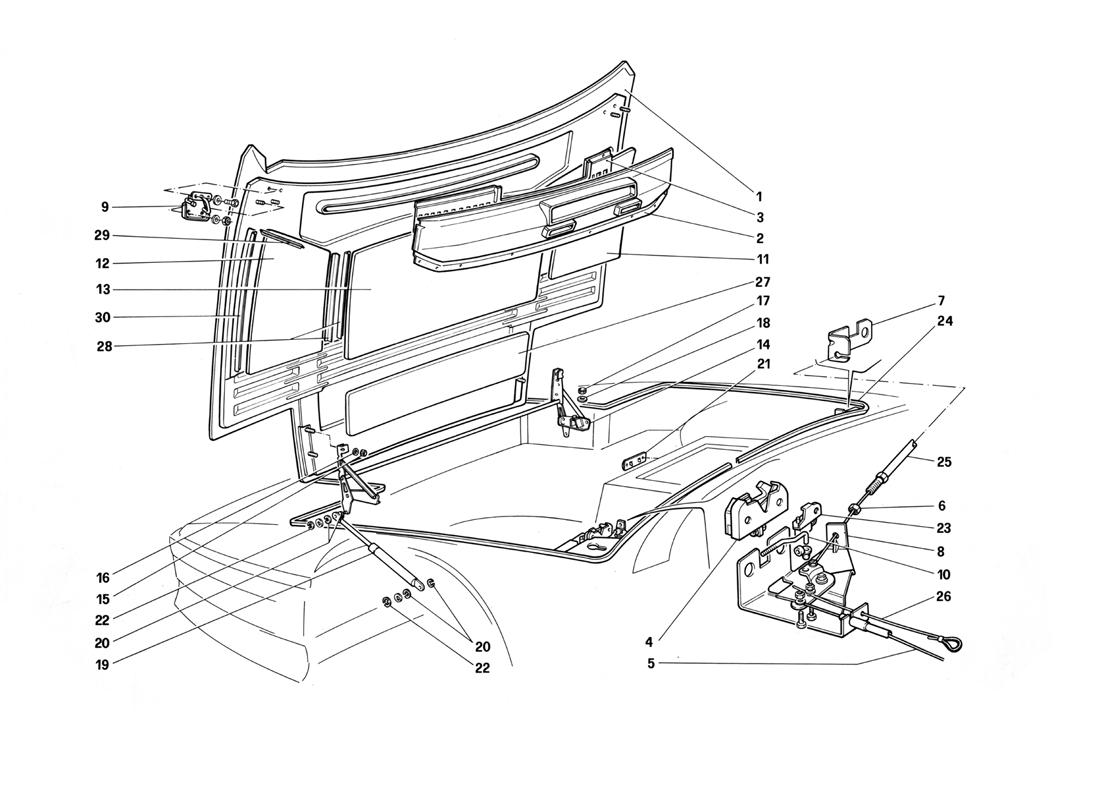

FRONT HOOD

Go to Split View

FRONT HOOD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61495400 *Qty: 1 Front bonnet RHD $6,358.85
Location: 1 Prev | Next Part: 61495500 *Qty: 1 Front bonnet LHD $7,518.90
Location: 2 Prev | Next Part: 61495600 *Qty: 1 Water shield panel, LHD
Until car no
$274.23
Location: 2 Prev | Next Part: 61529800 *Qty: 1 Water shield panel, RHD
Until car no
$247.90
Location: 2 Prev | Next Part: 61544000 *Qty: 1 Water shield panel, LHD
From car no
Call
Location: 2 Prev | Next Part: 61546000 *Qty: 1 Water shield panel, RHD
From car no
$154.01
Location: 3 Prev | Next Part: 61495700 *Qty: 1 Grill
Until exhausted
Superseded
Location: 3 Prev | Next Part: 61558500 *Qty: 1 Grill
With protection net, after exhaustion P.N. 61495700
$82.04
Location: 4 Prev | Next Part: 61497600 *Qty: 2 Bonnet lock Superseded
Location: 5 Prev | Next Part: 61497300 *Qty: 1 Cable for opening bonnet $58.45
Location: 6 Prev | Next Part: 14084211 *Qty: 2 Nut $0.90
Location: 7 Prev | Next Part: 61495900 *Qty: 1 R.H. sheath support plate $62.32
Location: 8 Prev | Next Part: 61496000 *Qty: 1 L.H. sheath support plate $57.25
Location: 9 Prev | Next Part: 61496100 *Qty: 1 Lock striker left $91.01
Location: 9 Prev | Next Part: 61541400 *Qty: 1 Lock striker right Superseded
Location: 10 Prev | Next Part: 61496200 *Qty: 1 L.H. striker rod LHD $13.59
Location: 10 Prev | Next Part: 61532900 *Qty: 1 R.H. striker rod RHD $10.55
Location: 11 Prev | Next Part: 61496300 *Qty: 1 Right sound insulation Call
Location: 12 Prev | Next Part: 61496500 *Qty: 1 Left sound insulation Superseded
Location: 13 Prev | Next Part: 61548700 *Qty: 1 Central sound insulation Superseded
Location: 14 Prev | Next Part: 61496600 *Qty: 1 Complete hinge $2,291.40
Location: 15 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 17 Prev | Next Part: 14084411 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12647001 *Qty: 4 Washer Superseded
Location: 19 Prev | Next Part: 61496700 *Qty: 2 Support Superseded
Location: 20 Prev | Next Part: 12601371 *Qty: 8 Spring washer Superseded
Location: 21 Prev | Next Part: 61647200 *Qty: 1 Lamp $76.02
Location: 22 Prev | Next Part: 11087976 *Qty: 4 Circlip Superseded
Location: 23 Prev | Next Part: 61496900 *Qty: 2 Warning light control Superseded
Location: 24 Prev | Next Part: 61497000 *Qty: 1 Bonnet gasket Call
Location: 25 Prev | Next Part: 61497100 *Qty: 1 Right lock cable $44.90
Location: 26 Prev | Next Part: 61497200 *Qty: 1 Emergency cable $13.25
Location: 27 Prev | Next Part: 61548800 *Qty: 1 Sound insulation, central lower $168.76
Location: 28 Prev | Next Part: 61563400 *Qty: 4 Central angular $26.48
Location: 29 Prev | Next Part: 61563500 *Qty: 1 Angular, RH upper $34.29
Location: 29 Prev | Next Part: 61563600 *Qty: 1 Angular, LH upper $34.29
Location: 30 Prev | Next Part: 61563200 *Qty: 1 RH angular $82.04
Location: 30 Prev | Next Part: 61563300 *Qty: 1 LH angular $82.04

* Quantity shown indicates the number of pieces used in the diagram.
