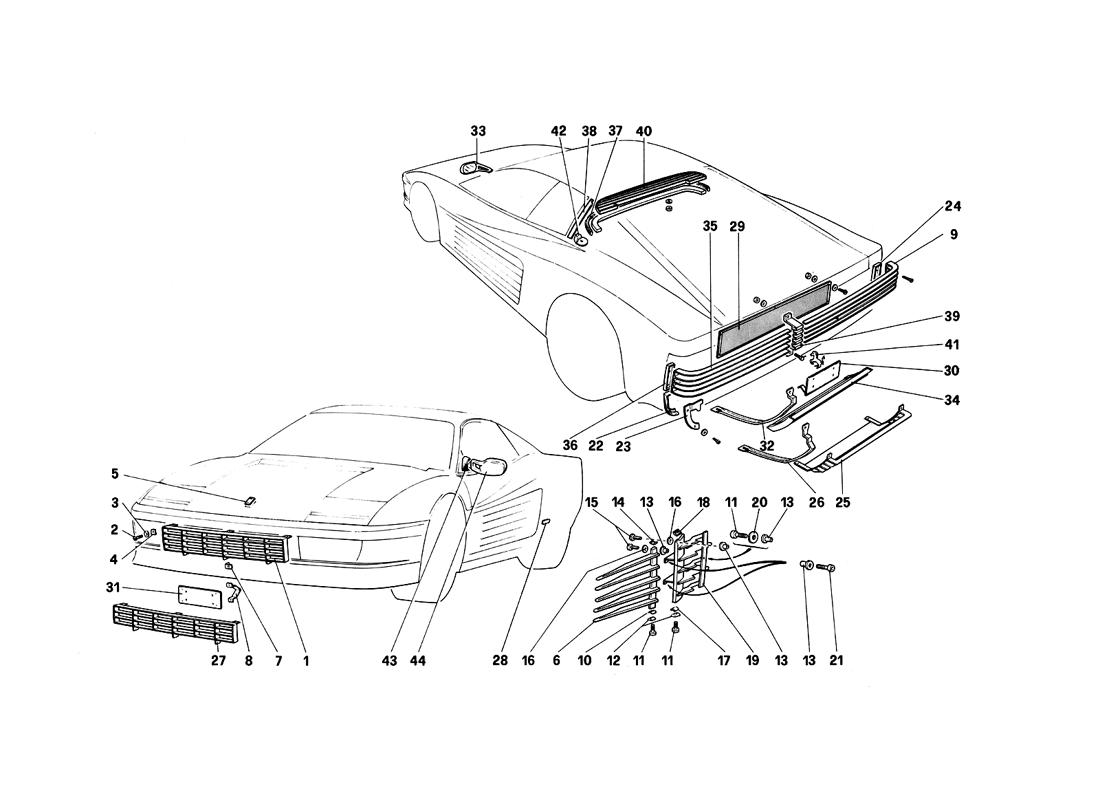

EXTERNAL FINISHING

Go to Split View

EXTERNAL FINISHING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61488200 *Qty: 1 Front grill
Not for CDN
$1,120.49
Location: 2 Prev | Next Part: 15644101 *Qty: 3 Screw $0.91
Location: 3 Prev | Next Part: 10519301 *Qty: 3 Washer $0.90
Location: 4 Prev | Next Part: 14189476 *Qty: 3 Fixing spring Call
Location: 5 Prev | Next Part: 60795400 *Qty: 1 Front ornament $233.13
Location: 6 Prev | Next Part: 61488300 *Qty: 1 Right door grill $2,508.76
Location: 6 Prev | Next Part: 61488400 *Qty: 1 Left door grill $2,508.76
Location: 7 Prev | Next Part: 61488500 *Qty: 2 Licence plate support bracket $31.63
Location: 8 Prev | Next Part: 61488600 *Qty: 2 Licence plate support bracket
For F-l
$41.76
Location: 9 Prev | Next Part: 61490600 *Qty: 1 Rear R.H. grill Call
Location: 10 Prev | Next Part: 61488700 *Qty: 1 Lower pad fixing right door grill $1.18
Location: 10 Prev | Next Part: 61488800 *Qty: 1 Lower pad fixing left door grill $1.18
Location: 11 Prev | Next Part: 13310811 *Qty: 6 Screw Call
Location: 12 Prev | Next Part: 61488900 *Qty: 4 Special washer $0.90
Location: 13 Prev | Next Part: 15627611 *Qty: 10 Rivet $0.90
Location: 14 Prev | Next Part: 61489000 *Qty: 1 Upper pad fixing left door grill $1.18
Location: 14 Prev | Next Part: 61489100 *Qty: 1 Upper pad fixing right door grill $1.18
Location: 15 Prev | Next Part: 13274411 *Qty: 4 Screw $0.90
Location: 16 Prev | Next Part: 12624101 *Qty: 4 Washer $0.90
Location: 17 Prev | Next Part: 61489300 *Qty: 1 Lower pad fixing left side grill Call
Location: 17 Prev | Next Part: 61489200 *Qty: 1 Lower pad fixing right side grill Call
Location: 18 Prev | Next Part: 61489500 *Qty: 1 Upper pad fixing left side grill Call
Location: 18 Prev | Next Part: 61489400 *Qty: 1 Upper pad fixing right side grill Call
Location: 19 Prev | Next Part: 61489700 *Qty: 1 Left side grill $1,693.71
Location: 19 Prev | Next Part: 61489600 *Qty: 1 Right side grill $1,981.66
Location: 20 Prev | Next Part: 12646801 *Qty: 2 Washer $1.65
Location: 21 Prev | Next Part: 13311011 *Qty: 4 Screw Call
Location: 22 Prev | Next Part: 61547900 *Qty: 1 Right pad
For CDN
$19.54
Location: 22 Prev | Next Part: 61548000 *Qty: 1 Left pad
For CDN
$19.54
Location: 22 Prev | Next Part: 61489800 *Qty: 1 Right pad
Not for CDN
$43.64
Location: 22 Prev | Next Part: 61489900 *Qty: 1 Left pad
Not for CDN
$44.15
Location: 23 Prev | Next Part: 61490000 *Qty: 1 Right plate for pad $143.50
Location: 23 Prev | Next Part: 61490100 *Qty: 1 Left plate for pad $143.50
Location: 24 Prev | Next Part: 61490800 *Qty: 1 Right gasket Call
Location: 25 Prev | Next Part: 61531800 *Qty: 1 Rear underbody grill
For US - SA - C7
Call
Location: 26 Prev | Next Part: 61531900 *Qty: 1 L.H. grill bracket
For US - SA - C7
$86.10
Location: 26 Prev | Next Part: 61532000 *Qty: 1 R.H. grill bracket
For US - SA - C7
Call
Location: 27 Prev | Next Part: 61547800 *Qty: 1 Front grill
For CDN
$2,340.67
Location: 28 Prev | Next Part: 61490200 *Qty: 2 Pininfarina ornament Call
Location: 29 Prev | Next Part: 61490300 *Qty: 1 Net for engine air exhaust Call
Location: 30 Prev | Next Part: 61537200 *Qty: 1 Rear plate holder
For US - SA
$87.12
Location: 30 Prev | Next Part: 61537100 *Qty: 1 Rear plate holder
Not for US - SA
$232.62
Location: 31 Prev | Next Part: 61537000 *Qty: 1 Front plate holder
CEE
$77.95
Location: 31 Prev | Next Part: 61555900 *Qty: 1 Front plate holder
CDN
$51.80
Location: 31 Prev | Next Part: 61536900 *Qty: 1 Front plate holder
Italia - F - US
Call
Location: 32 Prev | Next Part: 61529600 *Qty: 1 RH grill bracket
Not for US - SA - C7
$86.10
Location: 32 Prev | Next Part: 61529700 *Qty: 1 LH grill bracket
Not for US - SA - C7
$86.10
Location: 33 Prev | Next Part: 61543100 *Qty: 1 Outside mirror R.H.
Until car no. 6707, for S6
$798.05
Location: 33 Prev | Next Part: 61543200 *Qty: 1 Outside mirror L.H.
Until car no. 6707, for S6
$798.05
Location: 33 Prev | Next Part: 61530900 *Qty: 1 Outside mirror for (RHD)
Until car no. 6707, for GB - ZA
$1,375.35
Location: 33 Prev | Next Part: 61531600 *Qty: 1 Outside mirror
Until car no. 6707, for AUS
Call
Location: 33 Prev | Next Part: 61531700 *Qty: 1 Outside mirror
Until car no. 6707, for US
Superseded
Location: 33 Prev | Next Part: 61490400 *Qty: 1 Outside mirror (LHD)
Until car no. 67077, not for US -SA
Call
Location: 34 Prev | Next Part: 61529500 *Qty: 1 Rear underbody grill
Not for US
Superseded
Location: 35 Prev | Next Part: 61490500 *Qty: 1 Rear L.H. grill Call
Location: 36 Prev | Next Part: 61490700 *Qty: 1 Pad for rear left grill Call
Location: 37 Prev | Next Part: 61499900 *Qty: 1 Undergrill gasket Call
Location: 38 Prev | Next Part: 61491100 *Qty: 2 Gasket $17.31
Location: 39 Prev | Next Part: 61490900 *Qty: 1 Grill union Call
Location: 40 Prev | Next Part: 61491000 *Qty: 1 Under rear window grill $600.24
Location: 41 Prev | Next Part: 61766400 *Qty: 1 Horse $280.42
Location: 42 Prev | Next Part: 61565400 *Qty: 1 R.H. bracket Superseded
Location: 42 Prev | Next Part: 61565500 *Qty: 1 L.H. bracket Superseded
Location: 43 Prev | Next Part: 61550000 *Qty: 1 L.H. cover
From car 67079
$209.86
Location: 43 Prev | Next Part: 61549900 *Qty: 1 R.H. cover
Front car 67079
$181.17
Location: 43 Prev | Next Part: 61545100 *Qty: 1 L.H. cover for S6 $52.30
Location: 43 Prev | Next Part: 61545000 *Qty: 1 R.H. cover for S6 Call
Location: 44 Prev | Next Part: 61550200 *Qty: 1 Outside mirror L.H. - LHD
From car no. 67079, not for US
$765.79
Location: 44 Prev | Next Part: 61556500 *Qty: 1 Outside mirror R.H.
From car no. 67079, for GB - ZA
$157.07
Location: 44 Prev | Next Part: 61549700 *Qty: 1 Outside mirror R.H.
From car no. 67079, for US
$968.51
Location: 44 Prev | Next Part: 61567600 *Qty: 1 LH curved glass assy.
Not for US
$305.64
Location: 44 Prev | Next Part: 61550100 *Qty: 1 Outside mirror R.H. - LHD
From car no. 67079, not for US
$1,003.14
Location: 44 Prev | Next Part: 61549800 *Qty: 1 Outside mirror L.H.
From car no. 67079, for US
Call
Location: 44 Prev | Next Part: 61567500 *Qty: 1 RH curved glass assy.
Not for US
$157.58
Location: 44 Prev | Next Part: 61567700 *Qty: 1 RH flat glass assy.
For US
$107.16
Location: 44 Prev | Next Part: 61555400 *Qty: 1 Outside mirror L.H.
From car no. 67079, for AUS
Call
Location: 44 Prev | Next Part: 61555300 *Qty: 1 Outside mirror R.H.
From car no. 67079, for AUS
Call
Location: 44 Prev | Next Part: 61567800 *Qty: 1 LH flat glass assy.
For US
$95.60
Location: 44 Prev | Next Part: 61567900 *Qty: 2 Motor assy, for ext. mirror $149.08
Location: 44 Prev | Next Part: 61555600 *Qty: 1 Outside mirror L.H.
From car no. 67079, for GB - ZA
$726.03

* Quantity shown indicates the number of pieces used in the diagram.
