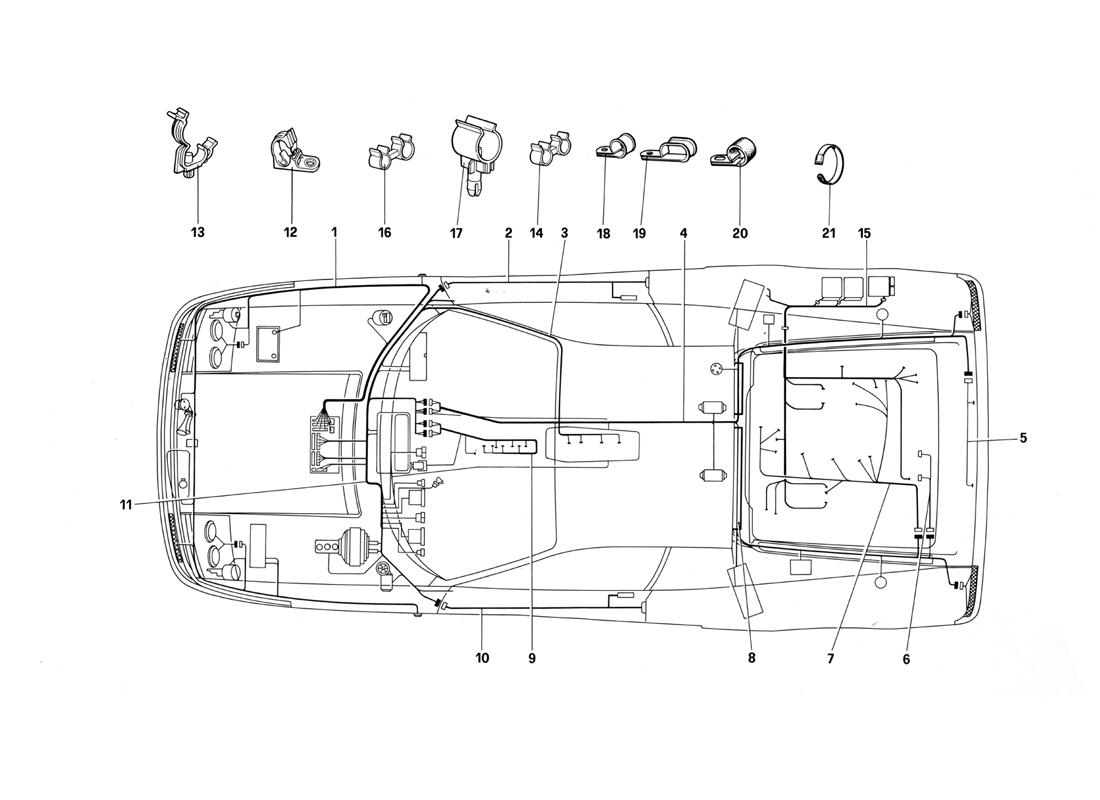

ELECTRIC SYSTEM

ELECTRIC SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 123656 1 Front cables LHD
Until car no. 65907 - Not for US
$792.41
1 124151 1 Front cables RHD
Until car no. 65907
$513.53
1 131527 1 Front cables
For U7
$1,947.36
1 131526 1 Front cables LHD
Starting from car no. 65909 - Not for US
$698.04
1 131525 1 Front cables RHD
Starting from car no. 65909
$99.67
1 123668 1 Front cables
For U6
$515.64
2 131912 1 Cables for door passenger - RHD
Starting from car no. 67079
$144.68
2 123665 1 Cables for door passenger side
Until car no. 67077 - Not for S6
$242.50
2 131481 1 Cables for door passenger side
Starting from car 67079
$406.97
2 129679 1 Cables for doc. passenger side
For S6
$248.61
3 123660 1 Roof cables
Not for US
$69.06
3 123672 1 Roof cables
For US
$68.03
4 123657 1 Cables for rear side and engine
Until car no. 65909 Not for US - CH - SA- J
$1,314.89
4 127006 1 Cables for rear side and engine
For S6 - C6
$1,495.68
4 129908 1 Cables for rear side and engine
For J - 86
$1,030.81
4 132532 1 Cables for rear side and engine
For S7
$1,177.20
4 131164 1 Cables for rear side and engine
For B1 - Until car no. 67545
$292.16
4 132509 1 Cables for rear side and engine
For CDN and J from car no. 67079
$1,212.97
4 132320 1 Cables for rear side and engine
For B1 - Starting from car no. 67547
$1,466.72
4 132391 1 Cables for rear side and engine
For C7
$1,212.97
4 131478 1 Cables for rear side and engine
For U7
$1,082.36
4 123669 1 Cables for rear side and engine
For U6
$1,393.41
5 123663 1 Number plate lights cables $146.20
6 123662 1 Cables for sensor
Until car 65907
$124.50
6 131168 1 Cables for sensor
Starting from car no. 65909
Unavailable
7 123670 1 Engine cables
For U6
$827.53
7 123658 1 Engine cables
For A1
$396.34
7 131165 1 Engine cables
For B1 - U7 - C7 - S7
$236.70
7 127007 1 Engine cables
For C6 and S6
$1,004.61
8 61527700 1 LH electrical system retaining screen $21.92
8 61527600 1 RH electrical system retaining screen $21.92
9 123666 1 Console cables
For A1 - US - C6 - B1
$678.77
9 129677 1 Console cables
For S6
$653.42
9 131479 1 Console cables
For B2- U7-C7-S7- B3
$452.51
10 131480 1 Cables for door driver side (LHD)
Starting from car 67079
$445.32
10 123664 1 Cables for door driver side
Until car 67077 - Not for S6
$254.62
10 131913 1 Cables for door drive side (RHD)
Starting from car 67079
$151.93
10 129678 1 Cables for door driver side
For S6
$248.61
11 123655 1 Dashboard cables
Until car n. 67077 - Not for RHD - US - SA
$544.85
11 124152 1 Dashboard cables RHD
Until car 67077
$886.74
11 129676 1 Dashboard cables
For S6
$709.20
11 131477 1 Dashboard cables
For U7
$701.00
11 131909 1 Dashboard cables
For B2
$741.68
11 131914 1 Dashboard cables
For B3
$741.68
11 132508 1 Dashboard cables
For S7 - CDN 87 - J 87
$725.44
11 132390 1 Dashboard cables
For C7
$888.04
11 123667 1 Dashboard cables
For U6
$1,519.13
12 129544 1 Clip $2.23
13 61681600 11 Retainer spring Unavailable
13 61527800 1 Retainer spring Superseded
14 131180 1 Retainer spring $2.03
15 132393 1 KE injection cables
For C7
$3,596.31
15 131170 1 KE injection cables
For B1 and S7
$1,006.74
15 127008 1 KE injection cables
For C6 and S6
$1,118.57
15 131482 1 KE injection cables
For U7
$1,165.57
15 123673 1 KE injection cables
For U6
$513.53
16 131179 2 Retainer spring $2.03
17 131181 3 Retainer spring $4.53
18 10418301 3 Clamp (0 8 mm.) Unavailable
18 10418601 1 Clamp (0 14 mm.) $1.18
18 10418401 2 Clamp (0 12mm.) $5.38
18 10420301 1 Clamp (04mm.) Unavailable
19 10416401 1 Clamp (0 14 mm.) Unavailable
20 10450790 1 Clamp (022 mm.) Unavailable
20 10450190 4 Clamp (0 1 0 mm.) $0.90
20 10450490 1 Ctamp (0 16 mm.) Unavailable
21 110381 1 Strip Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
