DOOR

Go to Split View

DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61501600 *Qty: 1 Right door
Not for US
$7,917.60
Location: 1 Prev | Next Part: 61501700 *Qty: 1 Left door
Not for US
$7,917.60
Location: 1 Prev | Next Part: 61540500 *Qty: 1 Left door
For US - Not for J
$8,699.52
Location: 1 Prev | Next Part: 61540600 *Qty: 1 Right door
For US- Not for J
$9,694.85
Location: 2 Prev | Next Part: 61502000 *Qty: 1 Right panel $493.28
Location: 2 Prev | Next Part: 61502100 *Qty: 1 Left panel $493.28
Location: 3 Prev | Next Part: 61502200 *Qty: 1 Right air tube $4.59
Location: 3 Prev | Next Part: 61502300 *Qty: 1 Left air tube $4.59
Location: 4 Prev | Next Part: 61543800 *Qty: 1 Left gasket $45.49
Location: 4 Prev | Next Part: 61543700 *Qty: 1 Right gasket $42.63
Location: 5 Prev | Next Part: 61539200 *Qty: 1 Left outer moulding $633.01
Location: 5 Prev | Next Part: 61539300 *Qty: 1 Right outer moulding $423.72
Location: 6 Prev | Next Part: 61543500 *Qty: 1 RH run channel $140.78
Location: 6 Prev | Next Part: 61543600 *Qty: 1 LH run channel $140.78
Location: 7 Prev | Next Part: 61503000 *Qty: 2 Underdoor gasket
Until car no.
$70.30
Location: 7 Prev | Next Part: 61539600 *Qty: 2 Underdoor gasket
Until car no.
$24.99
Location: 8 Prev | Next Part: 61559900 *Qty: 1 Right inner moulding
Starting car No 67079
$347.25
Location: 8 Prev | Next Part: 61503100 *Qty: 1 Right inner moulding
Until car No 67077
$440.64
Location: 8 Prev | Next Part: 61560000 *Qty: 1 Left inner moulding
Starting car No 67079
$551.00
Location: 8 Prev | Next Part: 61503200 *Qty: 1 Left inner moulding
Until car No 67077
$597.69
Location: 9 Prev | Next Part: 61503300 *Qty: 1 Switch Superseded
Location: 10 Prev | Next Part: 61503500 *Qty: 1 Upper covering for left panel $726.72
Location: 10 Prev | Next Part: 61503400 *Qty: 1 Upper covering for right panel $1,211.52
Location: 11 Prev | Next Part: 61503600 *Qty: 2 Air tube ring $0.90
Location: 12 Prev | Next Part: 61503700 *Qty: 1 R.H. air tube $12.58
Location: 12 Prev | Next Part: 61503800 *Qty: 1 L.H. air tube $12.58
Location: 13 Prev | Next Part: 61505700 *Qty: 1 Right gasket for door front side $71.15
Location: 13 Prev | Next Part: 61505800 *Qty: 1 Left gasket for door front side $71.15
Location: 14 Prev | Next Part: 61504300 *Qty: 1 Right spring $3.06
Location: 14 Prev | Next Part: 61504400 *Qty: 1 Left spring $3.06
Location: 15 Prev | Next Part: 61504500 *Qty: 2 Pin $0.90
Location: 16 Prev | Next Part: 61504600 *Qty: 1 Right handle $9.17
Location: 16 Prev | Next Part: 61504700 *Qty: 1 Left handle $10.71
Location: 17 Prev | Next Part: 61504800 *Qty: 2 As tray box $43.42
Location: 18 Prev | Next Part: 61505000 *Qty: 1 Left ash tray Call
Location: 18 Prev | Next Part: 61504900 *Qty: 1 Right ash tray Call
Location: 19 Prev | Next Part: 15672801 *Qty: 2 Screw Call
Location: 20 Prev | Next Part: 61505200 *Qty: 1 Left inner handle $258.96
Location: 20 Prev | Next Part: 61505100 *Qty: 1 Right inner handle $258.96
Location: 21 Prev | Next Part: 61505400 *Qty: 1 Left armrest $1,171.55
Location: 21 Prev | Next Part: 61505300 *Qty: 1 Right armrest $708.05
Location: 22 Prev | Next Part: 61505900 *Qty: 1 Right gasket for door rear side Superseded
Location: 22 Prev | Next Part: 61506000 *Qty: 1 Left gasket for door rear side Superseded
Location: 23 Prev | Next Part: 61505600 *Qty: 2 Door glove box Call
Location: 24 Prev | Next Part: 60842100 *Qty: 2 Courtesy lamp Call
Location: 25 Prev | Next Part: 17668201 *Qty: 4 Screw Call
Location: 26 Prev | Next Part: 60842000 *Qty: 2 Frame $5.30
Location: 27 Prev | Next Part: 61647000 *Qty: 2 Gasket Superseded
Location: 28 Prev | Next Part: 102248 *Qty: 2 Open door light Superseded
Location: 29 Prev | Next Part: 102249 *Qty: 2 Frame $1.28
Location: 30 Prev | Next Part: 61533100 *Qty: 6 Frame for air outlet $28.87
Location: 31 Prev | Next Part: 61535800 *Qty: 2 Open door marker $81.84
Location: 32 Prev | Next Part: 61557800 *Qty: 2 Inner gasket Superseded
Location: 33 Prev | Next Part: 61560100 *Qty: 1 Right panel complete
Starting car No 67079
$3,229.52
Location: 33 Prev | Next Part: 61501800 *Qty: 1 Right panel complete
Until car No 67077
$3,445.72
Location: 33 Prev | Next Part: 61560200 *Qty: 1 Left panel complete
Starting car No 67079
$3,028.32
Location: 33 Prev | Next Part: 61501900 *Qty: 1 Left panel complete
Until car No 67077
$3,445.72

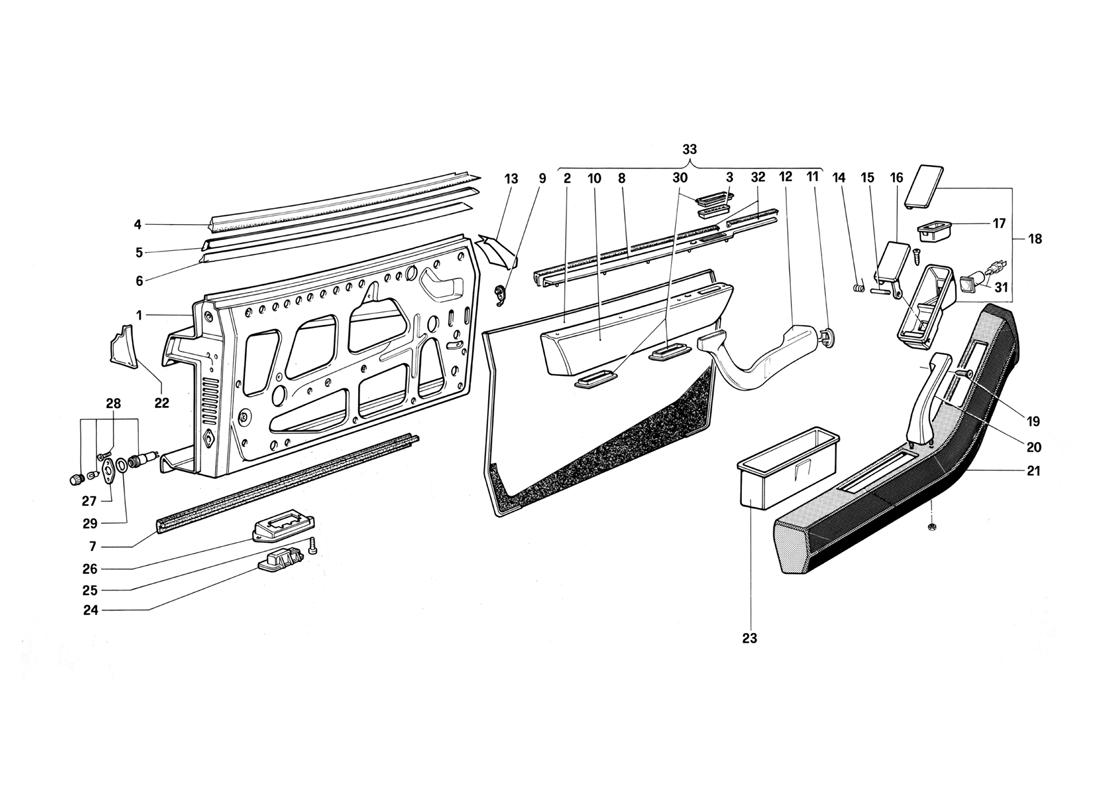

* Quantity shown indicates the number of pieces used in the diagram.
