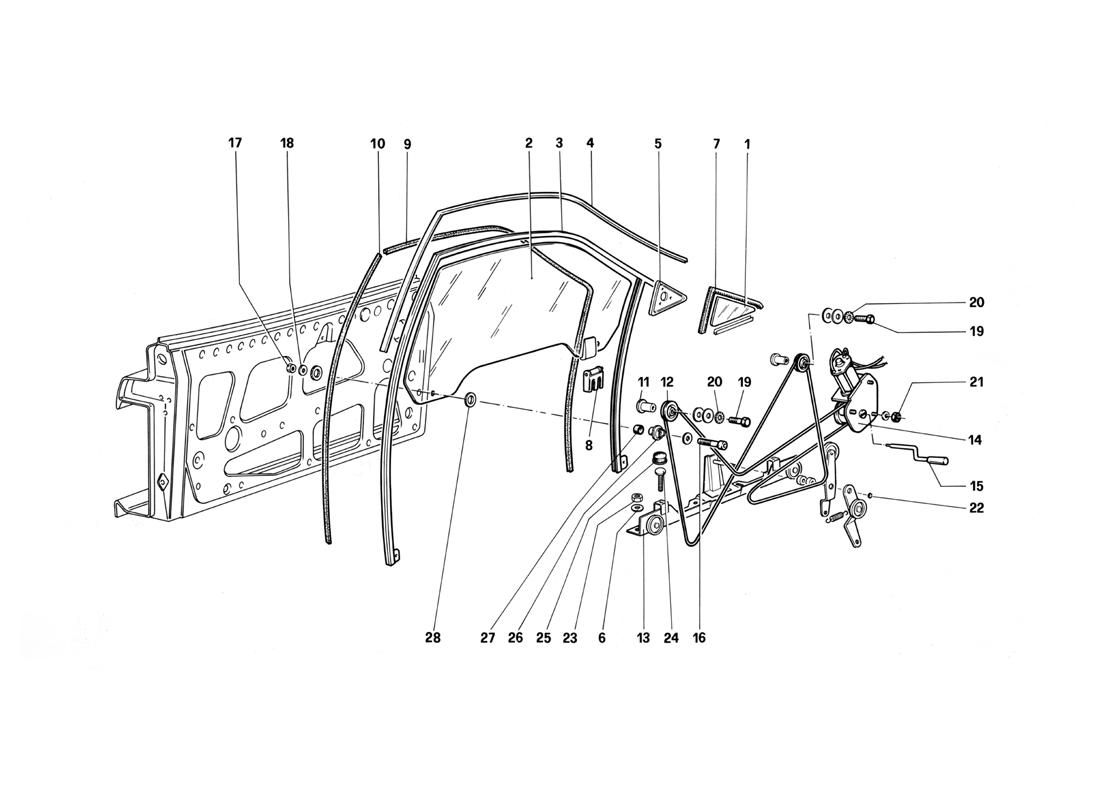

DOOR - POWER WINDOW

Go to Split View

DOOR - POWER WINDOW

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61533500 *Qty: 1 Fixed R.H. glass
Until car No. 67077, not for S6
Call
Location: 1 Prev | Next Part: 61533400 *Qty: 1 Fixed L.H. glass
Until car No. 67077, not for S6
$70.02
Location: 2 Prev | Next Part: 61533700 *Qty: 1 R.H. glass Call
Location: 2 Prev | Next Part: 61533600 *Qty: 1 L.H. glass $728.60
Location: 3 Prev | Next Part: 61533800 *Qty: 1 L.H. frame work
Until car No 67077, not for S6
Call
Location: 3 Prev | Next Part: 61544200 *Qty: 1 L.H. frame work
For S6
$2,215.94
Location: 3 Prev | Next Part: 61549000 *Qty: 1 L.H. frame work
From car 67079
$2,014.56
Location: 3 Prev | Next Part: 61548900 *Qty: 1 R.H. frame work
From car 67079
$2,014.56
Location: 3 Prev | Next Part: 61544100 *Qty: 1 R.H. frame work
For S6
$1,948.89
Location: 3 Prev | Next Part: 61533900 *Qty: 1 R.H. frame work
Until car No 67077, Not for S6
Call
Location: 4 Prev | Next Part: 61548500 *Qty: 1 Gasket for RH door $230.98
Location: 4 Prev | Next Part: 61548600 *Qty: 1 Gasket for LH door $230.98
Location: 5 Prev | Next Part: 61566700 *Qty: 1 Support for LH external rear view mirror
Starting from car 67079, not for S6
$414.13
Location: 5 Prev | Next Part: 61566500 *Qty: 1 Support for LH external rear view mirror
For S6
$590.97
Location: 5 Prev | Next Part: 61566600 *Qty: 1 Support for RH external rear view mirror
Starting from car 67079, Not for S6
$177.73
Location: 5 Prev | Next Part: 61566400 *Qty: 1 Support for RH external rear view mirror
For S6
$590.97
Location: 6 Prev | Next Part: 12640601 *Qty: 6 Washer Superseded
Location: 7 Prev | Next Part: 61539100 *Qty: 2 Gasket for fixed glass
Not for SA
Call
Location: 8 Prev | Next Part: 61112100 *Qty: 2 Window guide roller $39.91
Location: 9 Prev | Next Part: 61509800 *Qty: 2 Run channel $113.81
Location: 10 Prev | Next Part: 61509900 *Qty: 2 Rear run channel $103.84
Location: 11 Prev | Next Part: 61510000 *Qty: 6 Sheave pin $1.60
Location: 12 Prev | Next Part: 61510100 *Qty: 6 Sheave $91.93
Location: 13 Prev | Next Part: 61610200 *Qty: 1 Right lower crosspiece Call
Location: 13 Prev | Next Part: 61510300 *Qty: 1 Left lower crosspiece $197.17
Location: 14 Prev | Next Part: 61510500 *Qty: 1 Left window regulator Call
Location: 14 Prev | Next Part: 61510400 *Qty: 1 Right window regulator Call
Location: 15 Prev | Next Part: 61510600 *Qty: 1 Emergency handle Call
Location: 16 Prev | Next Part: 14307920 *Qty: 4 Screw Call
Location: 17 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 19 Prev | Next Part: 10902221 *Qty: 4 Screw $1.31
Location: 20 Prev | Next Part: 10615471 *Qty: 4 Washer $0.90
Location: 21 Prev | Next Part: 14084111 *Qty: 6 Nut $0.90
Location: 22 Prev | Next Part: 16160976 *Qty: 2 Spring ring $0.90
Location: 23 Prev | Next Part: 14084211 *Qty: 6 Nut $0.90
Location: 24 Prev | Next Part: 61464600 *Qty: 4 Bolt Superseded
Location: 25 Prev | Next Part: 61464700 *Qty: 4 Pad Superseded
Location: 26 Prev | Next Part: 61564400 *Qty: 4 Bush $0.97
Location: 27 Prev | Next Part: 61564800 *Qty: 4 Rubber bush $0.90
Location: 28 Prev | Next Part: 61564500 *Qty: 8 Rubber washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
