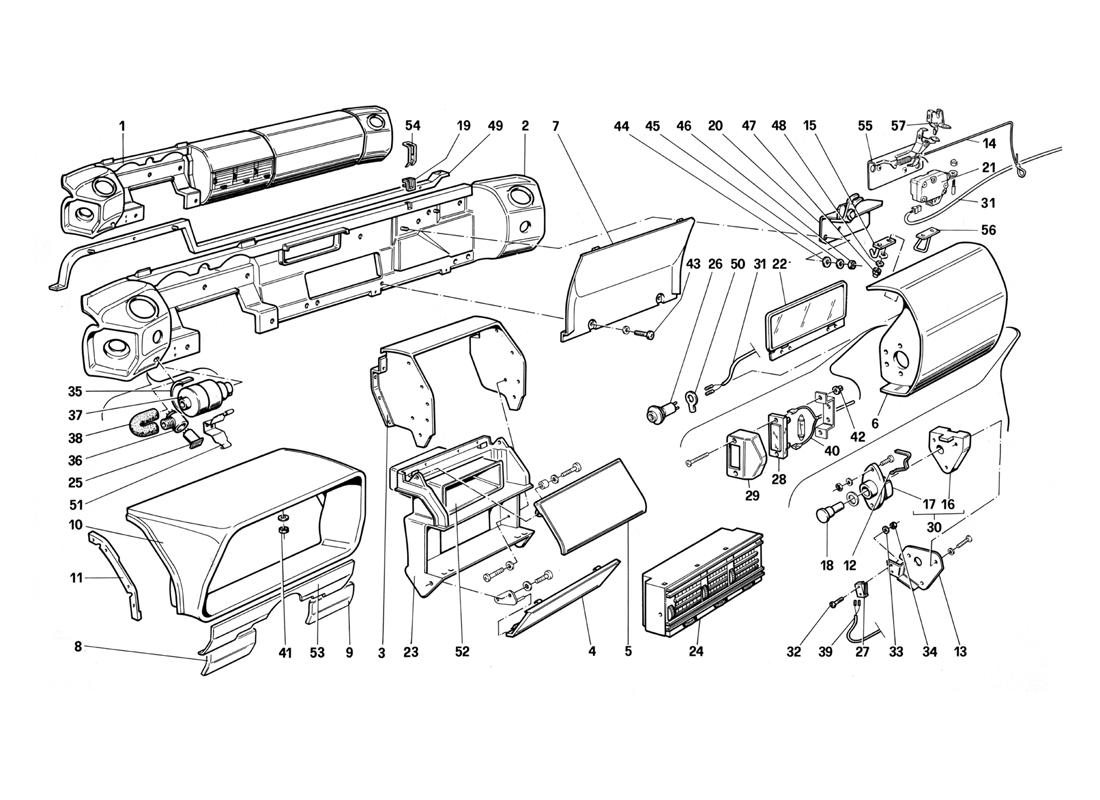

DASHBOARD (FOR U.S. VERSION MY 1987)

Go to Split View

 DASHBOARD (FOR U.S. VERSION MY 1987)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61520500 *Qty: 1 RHD dash board assembly
For AUS, without instruments seat, until car no. 67077
Call
Location: 1 Prev | Next Part: 61530100 *Qty: 1 RHD dash board assembly
For RHD, with instruments seat, until car no. 67077
Call
Location: 1 Prev | Next Part: 61530200 *Qty: 1 RHD dash board assembly
For AUS, with instruments seat, until car no. 67077
Call
Location: 1 Prev | Next Part: 61562200 *Qty: 1 RHD dash board assembly
For RHD, with instruments seat, starting from car 67079
Call
Location: 1 Prev | Next Part: 61562300 *Qty: 1 RHD dash board assembly
For AUS, with instruments seat, starting from car 67079
Call
Location: 1 Prev | Next Part: 61562500 *Qty: 1 RHD dash board assembly
Without instruments seat, starting from car no. 67080
Call
Location: 1 Prev | Next Part: 61553700 *Qty: 1 Dash board assembly
Without instruments seat
$8,215.10
Location: 1 Prev | Next Part: 61562600 *Qty: 1 RHD dash board assembly
For AUS, without instruments seat, starting from car no. 67079
Call
Location: 1 Prev | Next Part: 61553600 *Qty: 1 Dash board assembly
With instruments seat
$11,099.72
Location: 1 Prev | Next Part: 61520400 *Qty: 1 RftD dash board assembly
Without instruments seat, until car no. 67077
Call
Location: 1 Prev | Next Part: 61562100 *Qty: 1 LHD dash board assembly
For LHD, with instruments seat, starting from car 67079
$9,934.26
Location: 1 Prev | Next Part: 61562400 *Qty: 1 LHD dash board assembly
Without instruments seat, starting from car no. 67079
$8,375.48
Location: 1 Prev | Next Part: 61530000 *Qty: 1 LHD dash board assembly
For LHD, with instruments seat, until car no. 67077
Call
Location: 1 Prev | Next Part: 61520300 *Qty: 1 LHD dash board assembly
Without instruments seat, until car no. 67077
$7,469.86
Location: 2 Prev | Next Part: 61520700 *Qty: 1 Dash board
For RHD - Until car No 67077
$2,068.84
Location: 2 Prev | Next Part: 61520600 *Qty: 1 Dash board
For LHD, until car No 67077
$3,108.96
Location: 2 Prev | Next Part: 61553800 *Qty: 1 Dash board frame $2,159.00
Location: 2 Prev | Next Part: 61562700 *Qty: 1 Dash board
For LHD - Starting from car No 67079
$2,103.86
Location: 2 Prev | Next Part: 61562800 *Qty: 1 Dash board
For RHD - Starting rom car No 67079
$2,117.88
Location: 3 Prev | Next Part: 61520800 *Qty: 1 Dash board central section
For LHD
$467.52
Location: 3 Prev | Next Part: 61520900 *Qty: 1 Dash board central section
For RHD
$467.52
Location: 4 Prev | Next Part: 61553900 *Qty: 1 Dash board central panel $863.25
Location: 4 Prev | Next Part: 61545200 *Qty: 1 Dash board central panel
Starting from car 67079
$825.62
Location: 4 Prev | Next Part: 61521000 *Qty: 1 Dash board central panel
Until car No 67077
$289.81
Location: 5 Prev | Next Part: 61521100 *Qty: 1 Dash board central cover $603.23
Location: 6 Prev | Next Part: 61554100 *Qty: 1 Dash board box $2,552.12
Location: 6 Prev | Next Part: 61521200 *Qty: 1 Dash board box for LHD $2,557.54
Location: 7 Prev | Next Part: 61521400 *Qty: 1 Dash board box panel $242.52
Location: 8 Prev | Next Part: 61554900 *Qty: 1 Steering column cover $154.43
Location: 8 Prev | Next Part: 61521500 *Qty: 1 Small right cover
Until car no. 67077
$251.28
Location: 9 Prev | Next Part: 61521600 *Qty: 1 Small left cover
Until car no. 67077
$411.49
Location: 10 Prev | Next Part: 61558900 *Qty: 1 Housing instruments Call
Location: 10 Prev | Next Part: 61521700 *Qty: 1 Housing instruments
Until car no. 67077
$1,421.84
Location: 10 Prev | Next Part: 61559000 *Qty: 1 Housing instruments
For RHD, starting from car 67079
$1,076.02
Location: 10 Prev | Next Part: 61558900 *Qty: 1 Housing instruments
For LHD, starting from car 67079
Call
Location: 11 Prev | Next Part: 61521900 *Qty: 1 Left angle piece $8.93
Location: 11 Prev | Next Part: 61521800 *Qty: 1 Right angle piece $8.93
Location: 12 Prev | Next Part: 61522000 *Qty: 2 Clip $1.66
Location: 13 Prev | Next Part: 61554500 *Qty: 1 Bracket $17.69
Location: 13 Prev | Next Part: 61534600 *Qty: 1 Bracket
RHD
$4.10
Location: 13 Prev | Next Part: 61522100 *Qty: 1 Bracket
LHD
$3.15
Location: 14 Prev | Next Part: 61522200 *Qty: 1 Safety cable $2.46
Location: 15 Prev | Next Part: 61554600 *Qty: 1 Lock striker $105.24
Location: 15 Prev | Next Part: 61522300 *Qty: 1 Lock striker
For bracket No 20
$119.27
Location: 16 Prev | Next Part: 61522500 *Qty: 1 Left fixed hinge Call
Location: 16 Prev | Next Part: 61522400 *Qty: 1 Right fixed hinge $10.51
Location: 17 Prev | Next Part: 61522600 *Qty: 1 Right mobile hinge Call
Location: 17 Prev | Next Part: 61522700 *Qty: 1 Left mobile hinge $2.98
Location: 18 Prev | Next Part: 61522800 *Qty: 2 Pin Call
Location: 19 Prev | Next Part: 61522900 *Qty: 1 Frame
For bracket No 20
$16.66
Location: 19 Prev | Next Part: 61554700 *Qty: 1 Frame $18.04
Location: 20 Prev | Next Part: 61523000 *Qty: 1 Lock bracket
Until car ..........
$46.23
Location: 21 Prev | Next Part: 61523100 *Qty: 1 Lock magnet Call
Location: 22 Prev | Next Part: 61523200 *Qty: 1 Courtesy mirror $29.43
Location: 23 Prev | Next Part: 61523300 *Qty: 1 Frame work $966.57
Location: 23 Prev | Next Part: 61523400 *Qty: 1 Frame work
For RHD
$966.57
Location: 23 Prev | Next Part: 61523300 *Qty: 1 Frame work
For LHD
$966.57
Location: 24 Prev | Next Part: 61523500 *Qty: 1 Central air outler $295.92
Location: 25 Prev | Next Part: 61079100 *Qty: 1 Sensor for internal temperature Call
Location: 26 Prev | Next Part: 61523600 *Qty: 1 Socket $25.57
Location: 27 Prev | Next Part: 61523700 *Qty: 1 Switch $190.94
Location: 28 Prev | Next Part: 61647200 *Qty: 2 Dash board box lamp $78.40
Location: 29 Prev | Next Part: 61523800 *Qty: 2 Dash board box lamp frame $47.12
Location: 30 Prev | Next Part: 61523900 *Qty: 1 Right dashboard box hinge $16.12
Location: 30 Prev | Next Part: 61524000 *Qty: 1 Left dashboard box hinge $16.29
Location: 31 Prev | Next Part: 124410 *Qty: 1 Socket cables $12.45
Location: 32 Prev | Next Part: 61524100 *Qty: 2 Screw $3.37
Location: 33 Prev | Next Part: 61524200 *Qty: 2 Washer $0.90
Location: 34 Prev | Next Part: 61524300 *Qty: 2 Nut $0.90
Location: 35 Prev | Next Part: 120065 *Qty: 1 Sensor ring $1.88
Location: 36 Prev | Next Part: 61079200 *Qty: 1 Box sensor $5.95
Location: 37 Prev | Next Part: 61079300 *Qty: 1 Suction fan for sensor Superseded
Location: 38 Prev | Next Part: 124039 *Qty: 1 Tube from suction fan to sensor $18.92
Location: 39 Prev | Next Part: 124409 *Qty: 1 Switch cables $26.80
Location: 40 Prev | Next Part: 124411 *Qty: 1 Lamp cables $12.60
Location: 41 Prev | Next Part: 14084111 *Qty: 4 Nut $0.90
Location: 42 Prev | Next Part: 12611342 *Qty: 4 Female screw $0.90
Location: 44 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 46 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 48 Prev | Next Part: 10519201 *Qty: 4 Washer Superseded
Location: 50 Prev | Next Part: 61524800 *Qty: 1 Negative terminal Superseded
Location: 52 Prev | Next Part: 61541600 *Qty: 1 Radio seat $19.81
Location: 54 Prev | Next Part: 61554000 *Qty: 1 Box cover $227.64
Location: 56 Prev | Next Part: 61545600 *Qty: 1 Glove box lock $79.99

* Quantity shown indicates the number of pieces used in the diagram.
