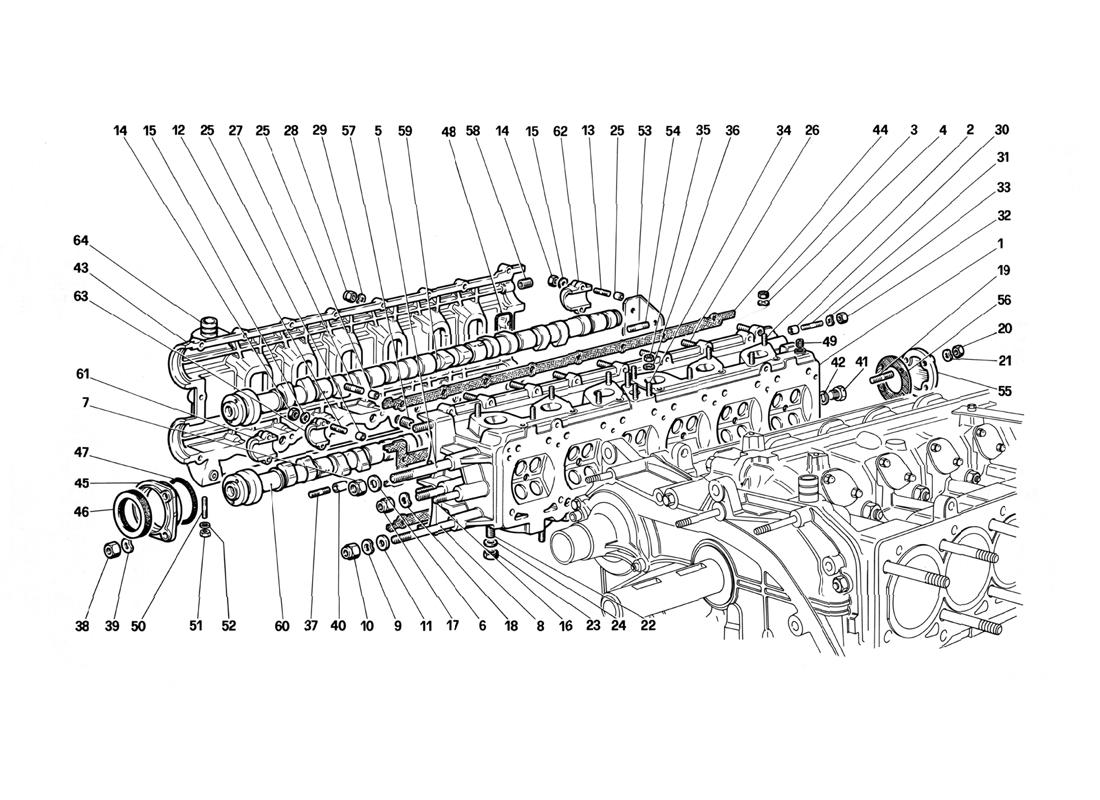

CYLINDER HEAD (RIGHT)

Go to Split View

CYLINDER HEAD (RIGHT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123054 *Qty: 1 Right cylinder head
With complete cylinder head
Call
Location: 2 Prev | Next Part: 12354521 *Qty: 10 Stud Superseded
Location: 3 Prev | Next Part: 16100811 *Qty: 10 Nut Superseded
Location: 4 Prev | Next Part: 11194071 *Qty: 10 Washer $0.90
Location: 5 Prev | Next Part: 13953121 *Qty: 1 Stud $3.06
Location: 6 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 7 Prev | Next Part: 12575611 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 13970421 *Qty: 1 Stud
For US - CH - SA
Superseded
Location: 8 Prev | Next Part: 13970321 *Qty: 1 Stud
For Al - B1
$3.76
Location: 9 Prev | Next Part: 12604471 *Qty: 1 Washer $0.90
Location: 10 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 11 Prev | Next Part: 112761 *Qty: 1 Spring washer Superseded
Location: 12 Prev | Next Part: 102735 *Qty: 24 Stud for inner caps $23.76
Location: 13 Prev | Next Part: 102754 *Qty: 4 Stud for outer caps $6.12
Location: 14 Prev | Next Part: 15896211 *Qty: 28 Nut Superseded
Location: 15 Prev | Next Part: 11197773 *Qty: 28 Washer Superseded
Location: 16 Prev | Next Part: 13543421 *Qty: 2 Stud
Belt stretcher
Superseded
Location: 17 Prev | Next Part: 101139 *Qty: 2 Nut $0.90
Location: 18 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 19 Prev | Next Part: 11500321 *Qty: 2 Stud
For A1
$0.90
Location: 19 Prev | Next Part: 13541021 *Qty: 2 Stud
For B1 - US - CH - SA
Superseded
Location: 20 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 21 Prev | Next Part: 12601271 *Qty: 3 Washer Superseded
Location: 22 Prev | Next Part: 13543521 *Qty: 12 Stud Superseded
Location: 23 Prev | Next Part: 105938 *Qty: 12 Nut
PN 124525 in alternative
Superseded
Location: 24 Prev | Next Part: 106852 *Qty: 12 Washer
For nut PN 105938
Superseded
Location: 25 Prev | Next Part: 102725 *Qty: 30 Dowel $0.90
Location: 25 Prev | Next Part: 123064 *Qty: 1 Right cylinder head, complete $10,633.10
Location: 26 Prev | Next Part: 13541321 *Qty: 16 Stud for covers Superseded
Location: 27 Prev | Next Part: 13541421 *Qty: 2 Stud on dowel Superseded
Location: 28 Prev | Next Part: 100044 *Qty: 18 Cap nut $0.90
Location: 29 Prev | Next Part: 12601271 *Qty: 18 Washer Superseded
Location: 30 Prev | Next Part: 102725 *Qty: 2 Dowel for distributor cap support $0.90
Location: 31 Prev | Next Part: 13541121 *Qty: 2 Stud Superseded
Location: 32 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 33 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 34 Prev | Next Part: 13541021 *Qty: 3 Stud Superseded
Location: 35 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 36 Prev | Next Part: 12601271 *Qty: 3 Washer Superseded
Location: 37 Prev | Next Part: 13541121 *Qty: 4 Stud Superseded
Location: 38 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 39 Prev | Next Part: 12601271 *Qty: 4 Washer Superseded
Location: 40 Prev | Next Part: 102725 *Qty: 4 Dowel $0.90
Location: 41 Prev | Next Part: 10300740 *Qty: 1 Water drain plug $16.10
Location: 42 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 43 Prev | Next Part: 121446 *Qty: 1 Right cyl. head cover
With cyl. head, until engine A1 (no. 391) and U6 (no.154)
Call
Location: 43 Prev | Next Part: 128795 *Qty: 1 Right cyl. head cover
With cyl. head, starting engine A1 no. 392 and U6 no. 155
Call
Location: 44 Prev | Next Part: 127227 *Qty: 1 Gasket
For cover PN. 128795
Superseded
Location: 44 Prev | Next Part: 121126 *Qty: 1 Gasket
For cover PN. 121446
Superseded
Location: 45 Prev | Next Part: 121116 *Qty: 2 Front cover $172.35
Location: 46 Prev | Next Part: 114639 *Qty: 2 Seal ring
PN. 128260 in alternative
$17.68
Location: 47 Prev | Next Part: 117036 *Qty: 2 Seal ring $6.43
Location: 48 Prev | Next Part: 127649 *Qty: 6 Seal ring
For cover PN. 128796
$6.52
Location: 49 Prev | Next Part: 14326150 *Qty: 3 Plug
8 x 1,25
$0.90
Location: 50 Prev | Next Part: 11500121 *Qty: 2 Stud Superseded
Location: 51 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 52 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 53 Prev | Next Part: 124594 *Qty: 1 Bracket $179.99
Location: 54 Prev | Next Part: 11500421 *Qty: 2 Stud Superseded
Location: 55 Prev | Next Part: 103796 *Qty: 1 Rear cover $405.77
Location: 56 Prev | Next Part: 104694 *Qty: 1 Gasket Superseded
Location: 57 Prev | Next Part: 10269750 *Qty: 3 Plug $2.02
Location: 58 Prev | Next Part: 13525470 *Qty: 1 Heli-coil $0.90
Location: 59 Prev | Next Part: 123413 *Qty: 1 Right intake camshaft, complete
For Al, starting from engine no. 258, B1-US-CH-SA
Call
Location: 59 Prev | Next Part: 123101 *Qty: 1 Right intake camshaft, complete
For A1, until engine no. 257
Superseded
Location: 60 Prev | Next Part: 123105 *Qty: 1 Right exhaust camshaft, complete $2,093.57
Location: 61 Prev | Next Part: 114499 *Qty: 2 Front cap
With complete cylinder head
Call
Location: 62 Prev | Next Part: 114497 *Qty: 2 Rear cap
With complete cylinder head
Call
Location: 63 Prev | Next Part: 117043 *Qty: 10 Intermediate cup
With complete cylinder head, after exhaustion use no. 126811
Call
Location: 64 Prev | Next Part: 102705 *Qty: 1 Union $32.94

* Quantity shown indicates the number of pieces used in the diagram.
