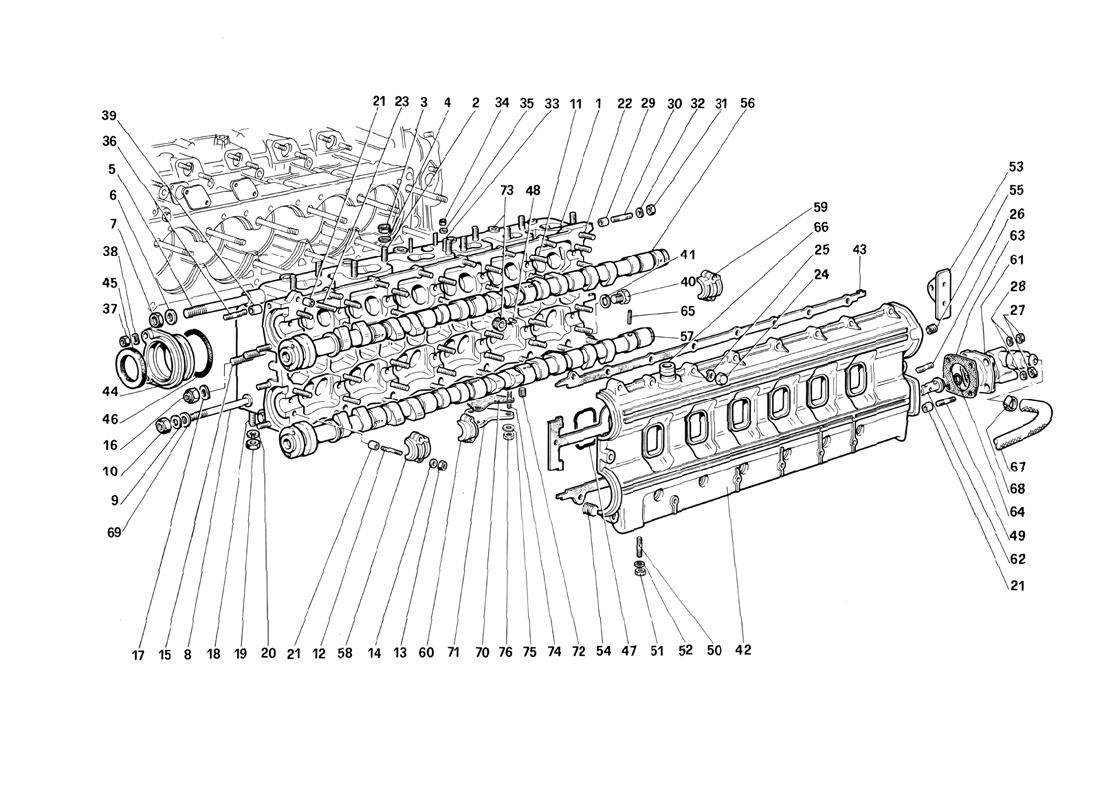

CYLINDER HEAD (LEFT)

Go to Split View

CYLINDER HEAD (LEFT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123055 *Qty: 1 Left cylinder head
With cyl. Head no. 123065
Call
Location: 2 Prev | Next Part: 12354521 *Qty: 10 Stud Superseded
Location: 3 Prev | Next Part: 16100811 *Qty: 10 Nut Superseded
Location: 4 Prev | Next Part: 11194071 *Qty: 10 Washer $0.90
Location: 5 Prev | Next Part: 13953121 *Qty: 1 Stud $3.15
Location: 6 Prev | Next Part: 12601471 *Qty: 1 Washer Superseded
Location: 7 Prev | Next Part: 12575611 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 13970321 *Qty: 1 Stud $3.86
Location: 9 Prev | Next Part: 12604471 *Qty: 1 Washer $0.90
Location: 10 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 11 Prev | Next Part: 102735 *Qty: 24 Stud
Inner caps
$24.51
Location: 12 Prev | Next Part: 102754 *Qty: 4 Stud
Outer caps
$6.30
Location: 13 Prev | Next Part: 15896211 *Qty: 28 Nut Superseded
Location: 14 Prev | Next Part: 11197773 *Qty: 28 Washer Superseded
Location: 15 Prev | Next Part: 13543421 *Qty: 2 Stud
Belt stretcher
Superseded
Location: 16 Prev | Next Part: 101139 *Qty: 2 Nut $0.90
Location: 17 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 18 Prev | Next Part: 13543521 *Qty: 12 Stud Superseded
Location: 19 Prev | Next Part: 105938 *Qty: 12 Nut
PN. 124525 in alternative
Superseded
Location: 20 Prev | Next Part: 106852 *Qty: 12 Washer
For nut PN. 105938
Superseded
Location: 21 Prev | Next Part: 102725 *Qty: 30 Dowel $1.14
Location: 22 Prev | Next Part: 13541321 *Qty: 16 Stud for covers Superseded
Location: 23 Prev | Next Part: 13541421 *Qty: 2 Stud on dowel Superseded
Location: 24 Prev | Next Part: 100044 *Qty: 18 Cap nut $0.90
Location: 25 Prev | Next Part: 12601271 *Qty: 18 Washer Superseded
Location: 26 Prev | Next Part: 11500521 *Qty: 2 Vacuum pump securing stud $2.63
Location: 27 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 28 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 29 Prev | Next Part: 102725 *Qty: 2 Dowel for distributor cap support $1.14
Location: 30 Prev | Next Part: 13541121 *Qty: 2 Stud Superseded
Location: 31 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 32 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 13541021 *Qty: 3 Stud Superseded
Location: 34 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 35 Prev | Next Part: 12601271 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 13541121 *Qty: 4 Stud Superseded
Location: 37 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 38 Prev | Next Part: 12601271 *Qty: 4 Washer Superseded
Location: 39 Prev | Next Part: 102725 *Qty: 4 Dowel $1.14
Location: 40 Prev | Next Part: 10300740 *Qty: 1 Water drain plug $16.59
Location: 41 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 42 Prev | Next Part: 128796 *Qty: 1 Left cyl.head cover
With cyl. head, starting engine A1 (no. 392) and U6 (no. 155)
Call
Location: 42 Prev | Next Part: 121447 *Qty: 1 Left cyl. head cover
With cyl. head until engine A1 (no. 391) and U6 (no.154)
Call
Location: 43 Prev | Next Part: 127228 *Qty: 1 Gasket
For cover PN. 128796
Superseded
Location: 43 Prev | Next Part: 121127 *Qty: 1 Gasket
For cover PN. 121447
Superseded
Location: 44 Prev | Next Part: 121116 *Qty: 2 Front cover $177.73
Location: 45 Prev | Next Part: 114639 *Qty: 2 Seal ring
PN. 128260 in alternative
$18.24
Location: 46 Prev | Next Part: 117036 *Qty: 2 Seal ring $6.63
Location: 47 Prev | Next Part: 127649 *Qty: 6 Seal ring
For cover PN. 128796
$6.70
Location: 48 Prev | Next Part: 10330210 *Qty: 2 Dowel
For cover PN. 121447
$0.90
Location: 49 Prev | Next Part: 11500421 *Qty: 2 Vacuum pump securing stud Superseded
Location: 50 Prev | Next Part: 11500121 *Qty: 2 Stud Superseded
Location: 51 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 52 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 53 Prev | Next Part: 124594 *Qty: 1 Bracket $185.61
Location: 54 Prev | Next Part: 10269750 *Qty: 3 Plug $2.07
Location: 55 Prev | Next Part: 13525470 *Qty: 1 Heli-coil $0.90
Location: 56 Prev | Next Part: 123103 *Qty: 1 Left intake camshaft, complete
For A1, until engine no. 257
Superseded
Location: 56 Prev | Next Part: 124033 *Qty: 1 Left intake camshaft, complete
For A1, starting from engine no. 258, B1 - US • CH - SA
Call
Location: 57 Prev | Next Part: 123107 *Qty: 1 Left exhaust camshaft, complete $2,159.00
Location: 58 Prev | Next Part: 114499 *Qty: 2 Front cap
With complete cylinder head
Call
Location: 59 Prev | Next Part: 114497 *Qty: 2 Rear cap
With complete cylinder head
Call
Location: 60 Prev | Next Part: 117043 *Qty: 10 Intermediate cap
With complete cylinder head, after exhaustion use no. 126811
Call
Location: 61 Prev | Next Part: 122737 *Qty: 1 Vacuum pump Superseded
Location: 62 Prev | Next Part: 121054 *Qty: 1 Coupling Call
Location: 63 Prev | Next Part: 122781 *Qty: 1 Gasket Superseded
Location: 64 Prev | Next Part: 105661 *Qty: 1 0-ring $1.73
Location: 64 Prev | Next Part: 123065 *Qty: 1 Left cylinder head, complete $3,850.51
Location: 65 Prev | Next Part: 13938070 *Qty: 1 Pin (? 4) $0.90
Location: 65 Prev | Next Part: 13940270 *Qty: 1 Pin (? 5) $0.90
Location: 65 Prev | Next Part: 13940270 *Qty: 1 Pin (? 5) $0.90
Location: 66 Prev | Next Part: 102705 *Qty: 1 Union $33.98
Location: 67 Prev | Next Part: 125031 *Qty: 1 3-way union $15.92
Location: 68 Prev | Next Part: 12179590 *Qty: 1 Clamp Superseded
Location: 69 Prev | Next Part: 112761 *Qty: 1 Washer Superseded
Location: 70 Prev | Next Part: 127143 *Qty: 12 Gasket
For A1 - B1
Superseded
Location: 71 Prev | Next Part: 127834 *Qty: 12 Cover
For A1 - B1
$31.71
Location: 72 Prev | Next Part: 14326150 *Qty: 3 Plug
8 x 1,25
$0.90
Location: 73 Prev | Next Part: 127635 *Qty: 2 Plug $1.90
Location: 74 Prev | Next Part: 13541021 *Qty: 6 Stud Superseded
Location: 75 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 76 Prev | Next Part: 115201 *Qty: 6 Nut $16.89

* Quantity shown indicates the number of pieces used in the diagram.
