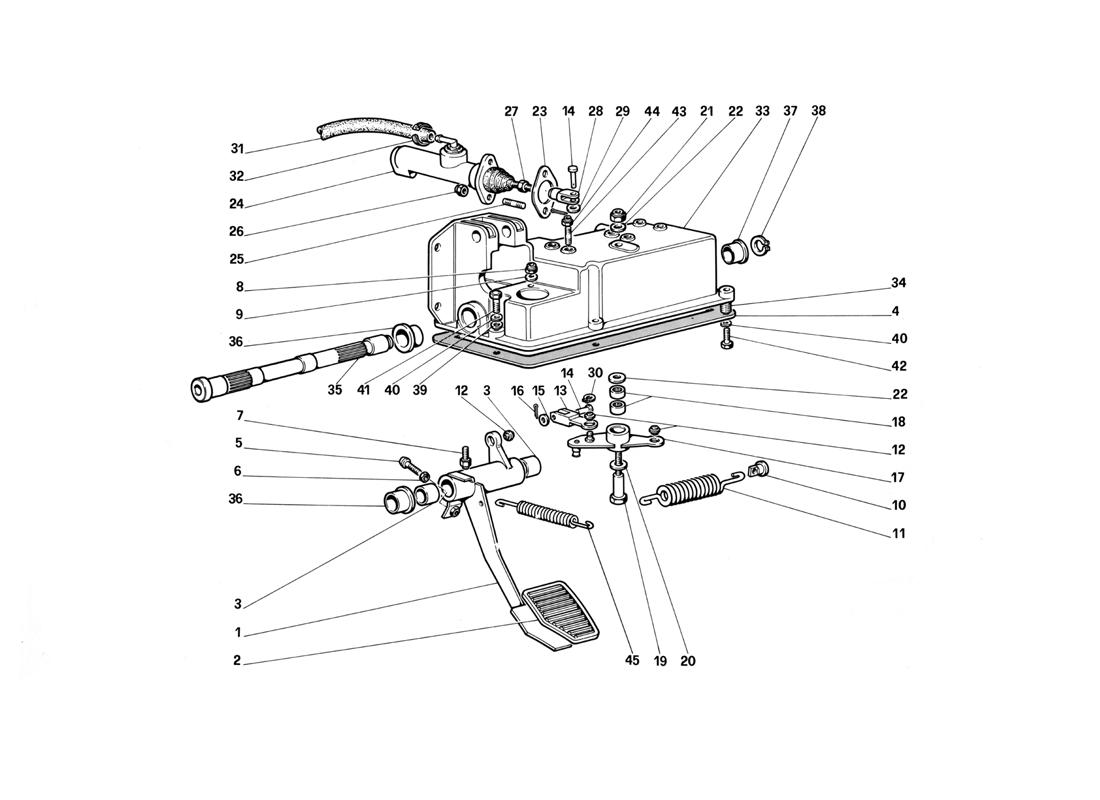

CLUTCH RELEASE CONTROL

Go to Split View

CLUTCH RELEASE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121230 *Qty: 1 Clotch pedal $131.26
Location: 2 Prev | Next Part: 106949 *Qty: 1 Pedal cover $11.10
Location: 3 Prev | Next Part: 103163 *Qty: 2 Bush $3.81
Location: 4 Prev | Next Part: 119331 *Qty: 1 Gasket $11.04
Location: 5 Prev | Next Part: 123961 *Qty: 1 Stop push rod $4.02
Location: 6 Prev | Next Part: 16102311 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 114825 *Qty: 1 Stop push rod $52.83
Location: 8 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 9 Prev | Next Part: 12601371 *Qty: 1 Washer Superseded
Location: 10 Prev | Next Part: 114828 *Qty: 1 Spring retaining pin $54.66
Location: 11 Prev | Next Part: 114826 *Qty: 1 Service spring $62.14
Location: 12 Prev | Next Part: 109407 *Qty: 2 Ball joint $27.57
Location: 13 Prev | Next Part: 121212 *Qty: 1 Fork $251.31
Location: 14 Prev | Next Part: 10050810 *Qty: 2 Pin Superseded
Location: 15 Prev | Next Part: 10519601 *Qty: 1 Washer Superseded
Location: 16 Prev | Next Part: 10734201 *Qty: 2 Split pin Call
Location: 17 Prev | Next Part: 121233 *Qty: 1 Relay lever $101.89
Location: 18 Prev | Next Part: 115430 *Qty: 2 Roller cage $17.31
Location: 19 Prev | Next Part: 114830 *Qty: 1 Pin for relay lever $15.26
Location: 20 Prev | Next Part: 112126 *Qty: 1 Shim $0.90
Location: 21 Prev | Next Part: 16105121 *Qty: 1 Selflocking nut Superseded
Location: 22 Prev | Next Part: 113500 *Qty: 2 Washer $14.10
Location: 23 Prev | Next Part: 124469 *Qty: 1 Spacer $3.98
Location: 24 Prev | Next Part: 123416 *Qty: 1 Clutch master cylinder Superseded
Location: 25 Prev | Next Part: 12354521 *Qty: 2 Stud Superseded
Location: 26 Prev | Next Part: 16104111 *Qty: 2 Nut Superseded
Location: 27 Prev | Next Part: 16102311 *Qty: 1 Locknut Superseded
Location: 28 Prev | Next Part: 10007871 *Qty: 1 Forck $19.78
Location: 29 Prev | Next Part: 12642701 *Qty: 1 Washer $0.90
Location: 30 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 31 Prev | Next Part: 125284 *Qty: 1 Feed pipe for clutch master cylinder Call
Location: 32 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 33 Prev | Next Part: 123247 *Qty: 1 Pedal support $451.67
Location: 34 Prev | Next Part: 124777 *Qty: 2 Threaded bush $19.35
Location: 35 Prev | Next Part: 112152 *Qty: 1 Pedals supporting pin $215.64
Location: 36 Prev | Next Part: 124687 *Qty: 2 Bush $7.10
Location: 37 Prev | Next Part: 124686 *Qty: 1 Bush $6.21
Location: 38 Prev | Next Part: 11066676 *Qty: 1 Spring ring $0.90
Location: 39 Prev | Next Part: 10519620 *Qty: 3 Washer Superseded
Location: 40 Prev | Next Part: 106852 *Qty: 5 Washer Superseded
Location: 41 Prev | Next Part: 16043821 *Qty: 3 Screw Superseded
Location: 42 Prev | Next Part: 16043421 *Qty: 2 Screw Superseded
Location: 43 Prev | Next Part: 11500121 *Qty: 4 Stud securing windshield wiper Superseded
Location: 44 Prev | Next Part: 12574221 *Qty: 4 Nut Superseded
Location: 45 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.15

* Quantity shown indicates the number of pieces used in the diagram.
