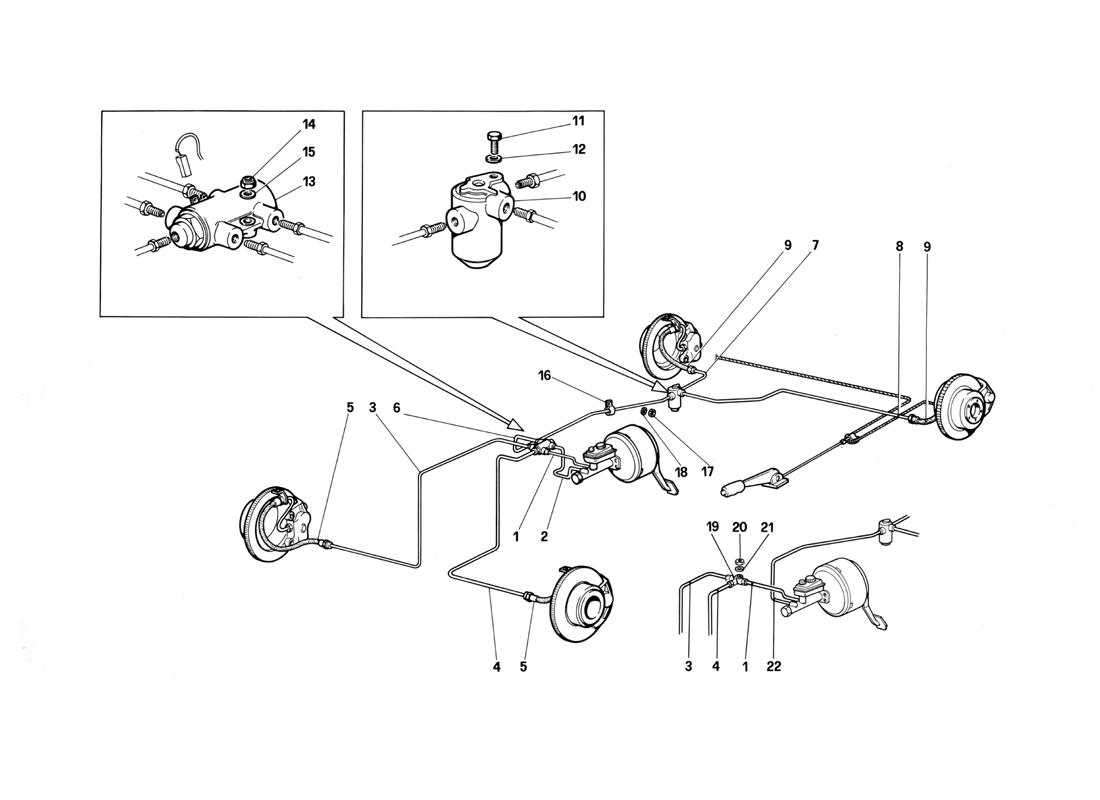

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105849 *Qty: 1 Pipe for front circuit $12.92
Location: 2 Prev | Next Part: 105850 *Qty: 1 Pipe from pump to valve (rear circuit)
For LHD version with brake failure indicator
$4.41
Location: 3 Prev | Next Part: 116397 *Qty: 1 Pipe to R.H. front brake hose $10.18
Location: 4 Prev | Next Part: 105850 *Qty: 1 Pipe to L.H. front brake hose $4.41
Location: 5 Prev | Next Part: 116373 *Qty: 2 Front brake hose Superseded
Location: 6 Prev | Next Part: 106182 *Qty: 1 Pipe from valve to rear braking regulator
For LHD version with brake failure indicator
$31.09
Location: 7 Prev | Next Part: 105849 *Qty: 1 Pipe to R.H. rear brake hose
For RHD use No. 125760
$12.92
Location: 8 Prev | Next Part: 118611 *Qty: 1 Pipe from braking action control to L.H. rear brake hose $8.00
Location: 9 Prev | Next Part: 116373 *Qty: 2 Rear brake hose Superseded
Location: 10 Prev | Next Part: 124735 *Qty: 1 Rear braking regulator
After exhaustion use PN. 132440
Superseded
Location: 11 Prev | Next Part: 16043021 *Qty: 1 Screw $0.90
Location: 12 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 13 Prev | Next Part: 108803 *Qty: 1 Brake failure indicator (LHD)
To exhaustion - Not for US
Superseded
Location: 14 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 15 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 16 Prev | Next Part: 10440890 *Qty: 2 Hose supporting bracket $0.90
Location: 17 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 18 Prev | Next Part: 10519401 *Qty: 2 Washer Superseded
Location: 19 Prev | Next Part: 101394 *Qty: 1 Three way nipple Call
Location: 20 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 21 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 22 Prev | Next Part: 126844 *Qty: 1 Pipe from pump to rear braking $16.82

* Quantity shown indicates the number of pieces used in the diagram.
