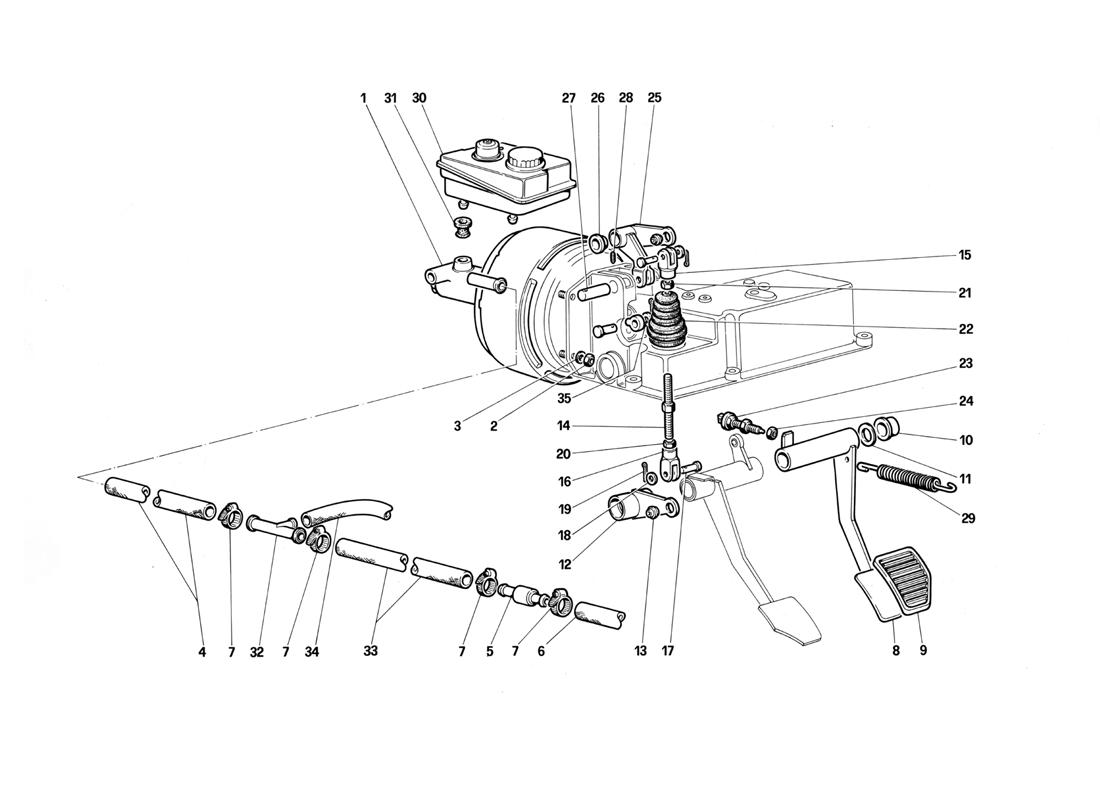

BRAKE HYDRAULIC SYSTEM

Go to Split View

BRAKE HYDRAULIC SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120928 *Qty: 1 Brake booster $2,173.21
Location: 2 Prev | Next Part: 16104411 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 4 Prev | Next Part: 119361 *Qty: 1 Hose from brake booster to 3-way $168.52
Location: 5 Prev | Next Part: 101538 *Qty: 1 No return valve
On exhaustion use No. 128435
Superseded
Location: 6 Prev | Next Part: 127213 *Qty: 1 Hose from valve to engine $18.93
Location: 7 Prev | Next Part: 12179590 *Qty: 8 Clamp Superseded
Location: 8 Prev | Next Part: 121232 *Qty: 1 Brake pedal $92.71
Location: 9 Prev | Next Part: 106950 *Qty: 1 Pedal cover $31.48
Location: 10 Prev | Next Part: 124686 *Qty: 1 Bush $6.22
Location: 11 Prev | Next Part: 112128 *Qty: 2 Shim, 1,0 mm.
If required
$0.90
Location: 11 Prev | Next Part: 112127 *Qty: 2 Shim 0,9 mm.
If required
$0.90
Location: 11 Prev | Next Part: 112130 *Qty: 2 Shim, 1,2 mm.
If required
$0.97
Location: 11 Prev | Next Part: 112129 *Qty: 2 Shim, 1,1 mm.
If required
$0.90
Location: 11 Prev | Next Part: 112131 *Qty: 2 Shim, 1,3 mm.
If required
$0.90
Location: 12 Prev | Next Part: 121217 *Qty: 1 Brake relay lever $63.01
Location: 13 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 14 Prev | Next Part: 119164 *Qty: 1 Tie rod $128.90
Location: 15 Prev | Next Part: 104910 *Qty: 1 Fork R.H. thread $10.53
Location: 16 Prev | Next Part: 104911 *Qty: 1 Fork, L.H. thread $25.82
Location: 17 Prev | Next Part: 10033411 *Qty: 3 Pin Superseded
Location: 18 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 19 Prev | Next Part: 10796401 *Qty: 3 Split pin Superseded
Location: 20 Prev | Next Part: 103157 *Qty: 1 Nut, L.H. thread
If out of stock use P.N. 10788711
Superseded
Location: 21 Prev | Next Part: 103160 *Qty: 1 Nut, R.H. thread
If out of stock use P.N. 11690911
Superseded
Location: 22 Prev | Next Part: 112157 *Qty: 1 Bellows $12.74
Location: 23 Prev | Next Part: 101663 *Qty: 1 Stop light switch $53.96
Location: 24 Prev | Next Part: 101662 *Qty: 1 Shock absorbing nut $3.62
Location: 25 Prev | Next Part: 121219 *Qty: 1 Brake booster lever $62.83
Location: 26 Prev | Next Part: 124586 *Qty: 2 Bush $5.08
Location: 27 Prev | Next Part: 124714 *Qty: 1 Relay lever supporting pin $130.59
Location: 28 Prev | Next Part: 13736911 *Qty: 1 Screw $0.90
Location: 29 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.14
Location: 30 Prev | Next Part: 119566 *Qty: 1 Reservoir Superseded
Location: 31 Prev | Next Part: 106625 *Qty: 2 Seal ring Superseded
Location: 32 Prev | Next Part: 100881 *Qty: 1 3-way union $6.26
Location: 33 Prev | Next Part: 120232 *Qty: 1 Pipe from 3-way union to valve Call
Location: 34 Prev | Next Part: 125031 *Qty: 1 Pipe from 3-way union to vacuum $15.45
Location: 35 Prev | Next Part: 10730521 *Qty: 1 Washer $3.01

* Quantity shown indicates the number of pieces used in the diagram.
