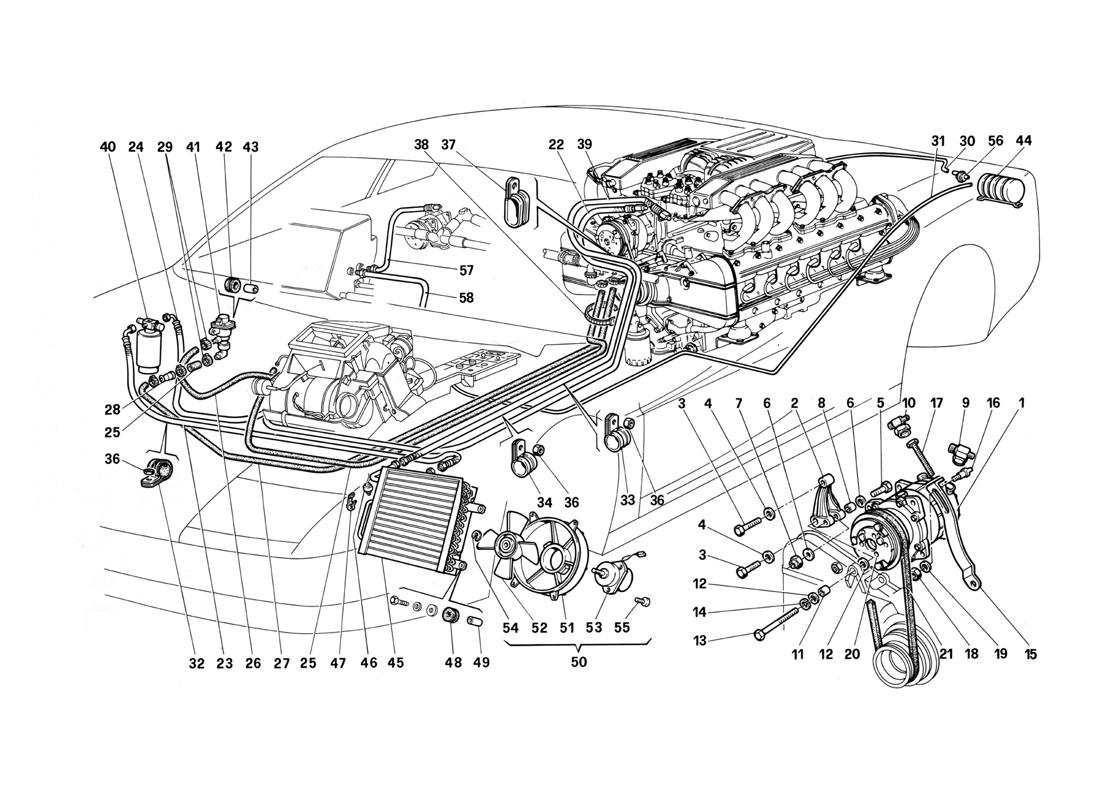

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123205 *Qty: 1 Compressor $1,039.11
Location: 2 Prev | Next Part: 122963 *Qty: 1 Compressor support $109.10
Location: 3 Prev | Next Part: 121537 *Qty: 2 Screw $3.75
Location: 4 Prev | Next Part: 12601471 *Qty: 2 Washer Superseded
Location: 5 Prev | Next Part: 11288021 *Qty: 1 Screw $0.90
Location: 6 Prev | Next Part: 14496601 *Qty: 2 Washer Superseded
Location: 7 Prev | Next Part: 12574511 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 123180 *Qty: 1 Spacer $3.19
Location: 9 Prev | Next Part: 124233 *Qty: 1 Intake union
Until engine no. ......…, and for US
Call
Location: 9 Prev | Next Part: 127786 *Qty: 1 Intake union
Starting from engine no. ......…, and not for US
Call
Location: 10 Prev | Next Part: 126928 *Qty: 1 Outlet union $104.01
Location: 11 Prev | Next Part: 121100 *Qty: 1 Bushing on crankcase cover $3.00
Location: 12 Prev | Next Part: 103025 *Qty: 2 Washer Call
Location: 13 Prev | Next Part: 15541721 *Qty: 1 Screw $1.17
Location: 14 Prev | Next Part: 106854 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 123181 *Qty: 1 Tension adjusting bracket $118.21
Location: 16 Prev | Next Part: 123188 *Qty: 1 Pin for adjusting bracket Call
Location: 17 Prev | Next Part: 125668 *Qty: 1 Tension adjusting screw $1.87
Location: 18 Prev | Next Part: 16104111 *Qty: 1 Nut Superseded
Location: 19 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 20 Prev | Next Part: 123813 *Qty: 1 Electromagnetic joint $961.31
Location: 21 Prev | Next Part: 122973 *Qty: 1 Compressor belt $58.01
Location: 22 Prev | Next Part: 124022 *Qty: 1 Hose from compressor to condenser $1,238.86
Location: 23 Prev | Next Part: 124023 *Qty: 1 Hose from condenser to filter
LHD
$106.47
Location: 23 Prev | Next Part: 125441 *Qty: 1 Hose from condenser to filter
RHD
$96.50
Location: 24 Prev | Next Part: 124024 *Qty: 1 Hose from filter to cooler
LHD
$133.27
Location: 24 Prev | Next Part: 130918 *Qty: 1 Hose from filter to cooler
RHD
$44.88
Location: 25 Prev | Next Part: 124027 *Qty: 1 Hose from engine to heater $120.13
Location: 26 Prev | Next Part: 61615000 *Qty: 1 Hose from heater to valve
LHD
$90.55
Location: 26 Prev | Next Part: 125445 *Qty: 1 Hose from heater to valve
RHD
$91.58
Location: 27 Prev | Next Part: 124029 *Qty: 1 Hose from valve to engine $189.99
Location: 28 Prev | Next Part: 124030 *Qty: 1 Metal undersize ring $7.36
Location: 29 Prev | Next Part: 12179990 *Qty: 5 Clamp Superseded
Location: 30 Prev | Next Part: 127455 *Qty: 1 Hose from engine to vacuum reservoir
For US
Call
Location: 30 Prev | Next Part: 124031 *Qty: 1 Hose from engine to vacuum reservoir
Not for US
$20.50
Location: 31 Prev | Next Part: 124032 *Qty: 1 Hose from reservoir to Call
Location: 32 Prev | Next Part: 10441490 *Qty: 2 Hose fastening bracket $0.90
Location: 33 Prev | Next Part: 10441890 *Qty: 2 Hose fastening bracket $0.90
Location: 34 Prev | Next Part: 119463 *Qty: 1 Hose fastening bracket $40.28
Location: 35 Prev | Next Part: 125003 *Qty: 1 Sleeve $23.65
Location: 36 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 37 Prev | Next Part: 61712500 *Qty: 1 Hose fastening bracket $2.23
Location: 38 Prev | Next Part: 125527 *Qty: 2 Hose supporting clamp $1.94
Location: 39 Prev | Next Part: 127787 *Qty: 1 Hose from evaporator to compressor
For intake union No. 127786 - Not for US
$322.20
Location: 39 Prev | Next Part: 124670 *Qty: 1 Hose, evaporator - compressor
For intake union no 124333
$241.64
Location: 40 Prev | Next Part: 129102 *Qty: 1 Pressostat
For filter 129101
$83.18
Location: 40 Prev | Next Part: 129101 *Qty: 1 Dryer filter
After exhaustion of P.N. 114730
Call
Location: 40 Prev | Next Part: 114730 *Qty: 1 Dryer filter
Until exhausted
Superseded
Location: 41 Prev | Next Part: 61079000 *Qty: 1 Electromagnetic valve $528.91
Location: 42 Prev | Next Part: 103549 *Qty: 2 Vibration-damping bushing $1.61
Location: 43 Prev | Next Part: 103550 *Qty: 2 Spacer $2.55
Location: 44 Prev | Next Part: 61642700 *Qty: 1 Vacuum reservoir complete with valve $655.76
Location: 45 Prev | Next Part: 61400300 *Qty: 1 Condenser Call
Location: 46 Prev | Next Part: 61047900 *Qty: 1 Bimetallic thermocontact $232.75
Location: 47 Prev | Next Part: 60815000 *Qty: 1 Clip $2.80
Location: 48 Prev | Next Part: 103549 *Qty: 4 Vibration-damping bushing $1.61
Location: 49 Prev | Next Part: 103550 *Qty: 4 Spacer $2.55
Location: 50 Prev | Next Part: 124040 *Qty: 1 Fan assembly
For A1 - U6 - S6 - C6
Superseded
Location: 50 Prev | Next Part: 131647 *Qty: 1 Fan assembly
For B1 - U7 S7 - C7
Superseded
Location: 51 Prev | Next Part: 60870300 *Qty: 1 Air conveyor Call
Location: 52 Prev | Next Part: 122953 *Qty: 1 Fan $17.86
Location: 53 Prev | Next Part: 117546 *Qty: 1 Motor Call
Location: 54 Prev | Next Part: 11087876 *Qty: 1 Stop ring $0.90
Location: 55 Prev | Next Part: 123298 *Qty: 3 Screw $0.90
Location: 56 Prev | Next Part: 61653800 *Qty: 1 Single-action valve Superseded
Location: 57 Prev | Next Part: 125851 *Qty: 1 Hose exchanger-compressor
For US
$130.94
Location: 58 Prev | Next Part: 125852 *Qty: 1 Hose evaporator-exchanger
For US
$622.50

* Quantity shown indicates the number of pieces used in the diagram.
