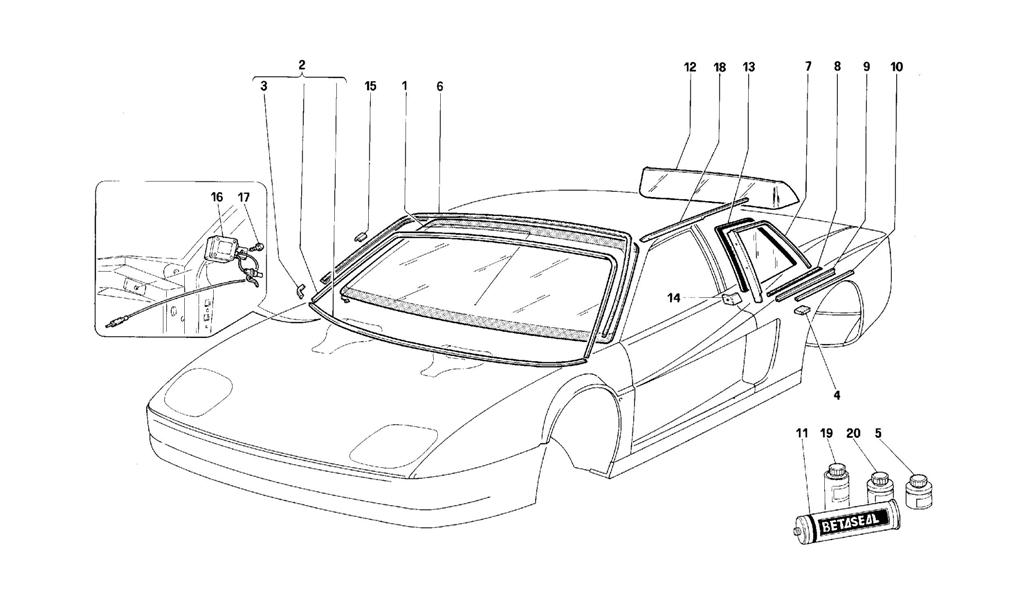

WINDOWS

Go to Split View

WINDOWS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63461600 *Qty: 1 Windshield glass Call
Location: 2 Prev | Next Part: 62983900 *Qty: 1 Windshield moulding Call
Location: 3 Prev | Next Part: 63425100 *Qty: 2 Angle support $59.61
Location: 4 Prev | Next Part: 63404600 *Qty: 16 Spacer $0.90
Location: 5 Prev | Next Part: 62864900 *Qty: 1 Primer for windshield guide paint Call
Location: 6 Prev | Next Part: 63403000 *Qty: 1 Gasket $76.95
Location: 7 Prev | Next Part: 61511500 *Qty: 1 R.H. glass moulding $599.37
Location: 7 Prev | Next Part: 61511600 *Qty: 1 L.H. glass moulding $619.52
Location: 8 Prev | Next Part: 61539900 *Qty: 1 R.H. gasket $91.05
Location: 8 Prev | Next Part: 61540000 *Qty: 1 L.H. gasket $89.47
Location: 9 Prev | Next Part: 61546800 *Qty: 1 R.H. run channel $43.58
Location: 9 Prev | Next Part: 61546900 *Qty: 1 L.H. run channel $43.58
Location: 10 Prev | Next Part: 61539000 *Qty: 1 L.H. lower frame $151.92
Location: 10 Prev | Next Part: 61538900 *Qty: 1 R.H. lower frame $151.92
Location: 11 Prev | Next Part: 63597000 *Qty: 1 Windscreen sealant Call
Location: 12 Prev | Next Part: 61511000 *Qty: 1 Rear window glass Call
Location: 13 Prev | Next Part: 61549500 *Qty: 1 R.H. rear glass $297.00
Location: 13 Prev | Next Part: 61549600 *Qty: 1 L.H. rear glass $190.04
Location: 14 Prev | Next Part: 61547000 *Qty: 1 R.H. lower covering $57.80
Location: 14 Prev | Next Part: 61547100 *Qty: 1 L.H. lower covering $57.80
Location: 15 Prev | Next Part: 63023300 *Qty: 14 Spacer $0.99
Location: 16 Prev | Next Part: 152497 *Qty: 1 Antenna preamplifier $398.19
Location: 17 Prev | Next Part: 16296421 *Qty: 1 Screw $41.41
Location: 18 Prev | Next Part: 61511100 *Qty: 1 R.H. drip $224.99
Location: 18 Prev | Next Part: 61511200 *Qty: 1 L.H. drip Call
Location: 19 Prev | Next Part: 63397600 *Qty: 1 Windshield degreaser Call
Location: 20 Prev | Next Part: 62864800 *Qty: 1 Primer for glass Call

* Quantity shown indicates the number of pieces used in the diagram.
