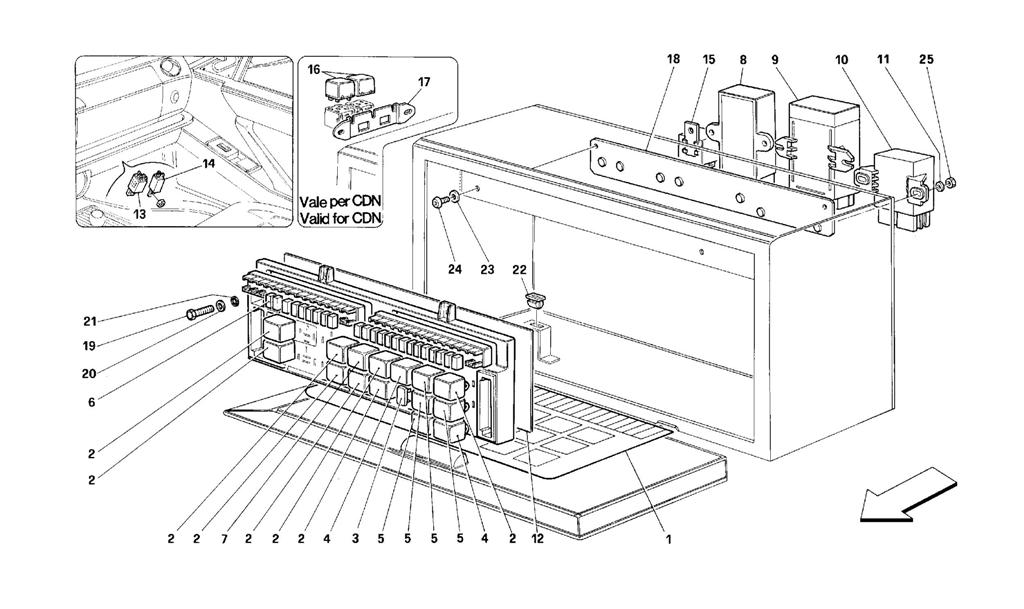

VALVES AND RELAYS

Go to Split View

VALVES AND RELAYS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 161550 *Qty: 1 Control unit, assy -Not for CH $1,516.72
Location: - Prev | Next Part: 163224 *Qty: 1 Control unit, assy -Valid for CH $1,145.88
Location: 1 Prev | Next Part: 161552 *Qty: 1 Indication sheet $11.91
Location: 2 Prev | Next Part: 157991 *Qty: 8 Relay $35.83
Location: 3 Prev | Next Part: 61936600 *Qty: 5 Jumper for relay $22.96
Location: 4 Prev | Next Part: 157802 *Qty: 2 Relay $35.00
Location: 5 Prev | Next Part: 175318 *Qty: 4 Relay $35.85
Location: 6 Prev | Next Part: 125240 *Qty: 3 7,5A Fuse $0.90
Location: 6 Prev | Next Part: 125241 *Qty: 7 10A Fuse $0.90
Location: 6 Prev | Next Part: 125242 *Qty: 7 15A Fuse $0.90
Location: 6 Prev | Next Part: 125243 *Qty: 4 20A Fuse $0.90
Location: 6 Prev | Next Part: 126031 *Qty: 3 25A Fuse $0.90
Location: 7 Prev | Next Part: 157991 *Qty: 1 Relay -Valid for CH $35.83
Location: 8 Prev | Next Part: 150039 *Qty: 1 Actuator door control unit $202.26
Location: 9 Prev | Next Part: 147177 *Qty: 1 Window regulator control unit $343.21
Location: 10 Prev | Next Part: 61079400 *Qty: 1 A.C. control unit Call
Location: 11 Prev | Next Part: 10519377 *Qty: 7 Washer $0.90
Location: 12 Prev | Next Part: 116055 *Qty: 1 Rear cover Call
Location: 13 Prev | Next Part: 137667 *Qty: 1 Buzzer -Not for CDN $85.01
Location: 13 Prev | Next Part: 61830700 *Qty: 1 Buzzer -Valid for CDN $85.41
Location: 14 Prev | Next Part: 159265 *Qty: 1 Intermittence for direction and hazard Call
Location: 15 Prev | Next Part: 61827900 *Qty: 1 Wiper intermittence $48.46
Location: 16 Prev | Next Part: 157992 *Qty: 2 Relay -Valid for CDN $41.32
Location: 17 Prev | Next Part: 137669 *Qty: 1 Bracket $7.91
Location: 18 Prev | Next Part: 63677300 *Qty: 1 Control unit bracket $29.26
Location: 19 Prev | Next Part: 13272472 *Qty: 2 Screw $0.90
Location: 20 Prev | Next Part: 10615279 *Qty: 2 Washer Call
Location: 21 Prev | Next Part: 12642878 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 116857 *Qty: 2 Spring Call
Location: 23 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 14778818 *Qty: 2 Screw Call
Location: 25 Prev | Next Part: 113647 *Qty: 7 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
