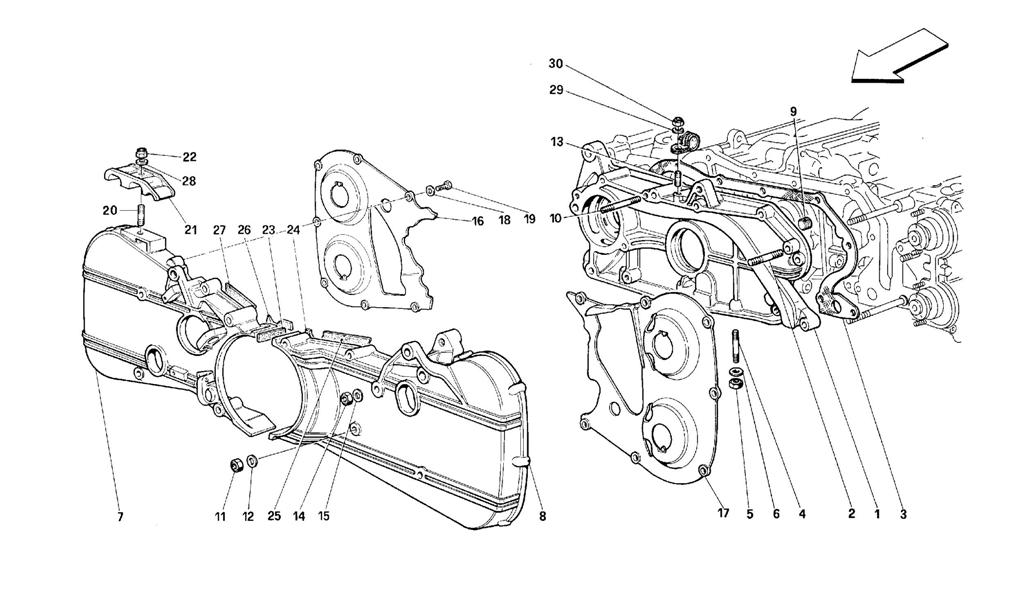

TIMING SYSTEM - COVERS

Go to Split View

TIMING SYSTEM - COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 143385 *Qty: 1 Front cover -Not as spare parts -With crankcase complete Call
Location: 2 Prev | Next Part: 13450424 *Qty: 1 Stud $7.12
Location: 3 Prev | Next Part: 150197 *Qty: 1 Gasket $39.87
Location: 4 Prev | Next Part: 13449624 *Qty: 3 Stud $12.05
Location: 5 Prev | Next Part: 102742 *Qty: 3 Nut $0.90
Location: 6 Prev | Next Part: 12601474 *Qty: 3 Washer $0.90
Location: 7 Prev | Next Part: 147863 *Qty: 1 R.H. cover $611.26
Location: 8 Prev | Next Part: 152472 *Qty: 1 L.H. cover $801.64
Location: 9 Prev | Next Part: 127635 *Qty: 1 Plug $4.35
Location: 10 Prev | Next Part: 13544321 *Qty: 3 Stud Superseded
Location: 11 Prev | Next Part: 101139 *Qty: 3 Nut $0.90
Location: 12 Prev | Next Part: 12601374 *Qty: 3 Washer $0.90
Location: 13 Prev | Next Part: 11500024 *Qty: 1 Stud $1.06
Location: 14 Prev | Next Part: 102742 *Qty: 1 Nut $0.90
Location: 15 Prev | Next Part: 12601474 *Qty: 1 Washer $0.90
Location: 16 Prev | Next Part: 123705 *Qty: 1 R.H. belt protection plate Call
Location: 17 Prev | Next Part: 154689 *Qty: 1 L.H. belt protection plate $42.97
Location: 18 Prev | Next Part: 12601174 *Qty: 14 Washer $0.90
Location: 19 Prev | Next Part: 10977724 *Qty: 14 Screw $0.90
Location: 20 Prev | Next Part: 13541524 *Qty: 1 Stud $1.01
Location: 21 Prev | Next Part: 148601 *Qty: 1 Cables support $25.81
Location: 22 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 23 Prev | Next Part: 128029 *Qty: 1 Adhesive protection -Not as spare parts now $2.21
Location: 24 Prev | Next Part: 128030 *Qty: 1 Adhesive protection $6.80
Location: 25 Prev | Next Part: 128031 *Qty: 1 Adhesive protection $3.06
Location: 26 Prev | Next Part: 128032 *Qty: 1 Adhesive protection $3.06
Location: 27 Prev | Next Part: 128033 *Qty: 1 Adhesive protection $2.54
Location: 28 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 29 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 30 Prev | Next Part: 102741 *Qty: 1 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
