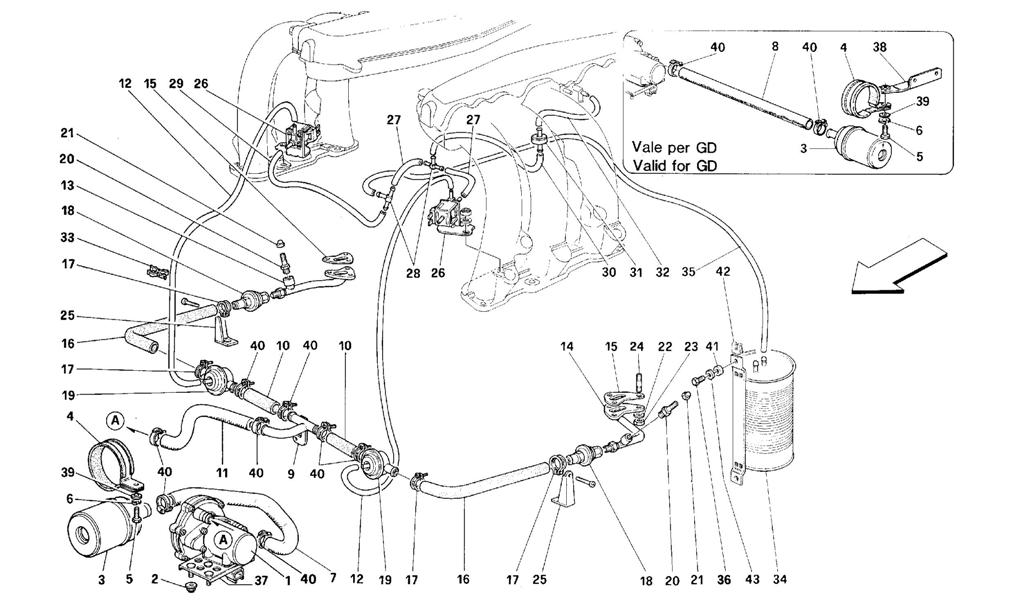

SECONDARY AIR PUMP AND LINES

Go to Split View

SECONDARY AIR PUMP AND LINES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148049 *Qty: 1 Electric air pump Call
Location: 2 Prev | Next Part: 15896214 *Qty: 3 Nut $0.90
Location: 3 Prev | Next Part: 70000967 *Qty: 1 Air filter $114.90
Location: 4 Prev | Next Part: 126353 *Qty: 1 Bracket $34.02
Location: 5 Prev | Next Part: 10902111 *Qty: 1 Screw Superseded
Location: 6 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 7 Prev | Next Part: 149712 *Qty: 1 Pipe from air filter to pump -Not for GD $455.57
Location: 8 Prev | Next Part: 151141 *Qty: 1 Pipe from air filter to pump -Valid for GD $286.95
Location: 9 Prev | Next Part: 148076 *Qty: 1 3-way union $86.59
Location: 10 Prev | Next Part: 126341 *Qty: 2 Pipe from connection to cut-off valve $18.12
Location: 11 Prev | Next Part: 149701 *Qty: 1 Pipe from 3-way to pump $330.61
Location: 12 Prev | Next Part: 128907 *Qty: 2 Pipe from cut-off to solenoid valve Call
Location: 13 Prev | Next Part: 149298 *Qty: 1 R.H. air injection pipe $229.56
Location: 14 Prev | Next Part: 149289 *Qty: 1 L.H. air injection pipe $218.54
Location: 15 Prev | Next Part: 146194 *Qty: 2 Gasket $7.14
Location: 16 Prev | Next Part: 125776 *Qty: 2 Pipe $29.30
Location: 17 Prev | Next Part: 10169290 *Qty: 4 Clamp $10.87
Location: 18 Prev | Next Part: 148494 *Qty: 2 Secondary air valve $39.00
Location: 19 Prev | Next Part: 147390 *Qty: 2 Cut-off valve $320.73
Location: 20 Prev | Next Part: 144240 *Qty: 2 Connection $47.84
Location: 21 Prev | Next Part: 150595 *Qty: 2 Nut $1.17
Location: 22 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 23 Prev | Next Part: 115201 *Qty: 6 Nut $16.89
Location: 24 Prev | Next Part: 13541024 *Qty: 6 Stud $0.90
Location: 25 Prev | Next Part: 149301 *Qty: 2 Bracket $15.95
Location: 26 Prev | Next Part: 111704 *Qty: 2 Solenoid valve $196.96
Location: 27 Prev | Next Part: 115666 *Qty: 2 Pipe to connection $21.63
Location: 28 Prev | Next Part: 121793 *Qty: 2 Connection $0.90
Location: 29 Prev | Next Part: 118901 *Qty: 1 Pipe from solenoid valve to connection $6.07
Location: 30 Prev | Next Part: 141235 *Qty: 1 Pipe from connection to valve $10.69
Location: 31 Prev | Next Part: 62507200 *Qty: 1 Valve $26.41
Location: 32 Prev | Next Part: 131042 *Qty: 1 Pipe from valve to plenum chamber connection $4.92
Location: 33 Prev | Next Part: 124551 *Qty: 2 Spring $1.76
Location: 34 Prev | Next Part: 168038 *Qty: 1 Vacuum tank $655.69
Location: 35 Prev | Next Part: 115665 *Qty: 1 Pipe from vacuum tank to connection $45.03
Location: 36 Prev | Next Part: 10978221 *Qty: 2 Screw $1.56
Location: 37 Prev | Next Part: 149111 *Qty: 1 Air pump bracket $31.59
Location: 38 Prev | Next Part: 151138 *Qty: 1 Air filter bracket -Valid for GD $16.29
Location: 39 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 40 Prev | Next Part: 13000490 *Qty: 8 Clamp Call
Location: 41 Prev | Next Part: 62567400 *Qty: 2 Spacer $0.91
Location: 42 Prev | Next Part: 62764200 *Qty: 2 Spring $0.90
Location: 43 Prev | Next Part: 12638177 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
