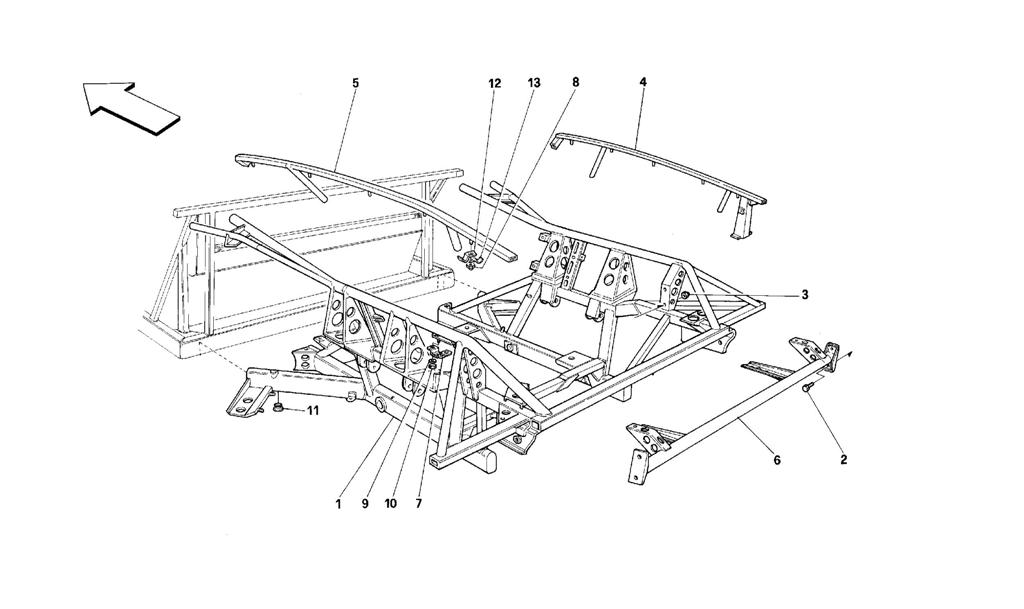

REAR FRAME

Go to Split View

REAR FRAME

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 165700 *Qty: 0 Description not available Call
Location: - Prev | Next Part: 165701 *Qty: 0 TELAIO POST.CPL-512M CANADA- Call
Location: - Prev | Next Part: 165703 *Qty: 0 TELAIO POST.CPL -512M GB E S.AFRICA- $11,533.20
Location: - Prev | Next Part: 165704 *Qty: 0 TELAIO POST.CPL -512M AUSTRALIA- Call
Location: - Prev | Next Part: 165705 *Qty: 0 TELAIO POST.CPL -512M SVIZZERA- $11,533.20
Location: - Prev | Next Part: 165706 *Qty: 0 TELAIO POST.CPL -512M GOLFO- Call
Location: - Prev | Next Part: 165707 *Qty: 0 TELAIO POST.CPL -512M GIAPPONE- $10,332.27
Location: 1 Prev | Next Part: 165699 *Qty: 0 TELAIO POST.CPL-512M BASE- $11,738.17
Location: 2 Prev | Next Part: 14360024 *Qty: 4 Screw $0.90
Location: 3 Prev | Next Part: 149719 *Qty: 4 Nut Call
Location: 4 Prev | Next Part: 165697 *Qty: 1 R.H. lateral cross member $312.42
Location: 5 Prev | Next Part: 165698 *Qty: 1 L.H. lateral cross member $263.18
Location: 6 Prev | Next Part: 148177 *Qty: 1 Removable cross member -Not for CH $1,677.58
Location: 6 Prev | Next Part: 153054 *Qty: 1 Removable cross member -Valid for CH $4,428.28
Location: 7 Prev | Next Part: 151649 *Qty: 1 Bracket Call
Location: 8 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 9 Prev | Next Part: 10519281 *Qty: 2 Washer Call
Location: 10 Prev | Next Part: 62790300 *Qty: 2 Nut $0.90
Location: 11 Prev | Next Part: 62765100 *Qty: 11 Plug $0.90
Location: 12 Prev | Next Part: 151649 *Qty: 1 Bracket Call
Location: 13 Prev | Next Part: 151649 *Qty: 1 Bracket Call

* Quantity shown indicates the number of pieces used in the diagram.
