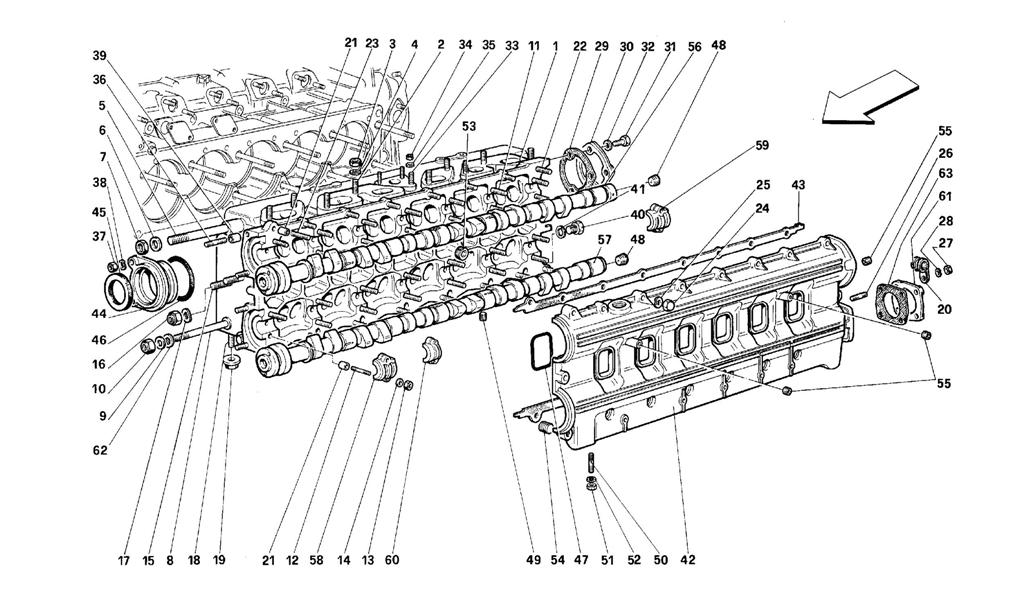

LEFT CYLINDER HEAD

Go to Split View

LEFT CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 137717 *Qty: 1 Left cylinder head, complete $10,100.42
Location: 1 Prev | Next Part: 139960 *Qty: 1 Left cylinder head -Not as spare parts -With complete cylinder head 137717 Call
Location: 2 Prev | Next Part: 12354524 *Qty: 10 Stud $21.12
Location: 3 Prev | Next Part: 16100821 *Qty: 10 Nut $3.57
Location: 4 Prev | Next Part: 11194079 *Qty: 10 Washer Call
Location: 5 Prev | Next Part: 13953124 *Qty: 1 Stud $7.49
Location: 6 Prev | Next Part: 12601474 *Qty: 1 Washer $0.90
Location: 7 Prev | Next Part: 102742 *Qty: 1 Nut $0.90
Location: 8 Prev | Next Part: 13970321 *Qty: 1 Stud $3.86
Location: 9 Prev | Next Part: 12604479 *Qty: 1 Washer $3.73
Location: 10 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 11 Prev | Next Part: 102735 *Qty: 24 Stud (inner caps) $24.51
Location: 12 Prev | Next Part: 102754 *Qty: 4 Stud (outer caps) $6.30
Location: 13 Prev | Next Part: 15896214 *Qty: 28 Nut $0.90
Location: 14 Prev | Next Part: 11197771 *Qty: 28 Washer Superseded
Location: 15 Prev | Next Part: 13543424 *Qty: 2 Stud (belt stretcher) $0.90
Location: 16 Prev | Next Part: 101139 *Qty: 2 Nut $0.90
Location: 17 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 18 Prev | Next Part: 13543524 *Qty: 12 Stud $0.90
Location: 19 Prev | Next Part: 124525 *Qty: 12 Nut Superseded
Location: 20 Prev | Next Part: 10441790 *Qty: 1 Bracket $0.97
Location: 21 Prev | Next Part: 102725 *Qty: 30 Dowel $1.14
Location: 22 Prev | Next Part: 13541324 *Qty: 16 Stud for covers $1.15
Location: 23 Prev | Next Part: 13541424 *Qty: 2 Stud on dowel $0.90
Location: 24 Prev | Next Part: 100044 *Qty: 18 Nut $0.90
Location: 25 Prev | Next Part: 12601274 *Qty: 18 Washer $0.90
Location: 26 Prev | Next Part: 13541024 *Qty: 4 Stud $0.90
Location: 27 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 28 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 29 Prev | Next Part: 150074 *Qty: 1 Gasket $8.96
Location: 30 Prev | Next Part: 140102 *Qty: 1 Rear cover $16.81
Location: 31 Prev | Next Part: 10902424 *Qty: 3 Screw $0.90
Location: 32 Prev | Next Part: 11197771 *Qty: 3 Washer Superseded
Location: 33 Prev | Next Part: 13541024 *Qty: 3 Stud $0.90
Location: 34 Prev | Next Part: 102741 *Qty: 3 Nut $0.90
Location: 35 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 36 Prev | Next Part: 13541124 *Qty: 4 Stud $8.43
Location: 37 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 38 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 39 Prev | Next Part: 102725 *Qty: 4 Dowel $1.14
Location: 40 Prev | Next Part: 10300740 *Qty: 1 Water drain plug $16.59
Location: 41 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 42 Prev | Next Part: 148785 *Qty: 1 Left cylinder head cover -Not as spare parts -With complete cylinder head 137717 Call
Location: 43 Prev | Next Part: 150195 *Qty: 1 Gasket $106.23
Location: 44 Prev | Next Part: 121116 *Qty: 2 Front cover $177.73
Location: 45 Prev | Next Part: 133628 *Qty: 2 Sealing ring $124.99
Location: 46 Prev | Next Part: 117036 *Qty: 2 Sealing ring $6.63
Location: 47 Prev | Next Part: 127649 *Qty: 6 Sealing ring $6.70
Location: 48 Prev | Next Part: 10269750 *Qty: 2 Plug $2.07
Location: 49 Prev | Next Part: 14326150 *Qty: 3 Plug $0.90
Location: 50 Prev | Next Part: 11500124 *Qty: 2 Stud $0.90
Location: 51 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 52 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 53 Prev | Next Part: 127635 *Qty: 2 Plug $1.90
Location: 54 Prev | Next Part: 10269750 *Qty: 3 Plug $2.07
Location: 55 Prev | Next Part: 13525470 *Qty: 3 Heli-coil $0.90
Location: 56 Prev | Next Part: 145600 *Qty: 1 Left intake camshaft, complete $1,076.71
Location: 57 Prev | Next Part: 141425 *Qty: 1 Left exhaust camshaft, complete $1,827.21
Location: 58 Prev | Next Part: 114499 *Qty: 2 Front cap -Not as spare parts -With complete cylinder head 137717 Call
Location: 59 Prev | Next Part: 114497 *Qty: 2 Rear cap -Not as spare parts -With complete cylinder head 137717 Call
Location: 60 Prev | Next Part: 126811 *Qty: 10 Intermediate cap -Not as spare parts -With complete cylinder head 137717 Call
Location: 61 Prev | Next Part: 146928 *Qty: 1 Rear cover $25.91
Location: 62 Prev | Next Part: 128010 *Qty: 1 Washer $3.43
Location: 63 Prev | Next Part: 150194 *Qty: 1 Gasket $21.73

* Quantity shown indicates the number of pieces used in the diagram.
