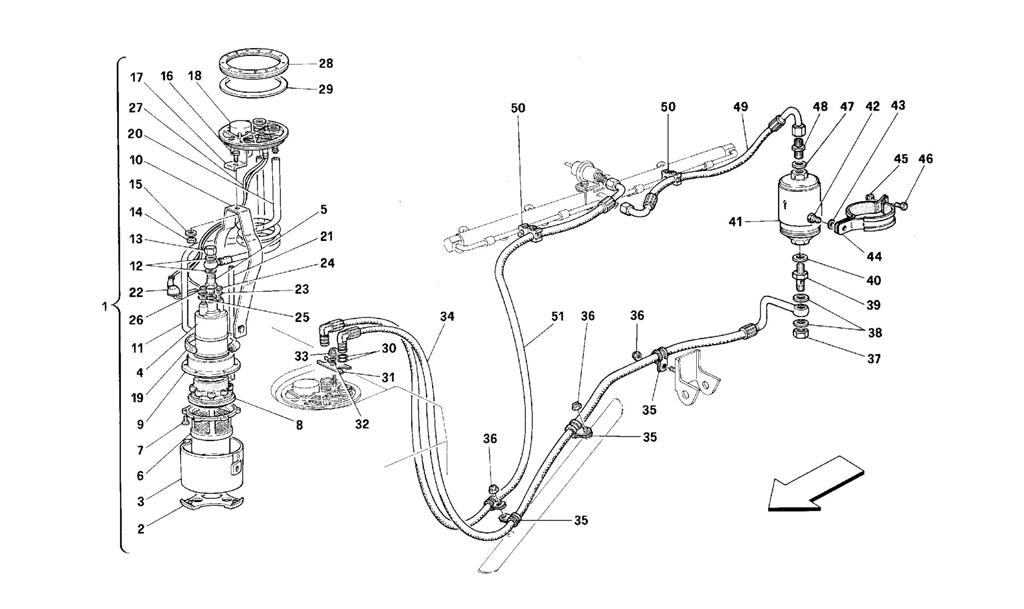

FUEL PUMP AND PIPES

Go to Split View

FUEL PUMP AND PIPES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 161561 *Qty: 2 Fuel pump assy $617.22
Location: 2 Prev | Next Part: 126807 *Qty: 2 Silent-block $35.50
Location: 3 Prev | Next Part: 126806 *Qty: 2 Chamber Call
Location: 4 Prev | Next Part: 155592 *Qty: 2 Fuel pump $708.84
Location: 5 Prev | Next Part: 120098 *Qty: 2 Not return valve $163.68
Location: 6 Prev | Next Part: 126808 *Qty: 2 Filter inside chamber $45.03
Location: 7 Prev | Next Part: 15671101 *Qty: 12 Screw $6.37
Location: 8 Prev | Next Part: 153188 *Qty: 2 Gasket $125.00
Location: 9 Prev | Next Part: 126810 *Qty: 2 Filter cover Call
Location: 10 Prev | Next Part: 142822 *Qty: 2 Spring $17.65
Location: 11 Prev | Next Part: 146952 *Qty: 2 Recover pipe $11.06
Location: 12 Prev | Next Part: 113910 *Qty: 4 Gasket Superseded
Location: 13 Prev | Next Part: 171752 *Qty: 2 Plug $24.47
Location: 14 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 15 Prev | Next Part: 12647624 *Qty: 4 Washer $0.90
Location: 16 Prev | Next Part: 10902011 *Qty: 2 Screw $8.96
Location: 17 Prev | Next Part: 146955 *Qty: 2 Spacer $25.46
Location: 18 Prev | Next Part: 142848 *Qty: 2 Cover Call
Location: 19 Prev | Next Part: 13000890 *Qty: 2 Clamp $1.39
Location: 20 Prev | Next Part: 146948 *Qty: 2 Feeding pipe Call
Location: 21 Prev | Next Part: 126827 *Qty: 2 Exhaust pipe Call
Location: 22 Prev | Next Part: 130146 *Qty: 4 Cap $9.78
Location: 23 Prev | Next Part: 149951 *Qty: 2 Washer Superseded
Location: 24 Prev | Next Part: 15896470 *Qty: 2 Nut $0.90
Location: 25 Prev | Next Part: 10615270 *Qty: 2 Washer $0.90
Location: 26 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 142795 *Qty: 2 Fuel pump cables assy $106.07
Location: 28 Prev | Next Part: 126838 *Qty: 2 Ring nut $247.27
Location: 29 Prev | Next Part: 126835 *Qty: 2 Gasket $50.52
Location: 30 Prev | Next Part: 127816 *Qty: 4 Gasket $4.65
Location: 31 Prev | Next Part: 129316 *Qty: 2 Plate Call
Location: 32 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 33 Prev | Next Part: 14084211 *Qty: 2 Nut $0.90
Location: 34 Prev | Next Part: 148843 *Qty: 1 Fuel pipe from pump to R.H. filter $594.40
Location: 34 Prev | Next Part: 148844 *Qty: 1 Fuel pipe from pump to L.H. filter $581.62
Location: 35 Prev | Next Part: 10441490 *Qty: 8 Bracket $0.90
Location: 36 Prev | Next Part: 14059211 *Qty: 8 Nut $0.90
Location: 37 Prev | Next Part: 171752 *Qty: 2 Union $24.47
Location: 38 Prev | Next Part: 11270160 *Qty: 4 Gasket $2.02
Location: 39 Prev | Next Part: 148834 *Qty: 2 Union $10.37
Location: 40 Prev | Next Part: 10280060 *Qty: 2 Gasket $0.90
Location: 41 Prev | Next Part: 186922 *Qty: 2 Fuel filter $38.00
Location: 42 Prev | Next Part: 16043124 *Qty: 4 Screw $0.90
Location: 43 Prev | Next Part: 14496501 *Qty: 4 Washer $0.90
Location: 44 Prev | Next Part: 153389 *Qty: 2 Bracket $143.15
Location: 45 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 46 Prev | Next Part: 10902424 *Qty: 2 Screw $0.90
Location: 47 Prev | Next Part: 113910 *Qty: 2 Gasket Superseded
Location: 48 Prev | Next Part: 109797 *Qty: 2 Union $45.03
Location: 49 Prev | Next Part: 148841 *Qty: 1 Fuel pipe from filter to R.H. flute Call
Location: 49 Prev | Next Part: 148842 *Qty: 1 Fuel pipe from filter to L.H. flute Call
Location: 50 Prev | Next Part: 149906 *Qty: 4 Spring $2.90
Location: 51 Prev | Next Part: 148845 *Qty: 1 Fuel pipe from pressure adjuster to R.H. pump $587.34
Location: 51 Prev | Next Part: 148846 *Qty: 1 Fuel pipe from pressure adjuster to L.H. pump $587.34

* Quantity shown indicates the number of pieces used in the diagram.
