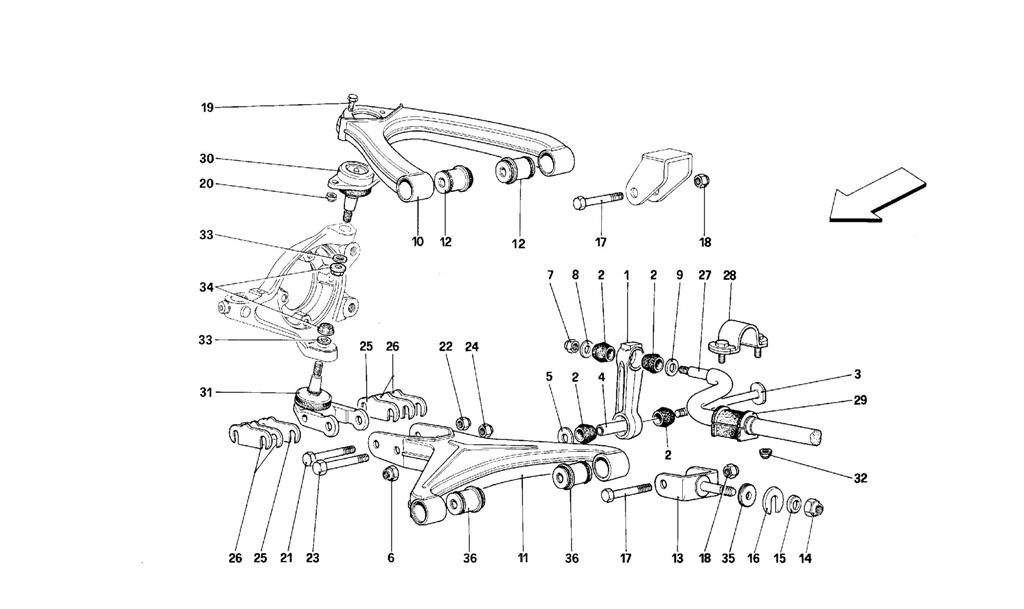

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 114691 *Qty: 2 Bar link $768.73
Location: 2 Prev | Next Part: 100984 *Qty: 8 Pad $15.95
Location: 3 Prev | Next Part: 132665 *Qty: 2 Pin $14.36
Location: 4 Prev | Next Part: 100985 *Qty: 2 Spacer $27.54
Location: 5 Prev | Next Part: 105334 *Qty: 2 Washer $38.14
Location: 6 Prev | Next Part: 148020 *Qty: 2 Nut $5.54
Location: 7 Prev | Next Part: 102742 *Qty: 2 Nut $0.90
Location: 8 Prev | Next Part: 112874 *Qty: 2 Washer $3.11
Location: 9 Prev | Next Part: 10520224 *Qty: 2 Washer Superseded
Location: 10 Prev | Next Part: 133094 *Qty: 2 Upper lever $2,141.55
Location: 11 Prev | Next Part: 159154 *Qty: 2 Lower lever Call
Location: 12 Prev | Next Part: 154537 *Qty: 4 Flamblock for upper lever Superseded
Location: 13 Prev | Next Part: 146462 *Qty: 4 Lower fork $191.72
Location: 14 Prev | Next Part: 150238 *Qty: 4 Nut $0.90
Location: 15 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 16 Prev | Next Part: 107338 *Qty: 0 Washer thick. 1,5 mm -Possible mounting $2.00
Location: 16 Prev | Next Part: 107339 *Qty: 0 Washer thick. 2 mm -Possible mounting $2.00
Location: 16 Prev | Next Part: 107340 *Qty: 0 Washer thick. 2,5 mm -Possible mounting $2.00
Location: 16 Prev | Next Part: 107341 *Qty: 0 Washer thick. 3 mm -Possible mounting $2.00
Location: 16 Prev | Next Part: 107342 *Qty: 0 Washer thick. 3,25 mm -Possible mounting $1.18
Location: 16 Prev | Next Part: 101039 *Qty: 0 Washer thick. 1 mm -Possible mounting $2.00
Location: 17 Prev | Next Part: 106419 *Qty: 8 Screw $23.46
Location: 18 Prev | Next Part: 148020 *Qty: 8 Nut $5.54
Location: 19 Prev | Next Part: 16043724 *Qty: 4 Screw $0.90
Location: 20 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 21 Prev | Next Part: 15971734 *Qty: 2 Screw $40.09
Location: 22 Prev | Next Part: 102742 *Qty: 2 Nut $0.90
Location: 23 Prev | Next Part: 132667 *Qty: 2 Screw $8.96
Location: 24 Prev | Next Part: 148020 *Qty: 2 Nut $5.54
Location: 25 Prev | Next Part: 101022 *Qty: 0 Incidence adjust. plate -Possible mounting $1.93
Location: 26 Prev | Next Part: 115073 *Qty: 0 Incidence adjust. plate -Possible mounting $1.93
Location: 27 Prev | Next Part: 149565 *Qty: 1 Stabilizer bar $286.13
Location: 28 Prev | Next Part: 138389 *Qty: 2 Cramp to ret. bar $86.44
Location: 29 Prev | Next Part: 149566 *Qty: 2 Pad $66.75
Location: 30 Prev | Next Part: 132776 *Qty: 2 Upper ball joint $174.53
Location: 31 Prev | Next Part: 133944 *Qty: 2 Lower ball joint $153.98
Location: 32 Prev | Next Part: 14058511 *Qty: 4 Nut $0.90
Location: 33 Prev | Next Part: 122237 *Qty: 4 Washer $5.52
Location: 34 Prev | Next Part: 149807 *Qty: 4 Nut $1.39
Location: 35 Prev | Next Part: 159406 *Qty: 4 Washer $15.96
Location: 36 Prev | Next Part: 154537 *Qty: 4 Flamblock for lower lever Superseded

* Quantity shown indicates the number of pieces used in the diagram.
