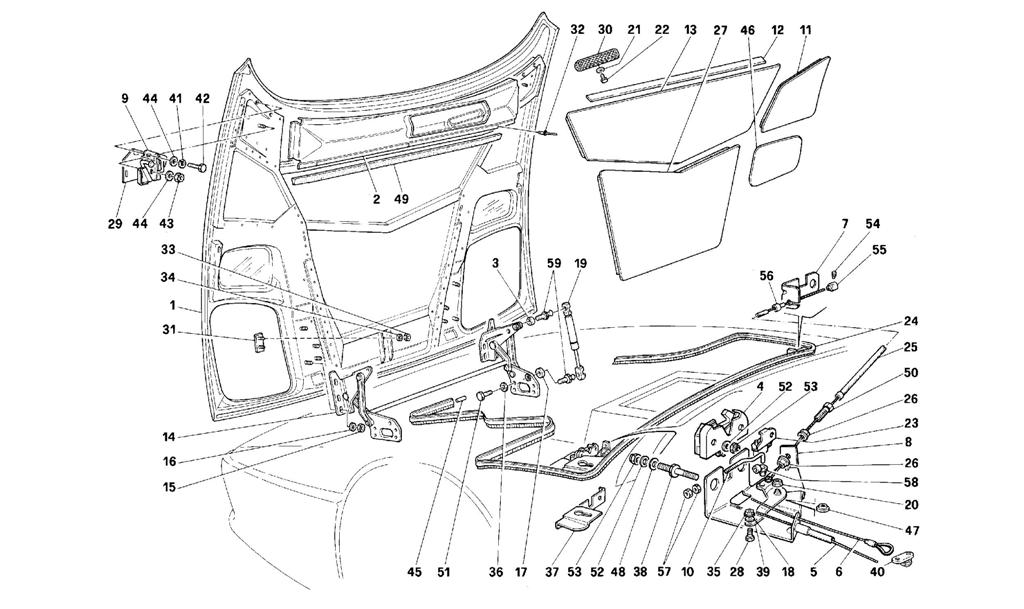

FRONT HOOD

Go to Split View

FRONT HOOD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64630600 *Qty: 1 Front bonnet -Not for GD Call
Location: 1 Prev | Next Part: 64630700 *Qty: 1 Front bonnet -Not as spare pars now -Replaced by 64630600 -Valid for GD Call
Location: 2 Prev | Next Part: 64543800 *Qty: 1 Water shield panel -Valid for GD $671.69
Location: 2 Prev | Next Part: 64441500 *Qty: 1 Water shield panel -Not for GD $482.41
Location: 3 Prev | Next Part: 64687100 *Qty: 2 Upper spacer $5.61
Location: 4 Prev | Next Part: 60277407 *Qty: 2 Bonnet lock Call
Location: 5 Prev | Next Part: 63088400 *Qty: 1 Cable for opening bonnet $63.69
Location: 6 Prev | Next Part: 63088500 *Qty: 1 Emergency cable $10.70
Location: 7 Prev | Next Part: 61495900 *Qty: 1 Sheath support plate -Passenger side $64.27
Location: 8 Prev | Next Part: 63114300 *Qty: 1 Sheath support plate -Driver side $71.63
Location: 9 Prev | Next Part: 63051600 *Qty: 1 R.H. lock striker $229.86
Location: 9 Prev | Next Part: 63051700 *Qty: 1 L.H. lock striker $155.83
Location: 10 Prev | Next Part: 61496200 *Qty: 1 L.H. striker rod -Not for GD $14.00
Location: 10 Prev | Next Part: 61532900 *Qty: 1 R.H. striker rod -Valid for GD $10.87
Location: 11 Prev | Next Part: 64454600 *Qty: 1 R.H. lateral insulating Call
Location: 11 Prev | Next Part: 64454000 *Qty: 1 L.H. lateral insulating $145.69
Location: 12 Prev | Next Part: 64641700 *Qty: 1 Adhesive polyurethan -L. mm 1000 $61.47
Location: 12 Prev | Next Part: 64454200 *Qty: 1 Adhesive polyurethan -L. mm 2000 $20.84
Location: 13 Prev | Next Part: 64454300 *Qty: 1 Central upper insulating $49.21
Location: 14 Prev | Next Part: 64685400 *Qty: 1 Hinge $930.67
Location: 15 Prev | Next Part: 104030 *Qty: 4 Nut $0.90
Location: 16 Prev | Next Part: 12642024 *Qty: 4 Washer $0.90
Location: 17 Prev | Next Part: 64687200 *Qty: 2 Lower spacer $7.18
Location: 18 Prev | Next Part: 62764900 *Qty: 3 Washer $0.90
Location: 19 Prev | Next Part: 63671500 *Qty: 2 Stabilus $72.84
Location: 20 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 21 Prev | Next Part: 12643778 *Qty: 4 Washer $0.90
Location: 21 Prev | Next Part: 10615474 *Qty: 4 Washer $0.90
Location: 22 Prev | Next Part: 10902287 *Qty: 4 Screw $0.95
Location: 23 Prev | Next Part: 61501200 *Qty: 2 Warning light switch Call
Location: 24 Prev | Next Part: 64441000 *Qty: 1 Bonnet gasket $54.63
Location: 25 Prev | Next Part: 61497100 *Qty: 1 Open bonnet cable $46.30
Location: 26 Prev | Next Part: 14084211 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 64454800 *Qty: 1 Sound insulation, central lower $61.47
Location: 28 Prev | Next Part: 62764700 *Qty: 3 Screw $0.90
Location: 29 Prev | Next Part: 153956 *Qty: 1 R.H. Zincfoil $4.55
Location: 29 Prev | Next Part: 153957 *Qty: 1 L.H. Zincfoil $4.55
Location: 30 Prev | Next Part: 64453700 *Qty: 1 R.H. net for air intake $122.05
Location: 30 Prev | Next Part: 64454100 *Qty: 1 L.H. net for air intake $122.05
Location: 31 Prev | Next Part: 60795400 *Qty: 1 Front mark with fixing $240.42
Location: 32 Prev | Next Part: 64386000 *Qty: 48 Rivet $0.90
Location: 33 Prev | Next Part: 15896470 *Qty: 1 Nut $0.90
Location: 34 Prev | Next Part: 149951 *Qty: 2 Washer Superseded
Location: 35 Prev | Next Part: 14084111 *Qty: 3 Nut $0.90
Location: 36 Prev | Next Part: 12625224 *Qty: 8 Washer $0.90
Location: 37 Prev | Next Part: 63094500 *Qty: 1 R.H. bracket for lock $71.28
Location: 37 Prev | Next Part: 63094600 *Qty: 1 L.H. bracket for lock $71.28
Location: 38 Prev | Next Part: 62770900 *Qty: 2 Screw $3.86
Location: 39 Prev | Next Part: 63114100 *Qty: 1 Lever $64.08
Location: 40 Prev | Next Part: 63435000 *Qty: 1 Hook $1.10
Location: 41 Prev | Next Part: 127494 *Qty: 6 Washer $0.90
Location: 42 Prev | Next Part: 10902221 *Qty: 6 Screw $1.31
Location: 43 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 44 Prev | Next Part: 12643724 *Qty: 8 Washer $0.90
Location: 45 Prev | Next Part: 62781300 *Qty: 1 Gasket connection pipe Call
Location: 46 Prev | Next Part: 64454500 *Qty: 1 L.H. front insulating $49.21
Location: 46 Prev | Next Part: 64454400 *Qty: 1 R.H. front insulating $49.21
Location: 47 Prev | Next Part: 63117400 *Qty: 1 Bushing $6.65
Location: 48 Prev | Next Part: 14496701 *Qty: 4 Washer $0.90
Location: 49 Prev | Next Part: 64454200 *Qty: 1 Adhesive polyurethan $20.84
Location: 50 Prev | Next Part: 62764800 *Qty: 1 Drilled screw $1.60
Location: 51 Prev | Next Part: 16043211 *Qty: 8 Screw $0.90
Location: 52 Prev | Next Part: 12640624 *Qty: 6 Washer $0.90
Location: 53 Prev | Next Part: 102948 *Qty: 6 Nut $0.90
Location: 54 Prev | Next Part: 60276805 *Qty: 1 Dowel $1.81
Location: 55 Prev | Next Part: 60276607 *Qty: 1 Clamp $42.87
Location: 56 Prev | Next Part: 63434400 *Qty: 1 Bushing $0.90
Location: 57 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 58 Prev | Next Part: 14578283 *Qty: 2 Spring $0.90
Location: 59 Prev | Next Part: 64537400 *Qty: 4 Pin for stabilus $25.57

* Quantity shown indicates the number of pieces used in the diagram.
