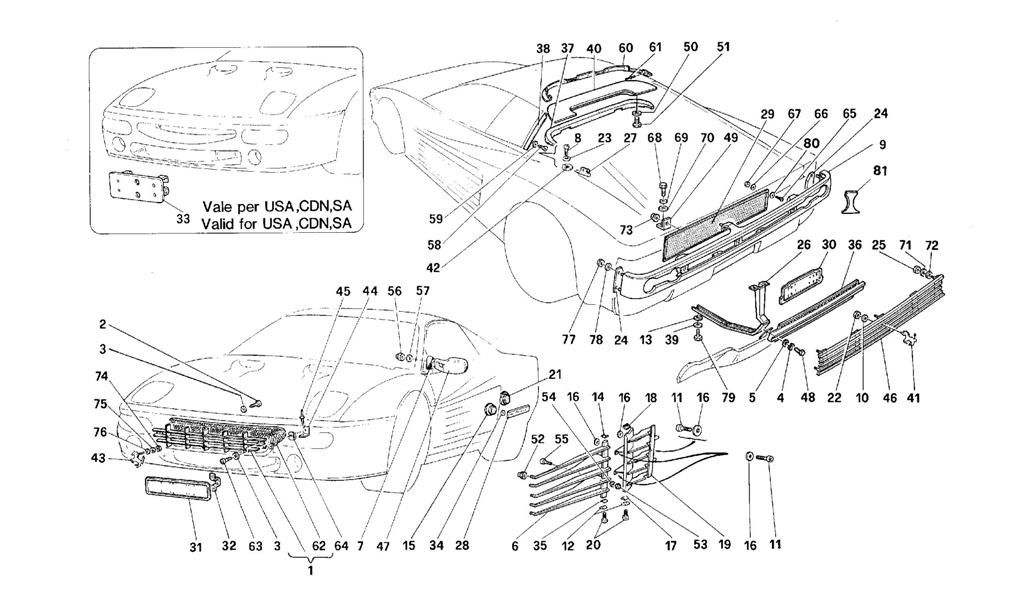

EXTERNAL FINISHING

Go to Split View

EXTERNAL FINISHING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64443000 *Qty: 1 Front grill Call
Location: 2 Prev | Next Part: 15643978 *Qty: 10 Screw $0.90
Location: 3 Prev | Next Part: 62767100 *Qty: 5 Washer $0.90
Location: 4 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 5 Prev | Next Part: 12643778 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 61575300 *Qty: 1 R.H. door grill $1,170.85
Location: 6 Prev | Next Part: 61575400 *Qty: 1 L.H. door grill $1,749.76
Location: 7 Prev | Next Part: 61574500 *Qty: 1 R.H. bellow -Not for GD- $24.10
Location: 7 Prev | Next Part: 61574600 *Qty: 1 L.H. bellow -Not for GD- $24.10
Location: 7 Prev | Next Part: 61575100 *Qty: 1 R.H. bellow -Valid for GD- $28.71
Location: 7 Prev | Next Part: 61575200 *Qty: 1 L.H. bellow -Valid for GD- $28.71
Location: 8 Prev | Next Part: 14305527 *Qty: 2 Screw $0.90
Location: 9 Prev | Next Part: 64678200 *Qty: 1 Rear connecting panel compl. $1,870.98
Location: 10 Prev | Next Part: 62767100 *Qty: 2 Washer $0.90
Location: 11 Prev | Next Part: 14305382 *Qty: 18 Screw $2.14
Location: 12 Prev | Next Part: 61488900 *Qty: 4 Special washer $0.90
Location: 13 Prev | Next Part: 12643770 *Qty: 1 Washer $0.90
Location: 14 Prev | Next Part: 61579400 *Qty: 1 R.H. upper gasket fixing door grill $1.50
Location: 14 Prev | Next Part: 61579500 *Qty: 1 L.H. upper gasket fixing door grill Call
Location: 15 Prev | Next Part: 62767200 *Qty: 2 Plug Call
Location: 16 Prev | Next Part: 12643778 *Qty: 18 Washer $0.90
Location: 17 Prev | Next Part: 61489200 *Qty: 1 R.H. lower gasket fixing door grill Call
Location: 17 Prev | Next Part: 61489300 *Qty: 1 L.H. lower gasket fixing door grill Call
Location: 18 Prev | Next Part: 61489400 *Qty: 1 R.H. upper gasket fixing door grill Call
Location: 18 Prev | Next Part: 61489500 *Qty: 1 L.H. upper gasket fixing door grill Call
Location: 19 Prev | Next Part: 61489600 *Qty: 1 R.H. side grill $1,981.66
Location: 19 Prev | Next Part: 61489700 *Qty: 1 L.H. side grill $1,693.71
Location: 20 Prev | Next Part: 14441582 *Qty: 4 Screw $3.97
Location: 21 Prev | Next Part: 62773400 *Qty: 2 Plug Call
Location: 22 Prev | Next Part: 61002200 *Qty: 2 Nut $0.90
Location: 23 Prev | Next Part: 12643778 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 64472000 *Qty: 2 Spacer $23.82
Location: 25 Prev | Next Part: 15896470 *Qty: 6 Nut $0.90
Location: 26 Prev | Next Part: 63101800 *Qty: 2 Grill bracket $71.91
Location: 27 Prev | Next Part: 61576700 *Qty: 1 R.H. pin $41.94
Location: 27 Prev | Next Part: 61576800 *Qty: 1 L.H. pin $41.94
Location: 28 Prev | Next Part: 20043105 *Qty: 2 Pininfarina badge $109.35
Location: 29 Prev | Next Part: 61490300 *Qty: 1 Net for engine air exhaust Call
Location: 30 Prev | Next Part: 63022800 *Qty: 1 Rear plate holder -Not for USA, CDN, SA, AUS $52.71
Location: 30 Prev | Next Part: 63465400 *Qty: 1 Rear plate holder -Valid for AUS $33.81
Location: 30 Prev | Next Part: 63025500 *Qty: 1 Rear plate holder -Valid for USA, CDN, SA $41.32
Location: 31 Prev | Next Part: 61536900 *Qty: 1 Front plate holder -Valid for I, J Call
Location: 31 Prev | Next Part: 63465000 *Qty: 1 Front plate holder -Valid for AUS $38.48
Location: 31 Prev | Next Part: 63024400 *Qty: 1 Front plate holder -Not for I, AUS, USA, CDN, SA, F, J $131.67
Location: 32 Prev | Next Part: 64456600 *Qty: 2 Bracket for front plate -Not as spare parts now -Replaced by 63025300 -Valid for USA, CDN, SA Call
Location: 32 Prev | Next Part: 64442200 *Qty: 2 Bracket for plate -Not for USA, CDN, SA $20.30
Location: 33 Prev | Next Part: 63025300 *Qty: 1 Front plate holder -Valid for USA, CDN, SA $114.04
Location: 34 Prev | Next Part: 60324506 *Qty: 4 Spring for pins Superseded
Location: 35 Prev | Next Part: 61579600 *Qty: 1 R.H. lower gasket fixing door grill Call
Location: 35 Prev | Next Part: 61579700 *Qty: 1 L.H. lower gasket fixing door grill Call
Location: 36 Prev | Next Part: 63021800 *Qty: 1 Rear underboby grill Call
Location: 37 Prev | Next Part: 61499900 *Qty: 1 Gasket Call
Location: 38 Prev | Next Part: 61491100 *Qty: 2 Gasket $17.31
Location: 39 Prev | Next Part: 127494 *Qty: 1 Washer $0.90
Location: 40 Prev | Next Part: 63077900 *Qty: 1 Outside rear window bracket $469.27
Location: 41 Prev | Next Part: 64739800 *Qty: 1 Rear horse $57.26
Location: 41 Prev | Next Part: 63338300 *Qty: 1 Rear horse -Not as spare parts now for F512M $59.89
Location: 42 Prev | Next Part: 61576900 *Qty: 1 L.H. bracket $18.67
Location: 42 Prev | Next Part: 61577000 *Qty: 1 R.H. bracket $18.67
Location: 43 Prev | Next Part: 63603800 *Qty: 1 Front horse $66.84
Location: 44 Prev | Next Part: 62799500 *Qty: 6 Net fix. bracket -Valid for CDN $14.69
Location: 45 Prev | Next Part: 60225901 *Qty: 1 Rivet -Valid for CDN $1.22
Location: 46 Prev | Next Part: 64618700 *Qty: 1 Grill Call
Location: 47 Prev | Next Part: 63065000 *Qty: 1 R.H. outside mirror -Valid for USA and CDN $2,245.69
Location: 47 Prev | Next Part: 63065100 *Qty: 1 L.H. outside mirror -Valid for USA and CDN $1,125.90
Location: 47 Prev | Next Part: 63067700 *Qty: 1 R.H. outside mirror -Valid for GB and ZA $1,125.90
Location: 47 Prev | Next Part: 63067800 *Qty: 1 L.H. outside mirror -Valid for GB and ZA $1,096.15
Location: 47 Prev | Next Part: 63091100 *Qty: 1 R.H. outside mirror -Valid for AUS $1,186.33
Location: 47 Prev | Next Part: 63091200 *Qty: 1 L.H. outside mirror -Valid for AUS $1,186.33
Location: 47 Prev | Next Part: 63114900 *Qty: 2 Mirror motor $43.97
Location: 47 Prev | Next Part: 63064800 *Qty: 1 R.H. outside mirror -Not for USA, CDN, GB, AUS $2,188.78
Location: 47 Prev | Next Part: 63064900 *Qty: 1 L.H. outside mirror -Not for USA, CDN, GB, ZA, AUS $2,973.36
Location: 48 Prev | Next Part: 10902387 *Qty: 2 Screw $1.08
Location: 49 Prev | Next Part: 63691000 *Qty: 1 Bracket $1.32
Location: 50 Prev | Next Part: 12643770 *Qty: 4 Washer $0.90
Location: 51 Prev | Next Part: 10902424 *Qty: 4 Screw $0.90
Location: 52 Prev | Next Part: 169180 *Qty: 10 Nut $0.90
Location: 53 Prev | Next Part: 14051849 *Qty: 4 Nut $0.90
Location: 54 Prev | Next Part: 10519377 *Qty: 4 Washer $0.90
Location: 55 Prev | Next Part: 20286704 *Qty: 4 Screw $1.68
Location: 56 Prev | Next Part: 15896214 *Qty: 6 Nut $0.90
Location: 57 Prev | Next Part: 10519424 *Qty: 6 Washer Call
Location: 58 Prev | Next Part: 15908478 *Qty: 6 Screw Call
Location: 59 Prev | Next Part: 62823200 *Qty: 6 Washer $0.90
Location: 60 Prev | Next Part: 63112000 *Qty: 1 Angle piece for rear window $67.42
Location: 61 Prev | Next Part: 60609700 *Qty: 7 Rivet $0.90
Location: 62 Prev | Next Part: 64443100 *Qty: 1 Net $74.95
Location: 63 Prev | Next Part: 15688178 *Qty: 6 Screw $2.24
Location: 64 Prev | Next Part: 62764200 *Qty: 2 Spring $0.90
Location: 65 Prev | Next Part: 10902287 *Qty: 4 Screw $0.92
Location: 66 Prev | Next Part: 10615274 *Qty: 6 Washer $0.90
Location: 67 Prev | Next Part: 10794014 *Qty: 6 Nut $0.90
Location: 68 Prev | Next Part: 10902287 *Qty: 1 Screw $0.92
Location: 69 Prev | Next Part: 10615476 *Qty: 1 Washer $0.90
Location: 70 Prev | Next Part: 12643778 *Qty: 1 Washer $0.90
Location: 71 Prev | Next Part: 127493 *Qty: 6 Washer Superseded
Location: 72 Prev | Next Part: 12638177 *Qty: 6 Washer Superseded
Location: 73 Prev | Next Part: 13832101 *Qty: 2 Nut $0.90
Location: 74 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 75 Prev | Next Part: 127942 *Qty: 2 Washer $5,529.82
Location: 76 Prev | Next Part: 10519224 *Qty: 2 Washer $0.90
Location: 77 Prev | Next Part: 14084211 *Qty: 6 Nut $0.90
Location: 78 Prev | Next Part: 14496424 *Qty: 6 Washer Superseded
Location: 79 Prev | Next Part: 10902424 *Qty: 1 Screw $0.90
Location: 80 Prev | Next Part: 12642877 *Qty: 6 Washer $0.90
Location: 81 Prev | Next Part: 64686200 *Qty: 2 Rear lights moulding $73.59

* Quantity shown indicates the number of pieces used in the diagram.
