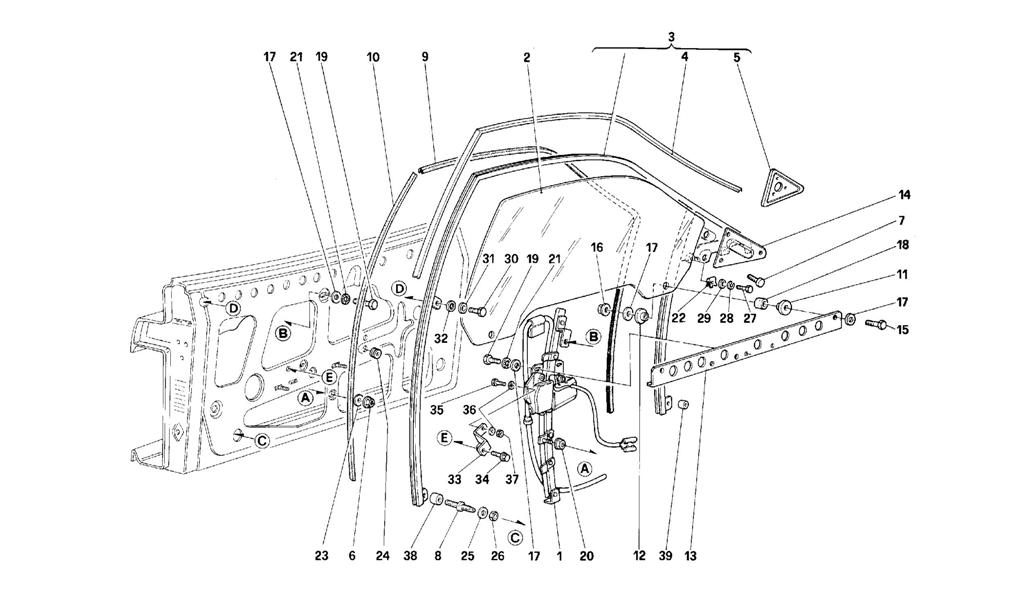

DOOR - POWER WINDOW

Go to Split View

DOOR - POWER WINDOW

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63096100 *Qty: 1 R.H. window regulator $968.32
Location: 1 Prev | Next Part: 63096200 *Qty: 1 L.H. window regulator $968.32
Location: 2 Prev | Next Part: 61533600 *Qty: 1 L.H. glass $728.60
Location: 2 Prev | Next Part: 61533700 *Qty: 1 R.H. glass Call
Location: 3 Prev | Next Part: 63057100 *Qty: 1 R.H. frame work complete $2,159.00
Location: 3 Prev | Next Part: 63057200 *Qty: 1 L.H. frame work complete $2,170.40
Location: 4 Prev | Next Part: 61548500 *Qty: 1 Gasket for R.H. door $230.98
Location: 4 Prev | Next Part: 61548600 *Qty: 1 Gasket for L.H. door $230.98
Location: 5 Prev | Next Part: 61573900 *Qty: 1 Support for R.H. external rear view mirror $330.93
Location: 5 Prev | Next Part: 61574000 *Qty: 1 Support for L.H. external rear view mirror $330.93
Location: 6 Prev | Next Part: 101139 *Qty: 2 Nut $0.90
Location: 7 Prev | Next Part: 61568600 *Qty: 6 Button Call
Location: 8 Prev | Next Part: 62771300 *Qty: 4 Column $10.72
Location: 9 Prev | Next Part: 61509800 *Qty: 2 Run channel $113.81
Location: 10 Prev | Next Part: 61509900 *Qty: 2 Rear run channel $103.84
Location: 11 Prev | Next Part: 62106600 *Qty: 4 Inner bush $0.90
Location: 12 Prev | Next Part: 62106700 *Qty: 4 External bush $0.90
Location: 13 Prev | Next Part: 63108400 *Qty: 1 R.H. glass base $28.91
Location: 13 Prev | Next Part: 63108500 *Qty: 1 L.H. glass base $28.91
Location: 14 Prev | Next Part: 63111200 *Qty: 1 Cover to fix R.H. mirror Call
Location: 14 Prev | Next Part: 63111300 *Qty: 1 Cover to fix L.H. mirror Call
Location: 15 Prev | Next Part: 10902424 *Qty: 4 Screw $0.90
Location: 16 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 17 Prev | Next Part: 12643724 *Qty: 14 Washer $0.90
Location: 18 Prev | Next Part: 62766200 *Qty: 4 Bushing Call
Location: 19 Prev | Next Part: 10902221 *Qty: 6 Screw $1.31
Location: 20 Prev | Next Part: 14084411 *Qty: 2 Nut $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 62766300 *Qty: 4 Spring $0.97
Location: 23 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 103549 *Qty: 2 Cable grommet $0.90
Location: 25 Prev | Next Part: 12640624 *Qty: 4 Washer $0.90
Location: 26 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 27 Prev | Next Part: 10902221 *Qty: 6 Screw $1.31
Location: 28 Prev | Next Part: 127494 *Qty: 6 Washer $0.90
Location: 29 Prev | Next Part: 12640624 *Qty: 6 Washer $0.90
Location: 30 Prev | Next Part: 10902111 *Qty: 2 Screw Superseded
Location: 31 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 32 Prev | Next Part: 12640624 *Qty: 2 Washer $0.90
Location: 33 Prev | Next Part: 63951200 *Qty: 2 Bracket $6.30
Location: 34 Prev | Next Part: 13836371 *Qty: 2 Screw $1.70
Location: 35 Prev | Next Part: 10977511 *Qty: 2 Screw $0.90
Location: 36 Prev | Next Part: 12638124 *Qty: 4 Washer $0.90
Location: 37 Prev | Next Part: 169180 *Qty: 2 Nut $0.90
Location: 38 Prev | Next Part: 64536300 *Qty: 2 Spacer $1.60
Location: 39 Prev | Next Part: 64536200 *Qty: 2 Spacer $2.09

* Quantity shown indicates the number of pieces used in the diagram.
