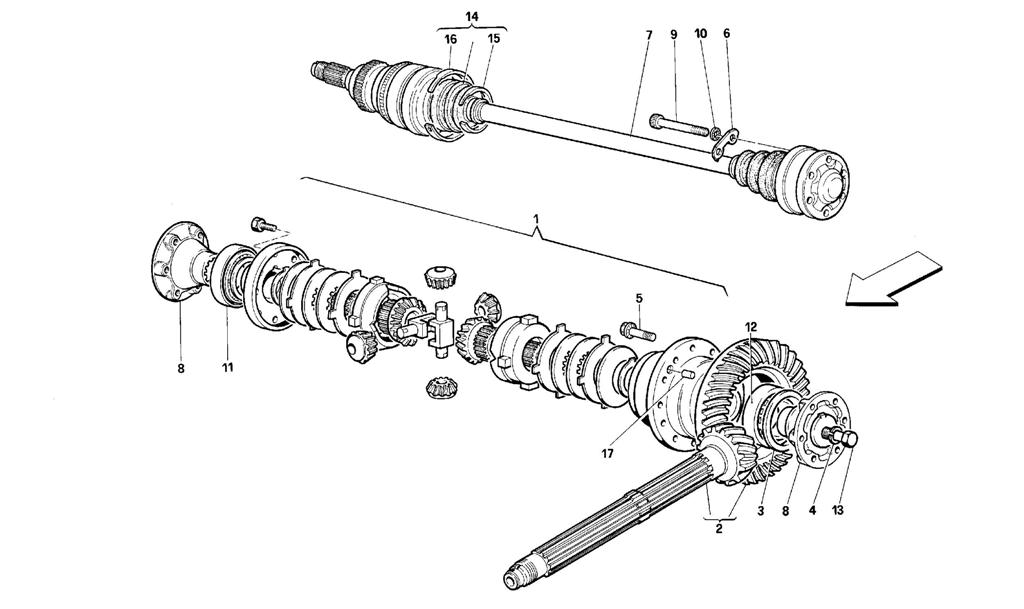

DIFFERENTIAL AND AXLE SHAFTS

DIFFERENTIAL AND AXLE SHAFTS

Location Part # Quantity* Description Price Add To Cart
1 155099R 1 Differential, complete Unavailable
2 168969 1 Crown pignon (14/45) -Valid from gearbox Nr. 397 $13,138.77
3 132931 1 Ditto thickness mm. 2,95 $82.82
3 103426 1 Ditto thickness mm. 3,20 $191.23
3 132923 1 Ditto thickness mm. 2,45 $89.77
3 132924 1 Ditto thickness mm. 2,50 $86.97
3 132925 1 Ditto thickness mm. 2,55 $89.77
3 132926 1 Ditto thickness mm. 2,65 $91.31
3 132927 1 Ditto thickness mm. 2,70 $94.37
3 103422 1 Ditto thickness mm. 2,40 $89.77
3 132928 1 Ditto thickness mm. 2,75 $85.48
3 103423 1 Ditto thickness mm. 2,60 Unavailable
3 132929 1 Ditto thickness mm. 2,85 $153.93
3 103424 1 Ditto thickness mm. 2,80 Unavailable
3 132930 1 Ditto thickness mm. 2,90 $154.54
3 103425 1 Ditto thickness mm. 3,00 $89.77
4 153594 2 Washer $3.45
5 171275 12 Screw -Valid after stock exhaustion of 153710 $37.11
6 149415 6 Plate $2.35
7 165070 2 Axle shaft assy -Valid after stock exhaustion of 143082 $1,766.14
8 139898 2 Axle shaft securing flange $250.38
9 181910 12 Screw Superseded
10 160092 12 Washer $0.90
11 125390 1 Bearing for differential support for R.H. cover $202.29
12 101634 1 Bearing for differential support for L.H. cover $192.48
13 153593 2 Screw $6.50
14 70000867 2 Protection replacement set -Gearbox side Superseded
14 70000782 2 Protection replacement set -Wheel side Unavailable
15 154213 4 Little clamp $5.24
16 154214 4 Big clamp $8.72
17 13916370 2 Parallell pin Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
