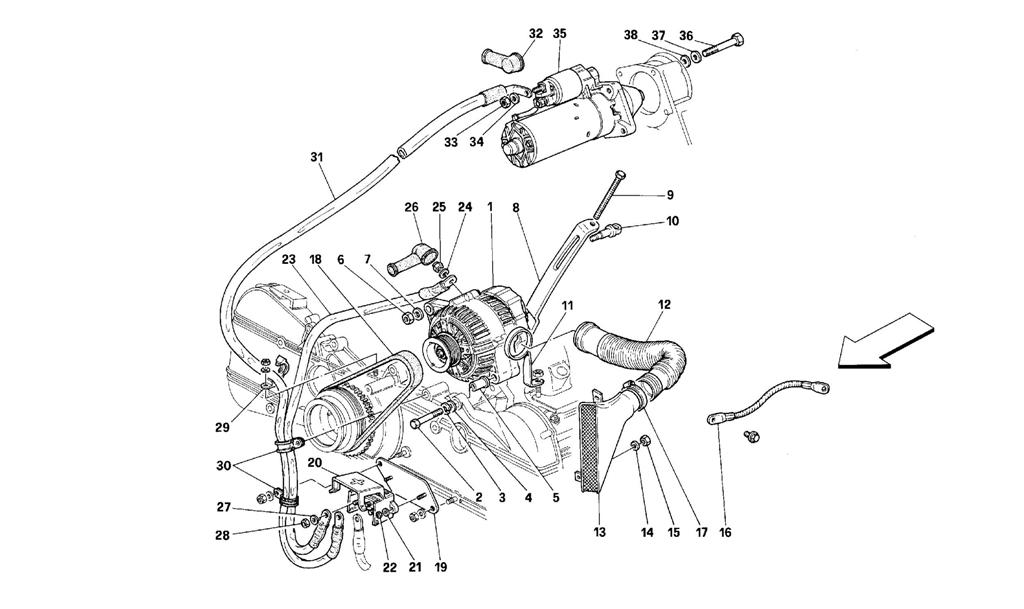

CURRENT GENERATOR

Go to Split View

CURRENT GENERATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157080 *Qty: 1 Complete generator $704.61
Location: 2 Prev | Next Part: 15971821 *Qty: 1 Screw $1.70
Location: 3 Prev | Next Part: 127497 *Qty: 1 Washer $0.90
Location: 4 Prev | Next Part: 12638601 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 152496 *Qty: 1 Bush $13.40
Location: 6 Prev | Next Part: 16104121 *Qty: 1 Nut Superseded
Location: 7 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 8 Prev | Next Part: 152509 *Qty: 1 Generator bracket $24.85
Location: 9 Prev | Next Part: 125668 *Qty: 1 Screw $1.87
Location: 10 Prev | Next Part: 152535 *Qty: 1 Pin $157.14
Location: 11 Prev | Next Part: 154911 *Qty: 1 Bracket $53.07
Location: 12 Prev | Next Part: 149870 *Qty: 1 Delivery pipe Call
Location: 13 Prev | Next Part: 149347 *Qty: 1 Conveyor $23.30
Location: 14 Prev | Next Part: 160957 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 16 Prev | Next Part: 155073 *Qty: 1 Engine ground $14.28
Location: 17 Prev | Next Part: 13000690 *Qty: 1 Clamp Call
Location: 18 Prev | Next Part: 199826 *Qty: 1 POLY V (PIRELLI) belt for generator $19.05
Location: 19 Prev | Next Part: 154055 *Qty: 1 Bracket $22.24
Location: 20 Prev | Next Part: 170114 *Qty: 1 Terminal box $47.65
Location: 21 Prev | Next Part: 12642877 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 23 Prev | Next Part: 154272 *Qty: 1 Cable from generator to terminal box $85.46
Location: 24 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 25 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 26 Prev | Next Part: 154803 *Qty: 1 Cap $6.50
Location: 27 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 28 Prev | Next Part: 147985 *Qty: 2 Nut $0.90
Location: 29 Prev | Next Part: 129544 *Qty: 1 Spring $2.39
Location: 30 Prev | Next Part: 10450690 *Qty: 2 Bracket $0.90
Location: 31 Prev | Next Part: 154273 *Qty: 1 Cable from terminal box to starting motor $214.67
Location: 32 Prev | Next Part: 124683 *Qty: 1 Cap $1.25
Location: 33 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 34 Prev | Next Part: 12625224 *Qty: 1 Washer $0.90
Location: 35 Prev | Next Part: 150523 *Qty: 1 Starting motor $861.06
Location: 36 Prev | Next Part: 16045621 *Qty: 3 Screw Superseded
Location: 37 Prev | Next Part: 11198070 *Qty: 3 Washer Superseded
Location: 38 Prev | Next Part: 10519624 *Qty: 3 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
