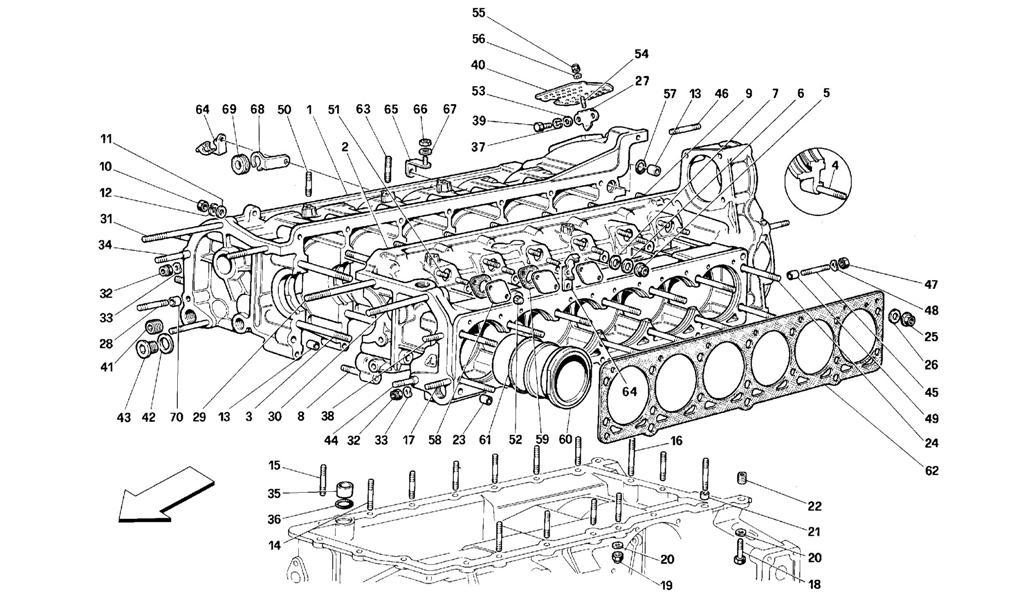

CRANKCASE

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
- 164639 1 Crankcase, complete $8,841.14
1 163661 1 R.H. semi-crankcase -Not as spare parts-With crankcase complete Unavailable
2 143849 1 L.H. semi-crankcase -Not as spare parts -With crankcase complete Unavailable
3 102687 14 Semi-crankcase securing stud $62.24
4 109539 1 Semi-crankcase securing stud $22.84
5 102693 15 Nut $39.30
6 102694 15 Washer $1.91
7 10517171 15 Washer Unavailable
8 13546635 3 Semi-crankcase securing stud $4.89
9 102689 9 Semi-crankcase securing stud $17.95
9 102690 1 Semi-crankcase securing stud $16.67
10 133988 13 Nut Unavailable
11 102695 13 Washer Unavailable
12 127497 13 Washer $0.90
13 102692 2 Semi-crankcase securing stud $8.53
14 13449624 12 Stud securing crankcase to gearbox $15.89
15 13449824 1 Stud $25.50
16 13450124 2 Stud $37.41
17 13543821 1 Stud Unavailable
18 11306934 2 Screw Unavailable
19 107314 2 Nut $12.81
19 102742 13 Nut Unavailable
20 12601474 18 Washer Unavailable
21 100052 1 Dowel $2.64
22 13526070 3 Heli-coil Unavailable
23 152327 4 Dowel $11.98
24 130646 28 Cyl. heads securing studs $40.80
25 126646 28 Nut $43.28
26 141064 28 Washer $3.13
27 124676 1 Plate with timing mark $4.97
28 13543624 1 Stud on dowel Unavailable
29 13970924 1 Stud $11.10
30 13970424 1 Stud $18.25
31 13970524 1 Stud $6.90
32 101139 10 Nut $0.90
33 12601374 10 Washer $0.90
34 13544321 3 Stud Superseded
35 121201 1 Dowel $6.29
36 123263 1 Seal ring $16.73
37 127493 2 Washer $0.90
38 13543424 1 Stud Unavailable
39 10977624 2 Screw Unavailable
40 147816 1 Cover for flywheel inspection slot $72.53
41 14326050 2 Plug for lubricating ports $1.66
41 10269850 1 Plug for lubricating ports Unavailable
41 14326150 1 Plug for lubricating ports Unavailable
42 10264560 2 Gasket Unavailable
43 10304611 2 Plug $4.53
44 13543724 1 Stud on dowel Unavailable
45 13544224 2 Stud on dowel $10.39
46 13544124 3 Stud Unavailable
47 16100821 5 Nut Unavailable
48 12601374 5 Washer $0.90
49 102704 2 Dowel $3.69
50 13541124 2 Stud Unavailable
51 11500020 24 Stud Unavailable
52 100044 24 Nut $0.90
53 10519377 2 Washer Unavailable
54 11500024 2 Stud for cover of flywheel inspection slot $3.29
55 100044 2 Nut $0.90
56 12601274 2 Washer $0.90
57 102743 1 Seal ring $1.79
58 102698 12 Cover $36.22
59 150191 12 Gasket $4.67
60 138519 12 Cylinder liner Unavailable
61 136902 12 Seal ring $25.50
62 151532 2 Gasket $853.68
63 13541324 2 Stud $2.21
64 129544 4 Spring $2.23
65 149694 1 Bracket $7.35
66 102741 1 Nut $0.90
67 12601274 1 Washer $0.90
68 124220 1 Bracket $188.85
69 10396580 1 Cable grommet $7.47
70 102704 2 Dowel $3.69

* Quantity shown indicates the number of pieces used in the diagram.
